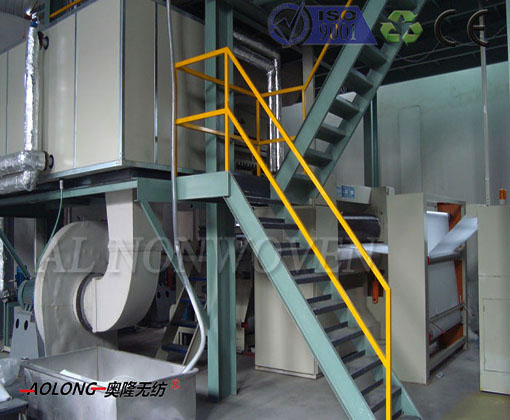

Single Beam PP Spunbond Nonwoven Fabric Production Line
This line is the professional manufacturing non-woven fabric equipment. Our company conjugates overseas advanced technology and domestic producing situation, gives a sober assessment of the situation, developed autonomously into the professional equipment. It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labour and widely compatibility andso on.
| MODEL NO. | AL-1600S | AL-2400S | AL-3200S |
| WIDTH | 1600mm | 2400mm | 3200mm |
FIBER DENIER
| <=2.3D | <=2.3D | <=2.3D |
| FABRIC GSM | 9~250g/㎡ | 9~250g/㎡ | 9~250g/㎡ |
PATTERN
| cross , diamend, line | diamond, cross, line | diamond, cross, line |
SCREW DIA.
| 130, 30:1 | 150, 30:1 | 170, 30:1 |
MACHINE SPEED | 0~150m/min
| 0~150m/min | 0~150m/min |
CAPACITY
| 1500T
| 2400T | 3000T
|
| POWER INPUT | 200KVA
| 250KVA | 300KVA
|
POWER CONSUMPTION
| 130KW | 180KW | 200KW
|
MACHINE SIZE (L*W*H) | 18M*10M*13M
| 20M*10.5M*13M | 20M*10M*13M |
CONTAINERS REQUIREMENT | 4X40'HQ | 5X40'HQ | 6X40'HQ |
| Machine can be customized and tested before they will be deliveried. |
