Equipment Application:

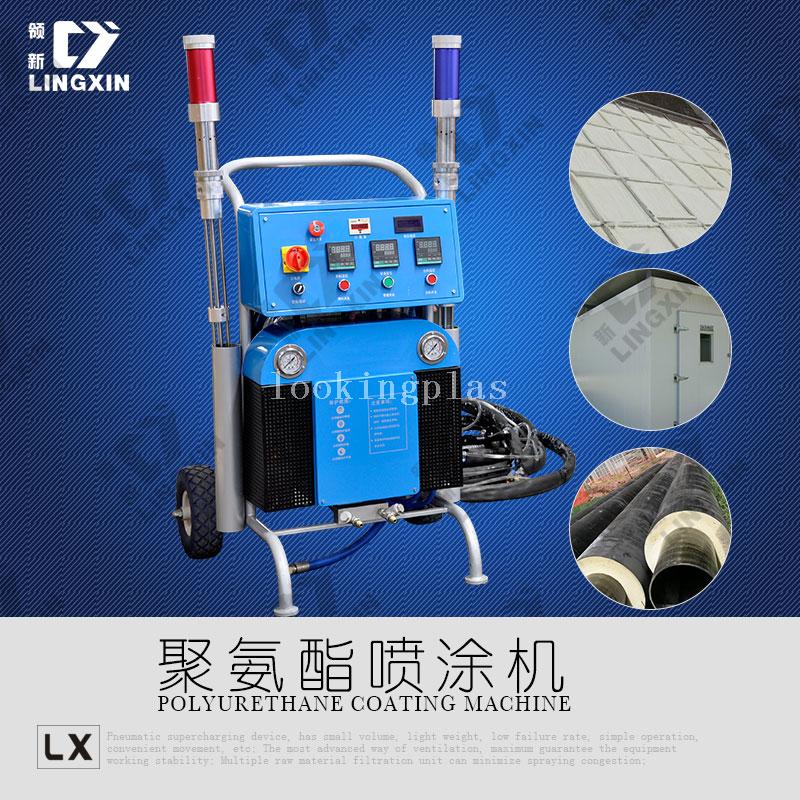

High-pressure Polyurethane Spraying and Pouring Equipment
喷涂:建筑外墙喷涂、内墙喷涂、房顶喷涂、冷库喷涂、船舱喷涂、车厢
喷涂、冷藏车喷涂、罐体喷涂、屋顶喷涂、工业防腐等;
Spraying: Building exterior wall coating, interior wall coating, roof coating, cold storage
spraying, cabin spraying, carriage spraying, refrigerated truck spraying, tank body spraying,
rooftop spraying, anti-corrosive heat-insulating coatings, etc.
浇注:太阳能热水器、保温水箱、船舱、防盗门、冰箱、管道接头、产品
包装、公路建设、墙体隔音等;
Pouring: solar water heater, heat preservation water tank, the cabin, security doors,
refrigerator, pipe joint, packaging, highway construction, wall sound insulation, etc.
● 主要技术参数:
● Main Technical Parameter
电源: Three phase 380V 50Hz/60Hz
Power supply: three phase 380V 50Hz/60Hz
加热功率:11KW
Heat power: 11KW
驱动方式:气动
Driving mode: pneumatic
气源:0.5~0.8 MPa
Air source: 0.5~0.8 MPa
排气量:≥0.9m3/分钟
Air displacement: ≥0.9m3/min
原料输出量:3~8 kg/分钟
Raw material output: 3~8 kg/min
最大输出压力:11Mpa
Max. output pressure: 11Mpa
AB料输出比例:1:1
AB material output ratio: 1:1
最大输出距离:92米
Max. output distance: 92M
●设备优点:
Equipment advantage:
1、气动增压装置,具有体积小、重量轻、故障率低、操作简单、方便移动等特点;
1. Pneumatic pressurization device, small volume, light weight, low failure rate, simple operation, and convenient movement, etc.
2、国际最先进的换气方式,最大程度保证设备工作稳定性;
2. World’s most advanced air renewal method, maximally guarantee the equipment stability.
3、多重原料过滤装置能够最大限度的减少喷涂堵塞问题;
3. Multiple material filtering device, maximally reduce blocking issue.
4、多重漏电保护系统能够保护操作者的安全;
4. Multiple electric leakage protecting system to ensure operator’s safety
5、配备紧急开关系统,能够最快捷应对紧急情况发生;
5. Equipped with emergency switch system, which can quickly deal with emergency situation.
6、可靠强大的380V加热系统能够使原料迅速升温到理想状态,满足设备在寒冷地区正常施工;
6. Reliable and powerful 380V heating system make raw materials heated up quickly to ideal state and ensure normal construction in cold region.
7、数显计数系统能够及时准确了解原料消耗情况;
7. Digital display counter system can timely and accurately get raw material consumption situation.
8、设备操作面板人性化设置,很容易就能掌握操作方式;
8. Humanized design operation panel, easy to master operation mode
9、最新款喷枪具有体积小、重量轻、故障率低等优点;
9. The latest spray gun has small volume, light weight, and low failure rate, etc.
