Our company absorbs latest technologies from both home and aboard for large diameter HDPE pipe production line and FR-PP pipe production line.It can produce large diameter 200-3200mm drainage pipe.The pipe is increasingly becoming a mainstream product for urban drainage system.It will gradually replace the steel pipes and cement pipes.
Introduction:

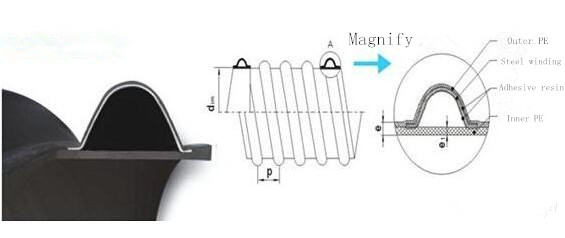

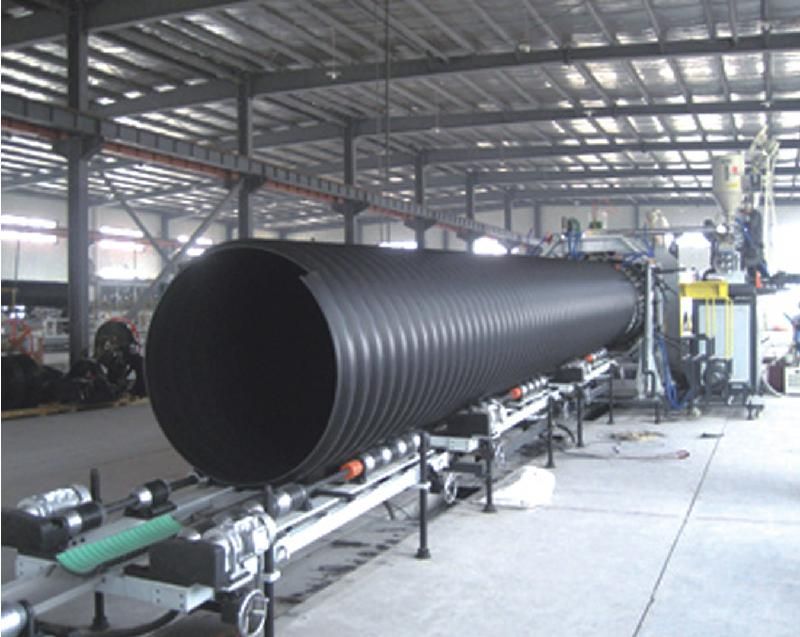

HDPE Large-Diameter Hollowness Wall Winding Pipe Production Line adopts advanced PLC computer control,high efficiency screw and composite die which includes pipe extruder, co-extruder, winding forming machine,cutting machine and relevant auxiliaries. This production line features high capacity,high efficiency and stable running. The finished pipe features high rigidity, high creep-resistance, convenient connection and economic use. This production line can make the following pipes: double wall corrugated winding pipe,double wall winding pipe and triple winding pipe.
Main Technicial Specifications:
Model | Spec. (mm) | Extruder | Total power | Output | Size (L×W×H)(m) |
Model | L/D Ratio | Main power | Heating power |
JBD800 | Φ200-800 | SJ90 | 30:1 | 75 | 30 | 230 | 260 | 10×21.6×2.6 |
SJ65 | 30:1 | 45 | 18 |
JBD1200 | Φ400-1200 | SJ90 | 34:1 | 110 | 30 | 300 | 500 | 10×23×2.7 |
SJ65 | 30:1 | 75 | 18 |
JBD1500 | Φ900-1500 | SJ90×30 | 30:1 | 110 | 30 | 450 | 600 | 28×18×6 |
SJ90×34 | 34:1 | 110 | 36 |
SJ65×30 | 30:1 | 75 | 18 |
JBD2200 | 1200-2200 | SJ120 | 30:1 | 185 | 60 | 500 | 700 | 30×20×7 |
SJ90 | 34:1 | 110 | 36 |
SJ65×30 | 30:1 | 75 | 18 |
JBD3000 | 2200-3200 | SJ150 | 30:1 | 280 | 80 | 650 | 800 | 32×20×8 |
SJ120 | 30:1 | 185 | 60 |
Technical data in the text are just for your reference
Advantages of this production line:
●Top quality by advanced technology
●High speed and excellent extrusion quality by adopting two sets of single screw extruders with high efficiency performance
●Unique design of composite die-head for large diameter winding pipe processing with production efficiency
●High quality of winding pipe produced by adopting the unique winding process for pipe forming
●Easy operation and high performance by adopting an advanced PLC control system
