Product Details:

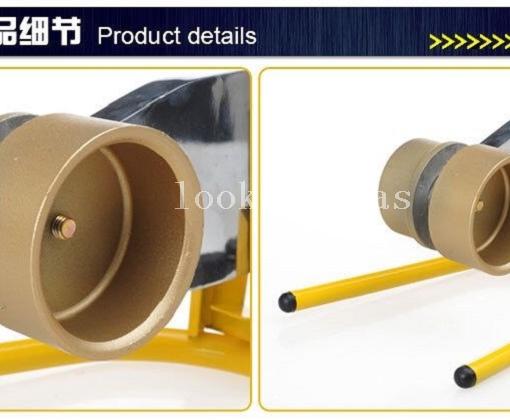

Socket fusion is a major welding method for small diameter pipes. Socket fusion welding machine is mainly used for welding pipes made from HDPE, PPR. Socket fusion welding involves the use of a fitting. The process operation is generally manual. The welding cycle consists of a heating phase and a cooling phase. In socket fusion welding, a socket mounted on a hot plate is used to heat the outside surface of the pipe being welded. On the opposite side of the hot plate, a spigot is used to heat the inside surface of the injection moulded fitting.

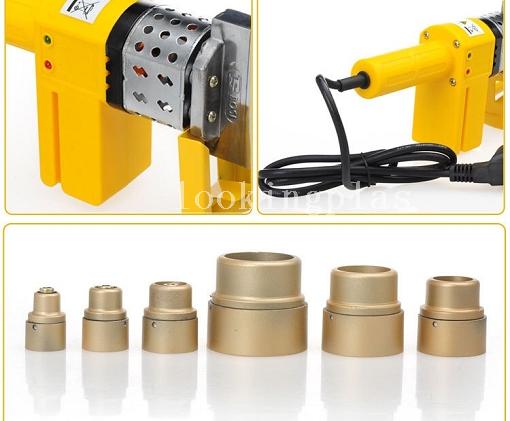

QING CHEN YU brand socket fusion welding machine are practical, easy to handle and safe, the welding machine is available with an adjustable electronic thermoregulator (TE), or with a fixed electronic thermostat (TFE).
This new TFE control system features a new self-diagnostic device, provided with an alarm, which would alert the operator in case of anomaly; at the same time, the heating element would switch off automatically. Thanks to an algorithm PID microcontroller, combined with a platinum sensor, the temperature control system can react faster to the external temperature fluctuations, and guarantee higher reliability and longer durability.

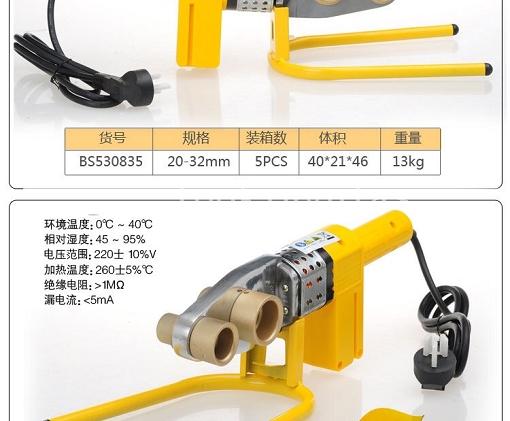

Product name | Socket fusion welding machine for HDPE pipe & PPR pipe |
Model | 20-32mm | 20-63mm | 75-110mm |
Welding range | 20mm, 25mm, 32mm | 20mm,25mm,32mm, 40mm,50mm,63mm | 75mm, 90mm, 110mm |
Power supply | 220/230V,50/60Hz | 220/230V,50/60Hz | 220/230V,50/60Hz |
Absorbed Power | 600W | 800W | 1500W |
Working Temperature | 260℃±10% | 260℃±10% | 260℃&±10% |

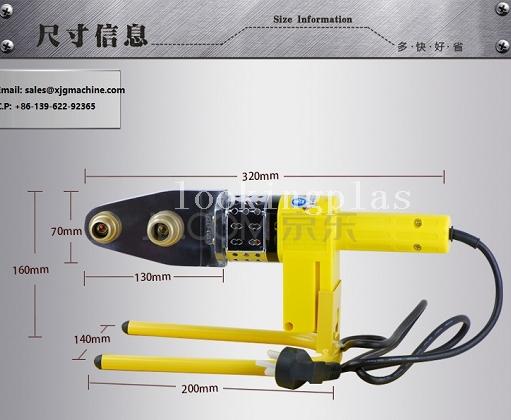

Packing Dimension | 115 x 50 x 320 mm | 175 x 50 x 360 mm | 175 x 50 x 395 mm |
Weight: | 1.75kgs | 1.82kgs | 3.16kgs |
Samples available | Free sample available if small quantity need. |
Packing method | Cartons |
MOQ | 5PCS for each model |
Production lead time | Depending on the order quantity. Normally about 20 days for a 20ft container |
Warranty time | 5 years for normal using |
Payment term | T/T or LC at sight |
FOB loading port | Ningbo or Shanghai China |
Place of origin | China
|
