Product Application
1.Material:PP chip
2.Weight range:10-100g/m2
3.Fabric usage:Medical applicant,shopping bag,packing,operation suit,face mask,baby diaper.etc

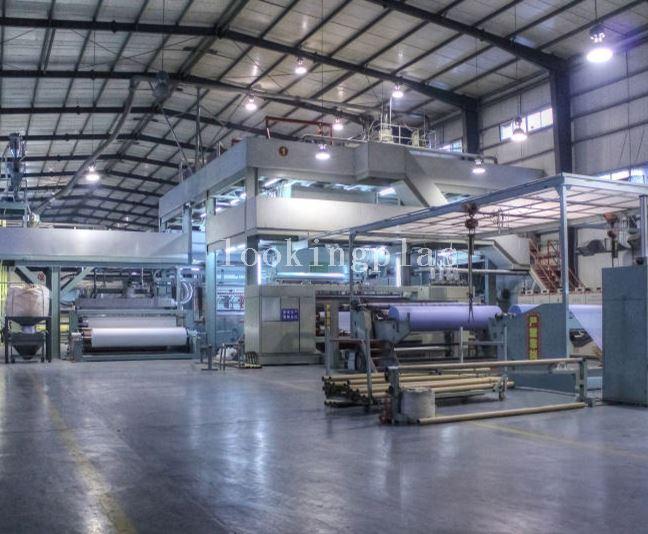

A.General information for SMS fabric making machine
Model | HHM-1.6SMS | HHM-2.4SMS | HHM-3.2SMS | HHM-4.0SMS | HHM-4.8SMS |
Effective Width | 1.6M | 2.4M | 3.2M | 4.0M | 4.8M |
Weight Range | 10-100G/M2 | 10-100G/M2 | 10-100G/M2 | 10-100G/M2 | 10-100G/M2 |
Output per Day | 6-10Ton | 10-15Ton | 12-20Ton | 15-25Ton | 18-30Ton |
Machine Speed | ≦350m/min | ≦350m/min | ≦350m/min | ≦350m/min | ≦350m/min |
Transformer Capacity | ≈800KVA | ≈1250KVA | ≈1600KVA | ≈2000KVA | ≈1000+1250KVA |
Power Consumption | 1200˚-1600˚/Ton | 1200˚-1600˚/Ton | 1200˚-1600˚/Ton | 1200˚-1600˚/Ton | 1200˚-1600˚/Ton |
Machine Size(L*W*H) | 35M*18M*12M | 35M*22M*12M | 35M*25M*12M | 35M*28M*12M | 35M*31M*12M |
B.Parts of spunbonded nonwoven fabric production line:
Recycle extruder---->Main extruder---->Filter---->Metering pump---->
Monomer suction device--->Spinning box(ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->
Calender---->Winder---->Slitter
C.Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->
Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product
D.Parts of Melt blown nonwoven fabric production line:
Main extruder---->Filter---->Metering pump---->Air heating system---->
Melt blown sprayer(ENKA sprayer)---->Web former---->Winder---->Slitter
E.Melt blown process and technical flow chart:
Raw material----> Melting---->Filtering---->Measuring ---->Air heating---->
Spraying---->Web forming---->Winding----> Cutting---->Final product
Name: Vacuum feeder and dosing system
Brand: HH SMS type
Original: China
Inhale PP material from stock bin to the hopper. then mix PP, and additives as color master batch,antioxidant,fire retardant with certain ratio
Name: Recycle Extruder
Brand: HH SMS type
Original: China
Recycle fabric offcut and pass it to main extruder
Name: Main Extruder
Brand: HH SMS type
Original: China
Squeeze and melt PP, and additives as color master batch,antioxidant,fire retardant .
Name: Filter
Brand: HH SMS type
Original: China
Get away impurity from pp material fusant.And the filter can change the filter screen without stopping the machine.
Name: Metering pump
Brand: HH SMS type
Original: China
Offer stable pressure to the pp material and press material to the spinning box.
Name:Spinning box
Brand: HH SMS type
Original: China
The PP fusant go through filter,fusant pipe,and metering pump transport the fusant into spinning container and fiber comes out from spinneret.
Name:Air heating system
Brand:HH SMS type
Original: China
Air heating system offer high pressure and high temperature air to the melt blown spinning box.
Name: Stretching machine
Brand: HH SMS type
Original: China
The distance of the two mirror inside the up stretching machine can be adjusted.
Everyone machine from HH has a logo on the down stretcher.

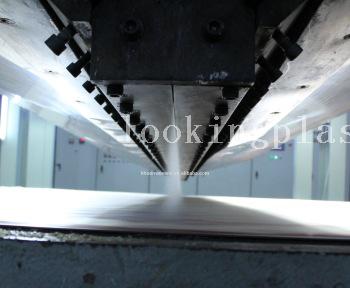

Name:Melt blown spinning box
Brand: ENKA/KASEN
Original: Germany/Japan
The PP fusant go through filter,fusant pipe,and metering pump transport the fusant into melt blown spinning box and short fiber spray to web conveyor belt or to spunbond fabric.
Name: Web former machine
Brand: HH SMS type
Original: China
Web adjusting system use motor to control.
Pre-roller use oil heating rather than electrical heating rod.
Use special design on the air passage of web former machine.
Name: Calender
Brand: HH SMS type
Original: China
Normally have two rollers,up roller is embossing roller,down roller is mirror roller.They press and heat the fiber from web former and make these fiber to be fabric.
Name: Winder
Brand:HH SMS type
Original: China
Use air shaft winding fabric from calender and when reaching certain number been set in system.Winder can change the fabric roller automatically.
Name: Slitter
Brand: HH SMS type
Original: China
Slitter have the unwinding and rewinding parts,the knives on the slitter can cut the fabric into certain width according to customers’ requirement.
E.Nonwoven fabric usage:
(1)Medical and health usage:operation suit,garment,face mask,diaper,sanitary napkin,disposable hygiene product.etc;
(2)Home decoration:shopping bag,wall covering fabric,table cloth,bed sheet,bedspread.etc;
(3)Lining for clothes or shoes:lining,adhesive interlining,shoe lining.etc;
(4)Agricultural usage:Protection cover,nursery cover.etc;
