Product Application
1.Material:PP chip
2.Weight range:10-100g/m2
3.Fabric usage:Medical applicant,shopping bag,packing,operation suit,face mask,baby diaper.etc

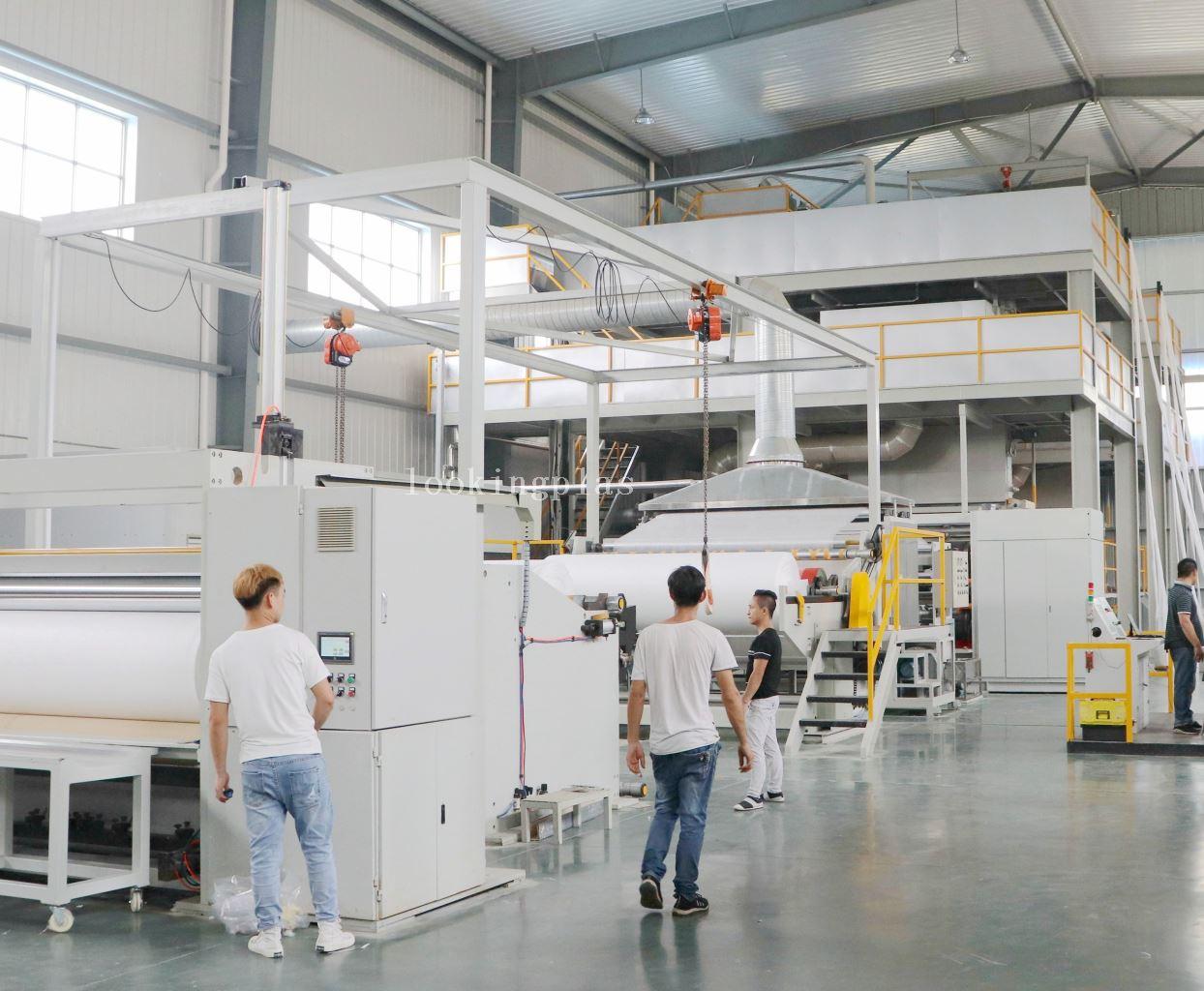

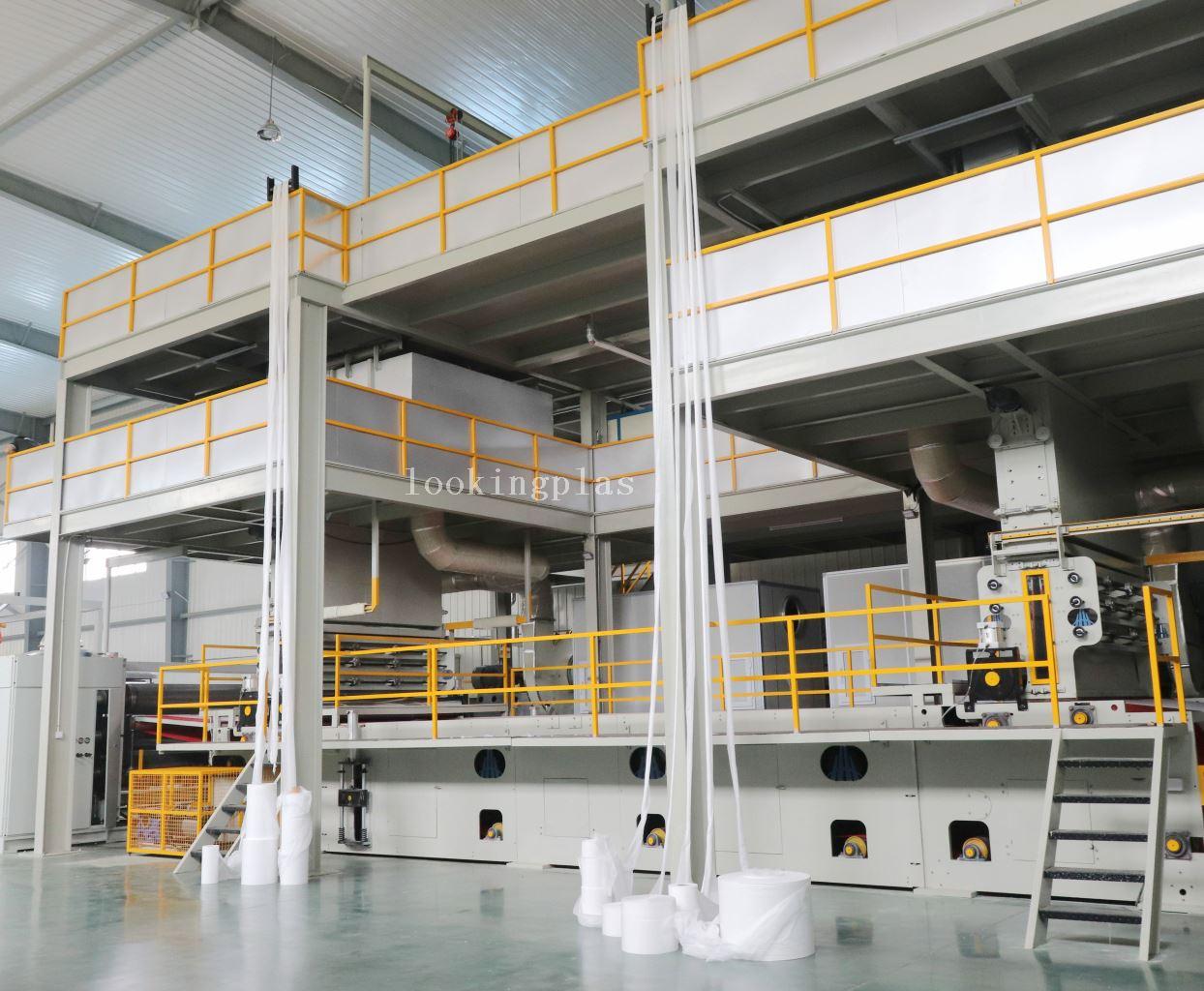

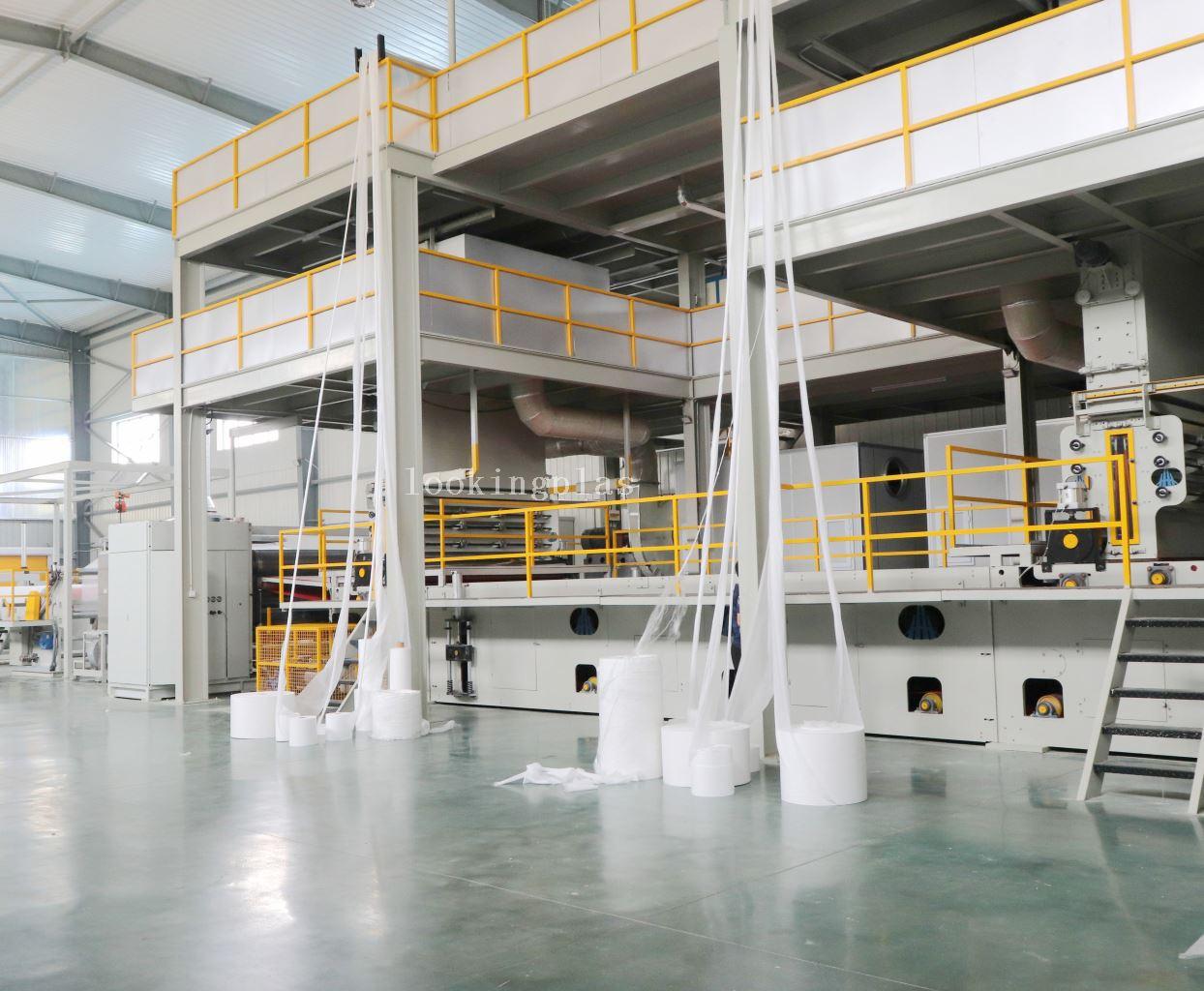

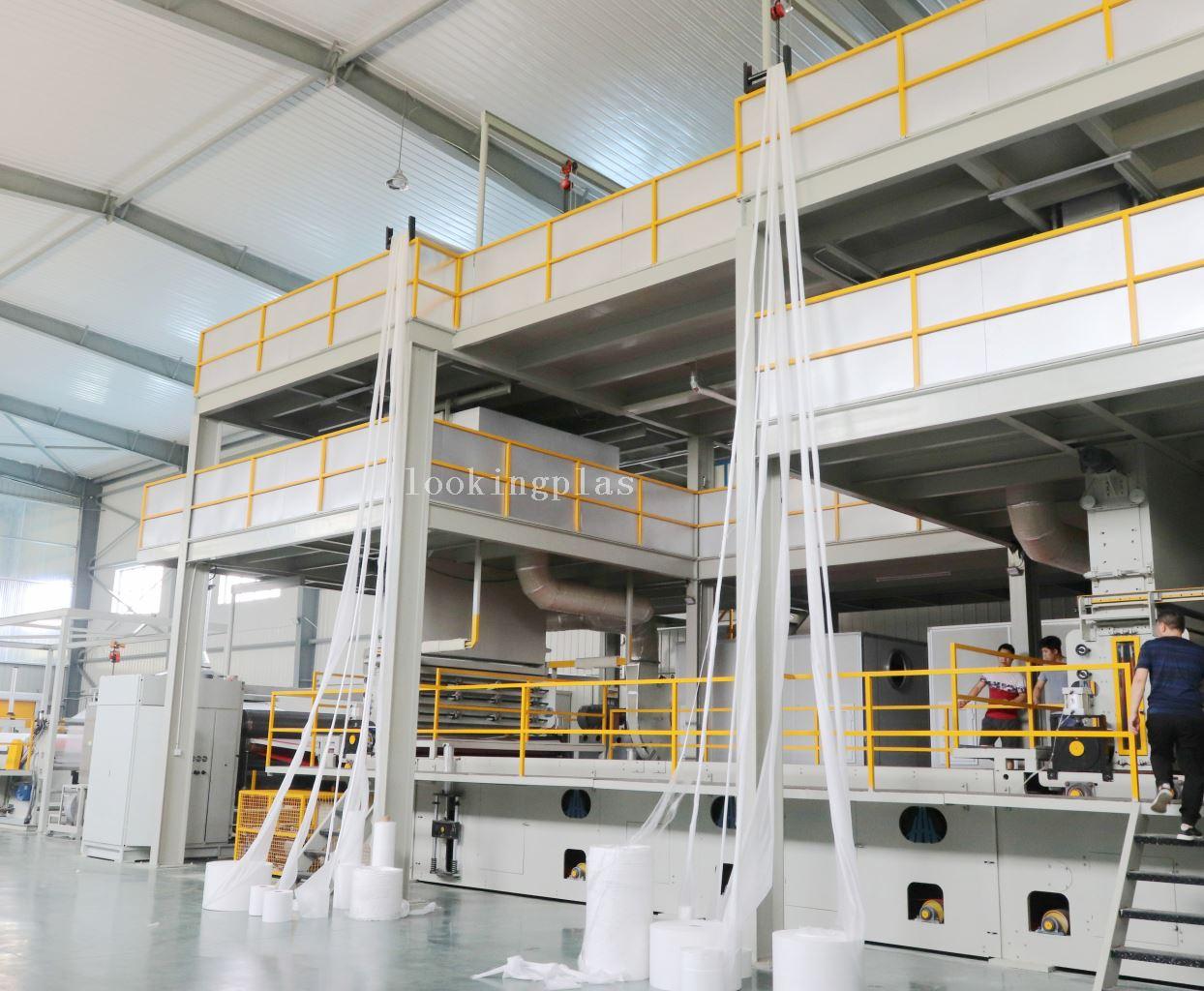

A.General information for spunbond nonwoven machinery
Model | HHM-1.6SS | HHM-2.4SS | HHM-3.2SS | HHM-4.0SS | HHM-4.8SS |
Effective Width | 1.6M | 2.4M | 3.2M | 4.0M | 4.8M |
Weight Range | 10-150G/M2 | 10-150G/M2 | 10-150G/M2 | 10-150G/M2 | 10-150G/M2 |
Output per Day | 6-10Ton | 10-15Ton | 12-20Ton | 15-25Ton | 18-30Ton |
Machine Speed | ≦350m/min | ≦350m/min | ≦350m/min | ≦350m/min | ≦350m/min |
Transformer Capacity | ≈400KVA | ≈500KVA | ≈800KVA | ≈1000KVA | ≈1250KVA |
Power Consumption | 700˚-900˚/Ton | 700˚-900˚/Ton | 700˚-900˚/Ton | 700˚-900˚/Ton | 700˚-900˚/Ton |
Machine Size(L*W*H) | 35M*12M*12M | 35M*15M*12M | 35M*17M*12M | 35M*19M*12M | 35M*21M*12M |
B.Parts of spunbonded nonwoven fabric production line:
Monomer suction device--->Spinning box(Changzhou/ENKA/KASEN spinneret)---->
Quenching air chamber---->Stretching device---->Web former---->
Calender---->Winder---->Slitter
C.Spunbonded process and technical flow chart:
Additive(Recycling off-cut fabric)---->Raw material----> Melting---->
Filtering---->Measuring ---->Spinning---->Cooling---->Stretching---->
Web forming---->Calendering---->Winding----> Cutting---->Final product
Name: Vacuum feeder and dosing system
Brand: HH S type
Original: China
Inhale PP material from stock bin to the hopper. then mix PP, and additives as color master batch,antioxidant,fire retardant with certain ratio
Name: Recycle Extruder
Brand: HH S type
Original: China
Recycle fabric offcut and pass it to main extruder
Name: Main Extruder
Brand: HH S type
Original: China
Squeeze and melt PP, and additives as color master batch,antioxidant,fire retardant .
Name: Filter
Brand: HH S type
Original: China
Get away impurity from pp material fusant.And the filter can change the filter screen without stopping the machine.
Name: Metering pump
Brand: HH S type
Original: China
Offer stable pressure to the pp material and press material to the spinning box.
Name:Spinning box
Brand: HH S type
Original: China
The PP fusant go through filter,fusant pipe,and metering pump transport the fusant into spinning container and fiber comes out from spinneret.
Name: Stretching machine
Brand: HH S type
Original: China
The distance of the two mirror inside the up stretching machine can be adjusted.
Everyone machine from HH has a logo on the down stretcher.
Name: Web former machine
Brand: HH S type
Original: China
Web adjusting system use motor to control.
Pre-roller use oil heating rather than electrical heating rod.
Use special design on the air passage of web former machine.
Name: Calender
Brand: HH S type
Original: China
Normally have two rollers,up roller is embossing roller,down roller is mirror roller.They press and heat the fiber from web former and make these fiber to be fabric.
Name: Winder
Brand:HH S type
Original: China
Use air shaft winding fabric from calender and when reaching certain number been set in system.Winder can change the fabric roller automatically.
Name: Slitter
Brand: HH S type
Original: China
Slitter have the unwinding and rewinding parts,the knives on the slitter can cut the fabric into certain width according to customers’ requirement.
E.Nonwoven fabric usage:
(1)Medical and health usage:operation suit,garment,face mask,diaper,sanitary napkin,disposable hygiene product.etc;
(2)Home decoration:shopping bag,wall covering fabric,table cloth,bed sheet,bedspread.etc;
(3)Lining for clothes or shoes:lining,adhesive interlining,shoe lining.etc;
(4)Agricultural usage:Protection cover,nursery cover.etc;
