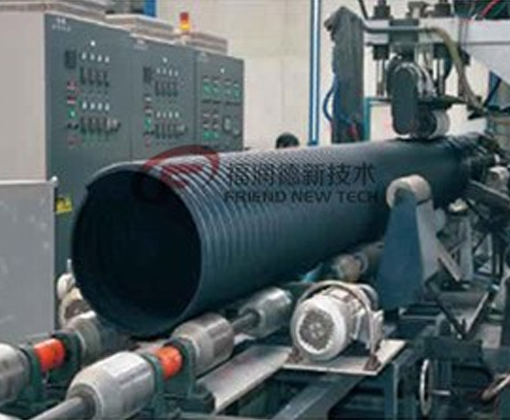

Description of Steel Reinforced PE Spiral Corrugated
Pipe Making Machine:
Features of Steel Reinforced PE Spiral Corrugated Pipe Extrusion
Machine:
1. Owing to the advance technology come from overseas, Friend Company
developed the steel reinforced spiral corrugated pipe production line, which
consists of the steel coated production line and spiral forming production
line.
2. Steel coated production line used to coat the adhesive resin on the
surface of steel strip, and in turn to make the PE layer to be tight closely
with the steel layer.

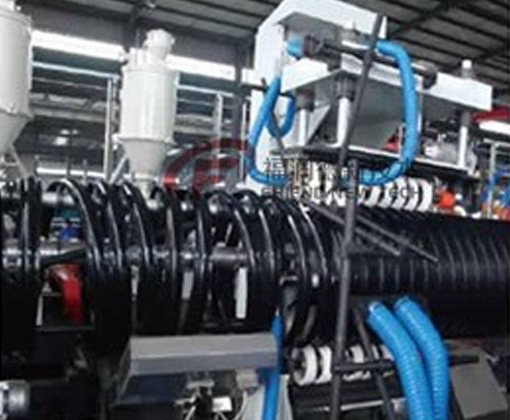

Spiral forming line composed of stable unwinding unit,
high quality spot-welder, reasonable steel strip forming system, spiral forming
system, inner and outer layer extruder, simple cutting unit, pipe-conveying
frame, ect.
Features of PE Steel Reinforced Spiral Corrugated
Pipes
The pipe is enjoying lots of advantages, such as high in ring stiffness,
strong in external pressure resistance, firm in pipe wall adhesion, convenient
in construction connection, lower in construction cost, etc.
Technical Parameters of PE Spiral Corrugated Pipe Making Machine:
Model | Pipe diameter Range (mm) | Main Extruder Model | Total Installed Power (KW) | Max.Output |
FWP-800 | 200-800 | FSJ-65X33 FSJ-40x30 | 100 | 250 |
FWP-1200 | 400-1200 | FSJ-75X33 FSJ-40X30 | 130 | 350 |
FWP-1800 | 800-1800 | FSJ-90X33 FSJ-50X33 | 180 | 600 |
FWP-2400 | 1400-2400 | FSJ-90X33 FSJ-50X33 | 200 | 600 |
FWP-3000 | 2400-3000 | FSJ-100X33 FSJ-50X33 | 250 | 800 |
