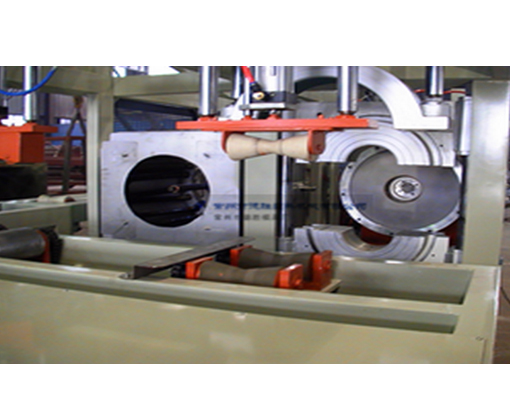

Automatic belling machine DS630 835 Favorites
Product Categories: Hollow Wall Spiral Pipe Machine | |
Packaging Details: | Trademark: |
Certification: | |
Payment Terms: | |
FOB: | HS Code: |
Loading Port: |
Changzhou Desheng Mould Factory | |
---|---|
Company type: Manufacturer | Credit: |
Main products: Belling Machine |
Model | DS630 |
Model | DS630 |
Pipe Diameter | 315mm - 630mm |
Pipe Length | 3m - 6m |
Oven | One heating oven, semi-enclosed heated,Stainless steel heating tube with a heat sink |
Pipe Rotary | Clockwise and anti-clockwise |
Heating Power | 42KW |
Compressed air pressure | 0.6Mpa |
Water pressure | 0.4Mpa |
Hydraulic pressure | 8.0MPa |
U-type | Pushing the mould into pipe directly |
R-type | With ext - pressure and collapsible mandrel |
Cooling type | Water - cooling |
Machine speed | 200S to 1200S |
Mould material | U-type:45# steel with Cr electroplating R-type:The collapsible parts are 3Cr13 and 40Cr, other parts 45# steel with Cr electro-plating |
Total power | 55KW |
Machine weight | 4500KG |
Machine dimension | 8450mm(L)×2970mm(W)×2250mm(H) 2*40GP |
