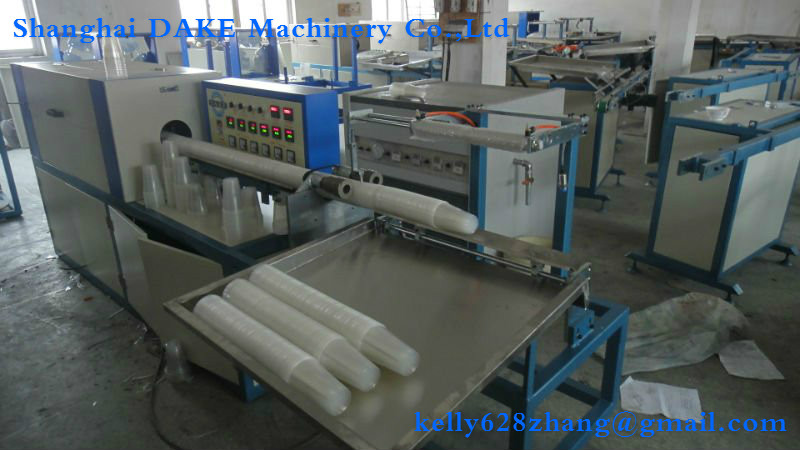

DAKE-135CUP coiling machine
Company profile:
Shanghai DAKE Machinery co., ltd was founded in1999 ,and our main product are The Bent Offset Printer, The Coiling machine, The Thermoforming Machine, Extrusion Line and Mould. We integrate developing, producing ,selling and service as a whole. We preserve in the prosecution tenet of “survival on quality, development on innovation and winning credit on consummate service”, and we pay much attention to clients’ feedback. Our company has strong technical strength, advanced equipment , excellent staff, and consummate after-sale service system and import &export rights. Our products sold all over the world.
1.Feature and usage:
DAKE-135CUP coiling machine is a kind of machine that is specially used for curling plastic cups.
The machine makes the plastic cups more beautiful practical and tasteful, it adds to the hardness of the edge of cups, revising the cup edge stab and the quid at the same time.
DAKE-135CUP coiling machine is equipped with the imported touching board operate dish, controlled with PLC and light-electricity, full automatic feeding and rewinding device; it is very convenient and simple to use.
Plastic cups that are suitable for the machine already have the turn over side, the turn over side has some length, the thickness of the side must be thinner than the edge of cups, and diameter of the edge of cup must below 135mm.
Size requirement of edge of the cups:
(1) diameter of curling side :diameter50mm-diameter135mm;
(2) the width of flat side must above 2.5mm;
(3) thickness of turn over side had better be half of the flat side;
(4) width of turn over side must be more bigger than the width of flat side;
(5) height of overlapping cups must below or the same as 6mm;
(6) the thickness of turn over side of PS,PET can be larger.
2.Main technical parameters of equipment:
Model | DAKE-135CUP |
Voltage | 380V/50HZ |
Total power | 10/12KW |
Output | 660pcs/min |
Cup rim | dia50-135mm |
Air consumption | 0.3m³/min |
Air pressure | 0.5Mpa/0.2m3 |
Weight | 800kg |
Machinery size | 4.5*1.3*1.3m(length*width*height) |
3.Adjustment of screw:
1、unfasten the wheels, adjust the coming and going location of the three screws, but you must always keep rotate point of view of the three screws, which makes sure that the plastic cups enter into the snail groove at the same time;
2、when change products, you only need to put the no turn over side plastic cups in the middle of the outer side screw, adjust bolt of the screws, let edge of cups touch the snail groove of three screws. Let the three running screws touch behind the edge of cups separately, then makes them stable;
3、fasten the wheels.
4.Adjustment of feeding:
1、unfasten the fixed bolt between the conveyor and the chain rack, adjust the location of the conveyor, which makes sure that the whole line of plastic cups on the chain rack could run smoothly to the conveyor;
2、location of baluster next to the conveyor, makes sure that the baluster is in the middle of the cups(height), cups are in the baluster, they can be in the place no more than 5mm;
3、adjust the bolt at the bottom, which makes sure that the centre of cups at the Delivery and the centre of the curling box are at the same line, the Delivery conveyor and the curling box had better be at a level distance of 10cm, makes sure that the whole line of cups is in the location of free bend to centre;
4、adjust the location of the light and electricity buttons, which makes sure that it could feel the evidence of cups efficiently
5.Adjustment of Delivery:
1、adjust the location of the V board of Delivery;
2、adjust the light and electricity button in order to decide the quantity of cups putting into the box;
3、adjust the throttle of cylinder, makes sure that the two cylinders running slowly and smoothly.
5,Others
Place of origin | Shanghai, |
Shipment | FOB to SHANGHAI PORT |
Payment | By T/T or Cash |
Delivery Date | 20 Days |
After-sales Service Provided | No overseas service provided |
