Home > Product Categories > PVC and WPC (PVC Wood Composite) Crust Foamed Board Production Line

PVC and WPC (PVC Wood Composite) Crust Foamed Board Production Line Favorites

Raw material: Place of Origin:Qingdao
Condition: New Loading Port:Qingdao
Product description:This production line uses DC speed regulator, imported world famous brand temperature controller, has the advantages of large speed regulating scope, accurate temperature control, easy and reliable operation. Crust Foamed Board
Qingdao Xinquan Plastic Machinery Co., Ltd
Company type: Manufacturer Credit:
Main products:Plastic Machinery
Get Quotation

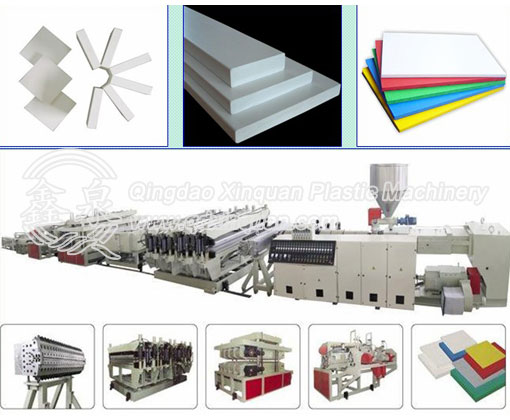

1.Features and Advantages of PVC, WPC Crust Foamed Boards

PVC and PVC wood composite crust foamed board( building board, WPC plate) extrusion line, is our company new product according to the market need, it could reduce the cost, recycling the material and reduce the pollution. The WPC board uses PVC, waste wood or agricultural plants, CaCo3 and other additives as main material, the boards are the newly products that can take place of the steel plate and bamboo plate.

The products features environment friendly, corrosion-resistance, damp-proof, moth-proof, distortion resistance, and can be processed under the same processing conditions as wood products, low cost, light weight, and could recycle more than 30 times, therefore they have wide and popular application in the future.. The waste woods and plastic can be recycled to produce WPC boards, which not only good to the environment, but also “turn wasted into wealth”.


2.PVC and WPC crust foamed boards Application

PVC and WPC crust foamed boards also use widely as building board, tools board, furniture, mould for block, packaging ,recycling box, advertisement plate, show plate, business plate, roof, ship profile, etc. this product have specifications as weather resistance, resistance germ, corrode, cloudy, ant, fire, elect, worms, mice, ultraviolet ray, etc. also could keep temperature, use long times.

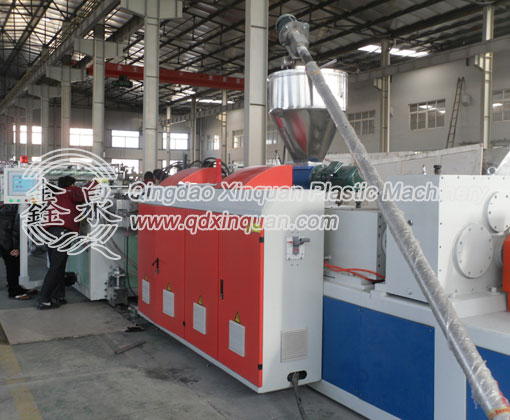

3.Machine Features

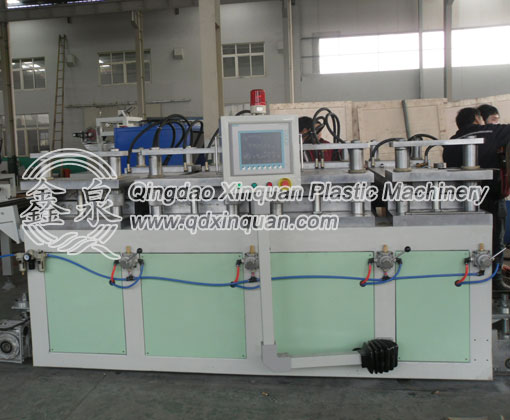

This production line adopts special designed SJZ80 conical twin screw extruder, uses DC speed regulator, imported world famous brand temperature controller, has the advantages of large speed regulating scope, accurate temperature control, easy and reliable operation. The auxiliary units consist of vacuum foamed stand, haul-off, cutting machine and stacker, etc. It is equipped with large forced cooling device to ensure good foamed result. The caterpillar type haul-off adopts précised reduction and frequency inverter, features reasonable structure; large hauling force and stable haul off. The cutting machine has the characteristics of reliable and precise working, accurate cutting, etc. The stacker is matched with movable trolley and special designed rubber protection shield, has the advantages of damage free to the product, easy and convenient operation, etc. The auxiliary units are able to use the PLC control, which is stable and reliable.


4. Main Technical Parameters

ModelSJSZ80/156 SJSZ92/188SJSZ80/156, SJ65/132SJP92/32
Product width mm122016001600-20502050
Product thickness mm3-205-303-203-20
Max. extrusion capacity Kg/h350500600450
Power of extruder KW7511012075

Note: The specifications are subject to change without prior notice.
