2 Screw,The Take-0ut Robot with 1 Station Cooling ,Only 14S.
Demark 12,24 cavities food oil / jar pet preform injection moulding machines@(pet preform injection moldingsystems@pet preform injection mulding plant@) uses a new part cooling and robot handling system, which features:
1. Cooling on the inner surface of the preform without using compressed air, unlike most post-mold cooling systems which only cool the outer surface
2. Optimized cycle utilization — being mounted on the moving platen, the cooling system remains active for up to 85% of the overall cycle.
Demark pet preform injection moulding machines are available from 280 to 500 tonnes (2800 to5000 kN) and up to 96 cavities.
Demark pet injection moulding machines offer:
1. Faster cycles(14s)
2. Reduced energy consumption
3. Smaller footprint
4. Improved repeatability
5. Rapid set-up
Features:
1. Two state plasticizing enables plenty injection quantity;

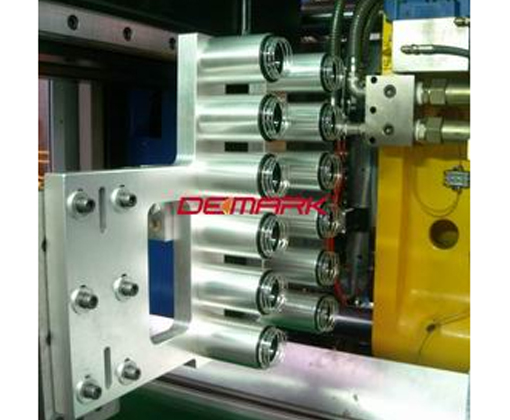

2. Take out plate with three working position insures sufficient cooling time and shorter cycle time;
3. High quality parts and accessories from world famous brands enable higher speed and precision;
4. Special screw design increases torque while brings down shear force to avoid degradation;
5. Accumulator from world reputable manufacture increases performance while brings down power consumption;
Reflex Platens
Reflex platens distribute clamp force evenly across the platen face.
Reflex platens:
1. Allow for 10-30% lower clamp tonnage
2. Decrease mold wear
3. Improve part quality

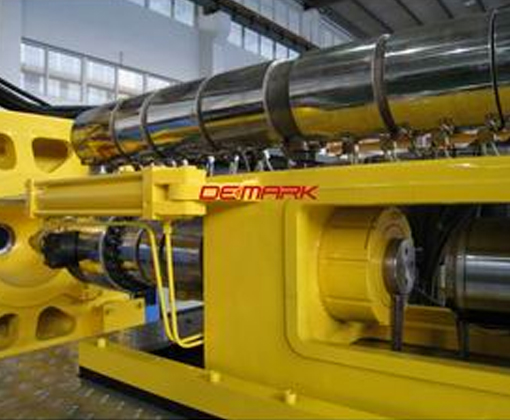

Injection Units
demark systems offer both reciprocating screw (RS) and two-stage injection units. RS units offer the performance required for many PET applications while two-stage is appropriate for higher throughput applications.
Controls
DMK-based controls manage all functions of our PET production systems, with optional packages to integrate auxiliaries and downstream part handling equipment. Advantages include:
1. Faster cycle times
2. Improved shot-to-shot repeatability
3. Remote connectivity through ServiceNetLink
4. Control of molding system and auxiliaries from a single interface
Linear Bearings
Linear bearings support the moving platen directly on the machine base. This design reduces mold wear by improving platen alignment and perpendicularity, and provides a grease free molding environment.
Technical Parameter:
ITEM | UNIT | DMK-PET12-Wide | DMK-PET24-Wide |
INJECTION UNIT | Screw L/D Ratio | L/D | 25 | 25 |
Screw Diameter | mm | 100 | 120 |
Injection Pressure | Kgf/cm2 | 875 | 875 |
Output(Max) | Pcs/h | 17000 | 17000 |
Theory Shot Volume(Max) | cm | 2850 | 3800 |
Shot Weight(PS) | g | 3420 | 4560 |
ozs | 121 | 161 |
CLAMPING UNIT | Clamping Force | T | 360 | 360 |
Clamping Stroke | mm | 645 | 645 |
Max/Min Thickness of Mould | mm | 300~700 | 300~720 |
Space Between Tie Bars (WxH) | mm | 660~860 | 660~860 |
Ejector Stroke | mm | 180 | 180 |
Ejector Force | T | 12 | 12 |
NO.of Ejector Pins | PCS | 5 | 5 |
Max Pressure of System | Kg/cm2 | 140 | 140 |
MOULD&ROBOT | Cavity(Max) | PCS | 48 | 48 |
Neck of Bottle(Max) | mm | 42 | 42 |
Length of Preform(Max) | mm | 190 | 109 |
Weight of Preform(Max) | g | 35 | 50 |

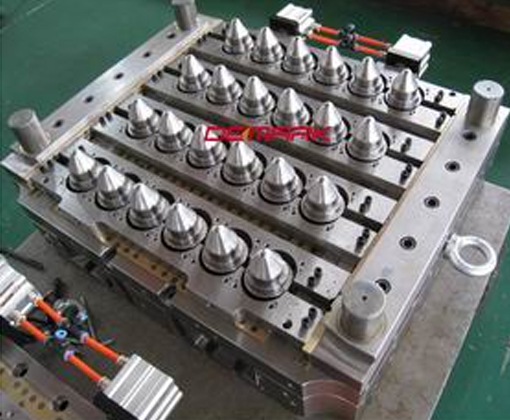

Type of Mould | Needle Valve of No-Cutting PET Preform Molds |
Manipulator | Cavity | 48x3 | 48x3 |
Cooling Form | Cavity | 144 | 144 |
POWER UNIT | Pump Motor Power | KW | 25 | 25 |
Robot Power | KW | 25 | 25 |
Mould Heater Capacity | KW | 48 | 48 |
Heater Input Capacity | KW | 71 | 71 |
Total Power | KW | 264 | 264 |
OTHER | Electric Power Supply(3-phase AC) | V/HZ | 380/50 | 380/50 |
Chilling Water | ℃ | 5~15 | 5~15 |
Mpa | 0.6 | 0.6 |
L/min | 600 | 600 |
Coolling Water | ℃ | 30~55 | 30~55 |
Mpa | 0.25 | 0.25 |
L/min | 200 | 200 |
Compressed Air | Mpa | 0.7~0.9 | 0.7~0.9 |
L/min | 800 | 800 |
Machine Size (LxWxH) | mm | 8455x3884x2230 | 8455x3884x2230 |
