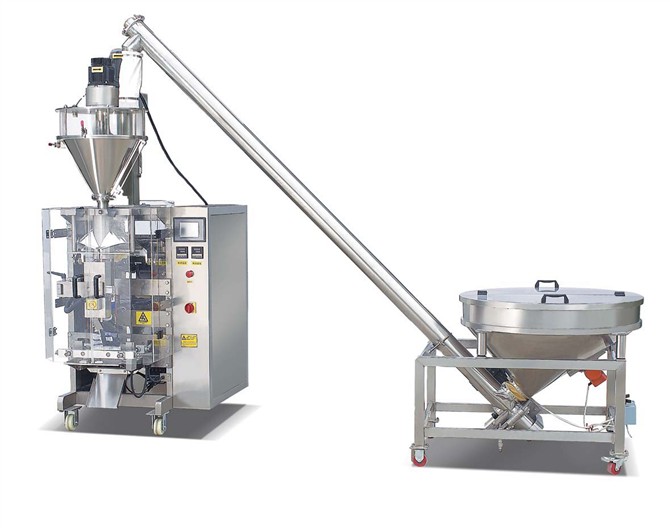

Flour, starch packing machine, screw powder packaging machines, automatic packaging machines
Main features:
1, for the measurement of the flow or the poor mobility of powder materials.
2, the function can complete measurement, filling, nitrogen and other work, through the servo motor drive screw rotation to achieve the purpose of measuring filling material.
3, stainless steel open type material box cleaning convenient, accord with enterprise safety and health management requirements.
4, the use of rotating screw feeding, independent mixing, servo motor control system, with the advantages of quick action, fast measurement, high accuracy, performance stability, etc..
5 low input, high return, high speed, high efficiency.
6 imported PLC full computer control system, man-machine interface, large display touch screen, easy to operate.
7 servo system, horizontal seal servo control, accurate positioning, excellent overall performance, the maximum limit of improving the reliability and intelligence of the whole machine.
8. The machine and metering device to be matched automatically feeding, measuring, filling, bag making, date printing, inflatable and exhaust), counting, finished product output full packaging process
Packaging host technical parameters:
Type | JC-VD420 | Air consumption | 0.65Mpa |
Bag length | 60-300mm(L) | Gas consumption | 0.3m3/min |
Bag width | 60-200mm(W) | power voltage | 220VAC\50Hz |
Max width of roll film | 420mm | Power | 4KW |
packing speed | 5-60(bags\min) | Dimension | 1530(L)X1100(W)X1600(H)mm |
Measuring range | 2000ml | Net weight | 450kg |
Packing range:soy milk powder, rice flour, coffee powder, walnut powder, lotus root starch, protein powder, Chinese yam powder, purple sweet potato powder, starch and other various powder materials
Sample:
PACKING:
