CLAMPING UNIT
- FEA designed double-toogle five-joint clamping machinery
- High rigidity mould platen with enlarged space between tie bar
- Mould Platen with both T-slot and mould tapped
- Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie bar and mould
- Optimized lubrication system ensuring precision clamping and prolonging the life time of the clamping
- Special design of hydraulic oil cylinder for High speed action
- High precision auto-clamping function according to the clamping force settled
INJECTION UNIT
-Doule guide braket structure,Multipoint fixed ensure injection smoothly and accurately.
- High speed and high pressure adopt special injection design, improving injection speed
- Specific screw and barrel designs are available for processing different material requirements
HYDRAULIC SYSTEM
-The double proportional compund valve control syetem pressure and flow,high sensitivity and stability.
- Adopt the imported pump,Low noise,Long lifetime,stable performance.

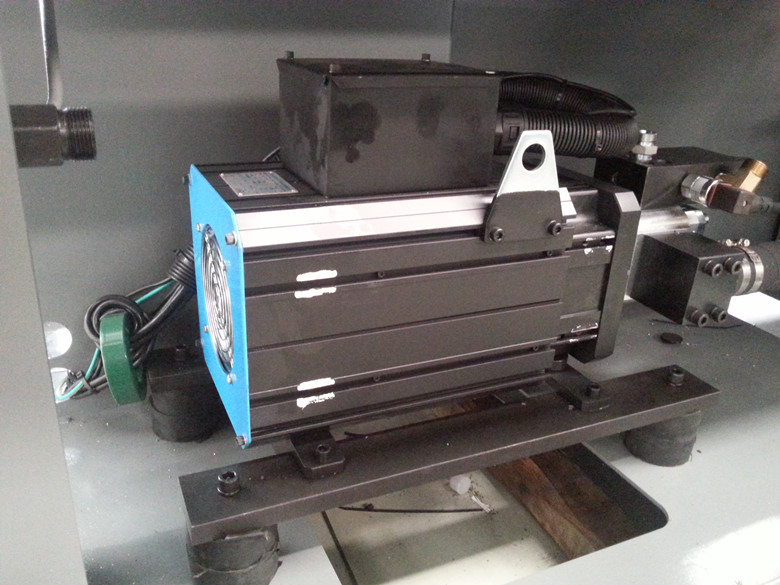

- The optional world-class servo hydraulic system,lower noise,energy-saving.
- High performance hydraulic vale,less failure,fast switch,convenient maintenance.
- Low pressure mould protect system,which is more suitable for the precision mould.
- Greese and lubricating oil in dependent lubrication system can lubricate everywhere in the best situation.

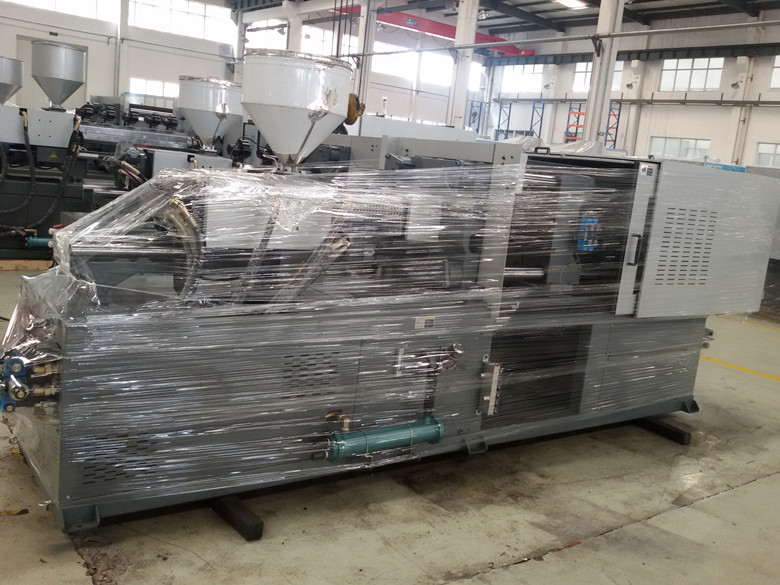

Injection Molding Machine Machine’s Advantage
1.Our machine have nozzle protective cover,to protect the safety of staff.(Safety first)

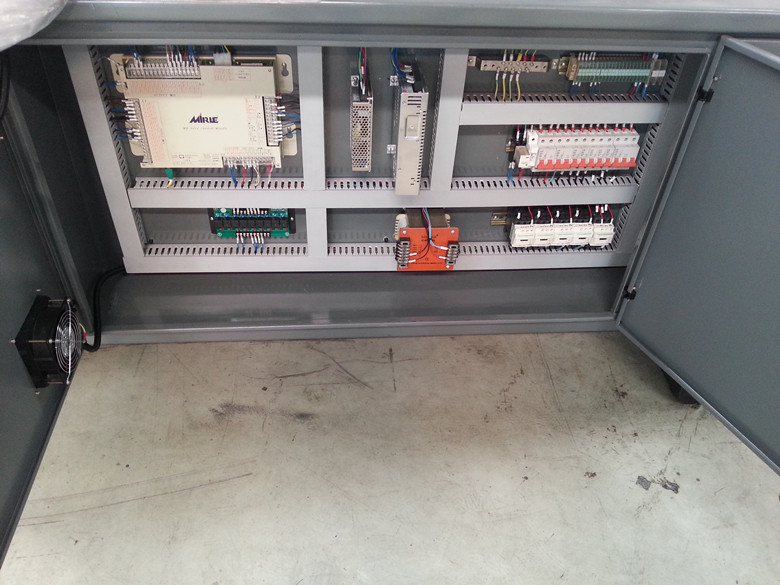

2.Our machine's computer is operative,humanization,and facilitates use.For example,you could note nozzle while operating computer.
3.Bumper built-in.It doesn't anybody and mould(protective effect),and it is beautiful.
4.Integral Toogle (Strong and Stable)
5.Bridge Structure (Stroge Stable and Smooth)
6. Space between tie bars is big and the machine weight is light.Can sace energy about 30%-40%.
