Home > Product Categories > From 200T to 300T Injection Machine

From 200T to 300T Injection Machine Favorites

Raw material: Place of Origin:Taizhou
Condition: New Loading Port:
Product description:From 200T to 300T Injection Machine Injection Machine,Injection Molding
Jiacheng plastic machinery co.,ltd
Company type: Manufacturer Credit:
Main products:plastics machine
Get Quotation

Details


JACG-220

ITEM

UNIT

JACG-220

A

B

C

INJECTION UNIT
注射部分

Screw Diameter 螺杆直径

mm

45

50

55

Screw L/D Ratio 螺杆长径比

L/D

23.2

21

19.1

Shot Volume(Theoretical)理论容量

cm3

366

452

546

Shot Weight(PS) 注射重量

g

333

411

497

Injection Rate 注射速率

g/s

139

165

195

Plasticizing Capacity 塑化能力

g/s

24.6

26.9

29.1

Injection Pressure 注射压力

Mpa

219

178

147

Screw Speed 螺杆转速

rmp

190

CLAMPING UNIT
合模部分

Clamping Force 合模力

KN

2200

Mold Open Stroke 移模行程

mm

470

Space Between Tie-Bars 拉杆间距

mm

510*510

Max.Mould Thickness 最大模厚

mm

530

Min.Mould Thickness 最小模厚

mm

200

Ejector Stoke Distance 顶出行程

mm

130

Ejector Force 顶出力

KN

71

Ejection number 顶出杆根数

PIECE


GENERAL
其他

Max.Pump pressure 最大油泵压力

Mpa

16

Motor Power 油泵马达

KW

18.5

Heater Power 电热功率

KW

14

Machine Dimenshion 外形尺寸

m

5.8*1.45*2.1

Machine Weight 机器重量

T

7

Oil Tank Capacity 油箱容积

L

300

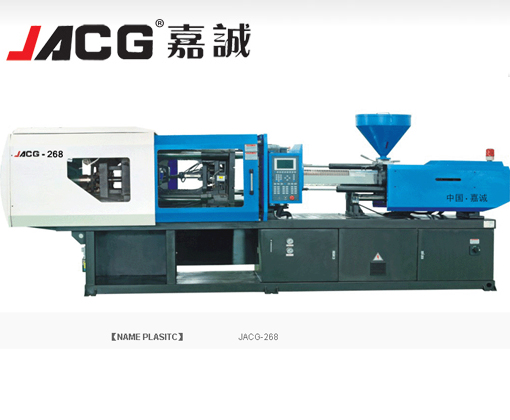

JACG-268

ITEM

UNIT

JACG-268

A

B

C

INJECTION UNIT
注射部分

Screw Diameter 螺杆直径

mm

50

55

60

Screw L/D Ratio 螺杆长径比

L/D

23.1

21

19.3

Shot Volume(Theoretical)理论容量

cm3

540

653

778

Shot Weight(PS) 注射重量

g

491

595

708

Injection Rate 注射速率

g/s

193

229

259

Plasticizing Capacity 塑化能力

g/s

28.9

31.6

34.7

Injection Pressure 注射压力

Mpa

205

169

142

Screw Speed 螺杆转速

rmp

180

CLAMPING UNIT
合模部分

Clamping Force 合模力

KN

2680

Mold Open Stroke 移模行程

mm

540

Space Between Tie-Bars 拉杆间距

mm

575*575

Max.Mould Thickness 最大模厚

mm

600

Min.Mould Thickness 最小模厚

mm

230

Ejector Stoke Distance 顶出行程

mm

140

Ejector Force 顶出力

KN

71

Ejection number 顶出杆根数

PIECE


GENERAL
其他

Max.Pump pressure 最大油泵压力

Mpa

16

Motor Power 油泵马达

KW

22

Heater Power 电热功率

KW

16

Machine Dimenshion 外形尺寸

m

6.5*1.7*2.1

Machine Weight 机器重量

T

8.1

Oil Tank Capacity 油箱容积

L

415

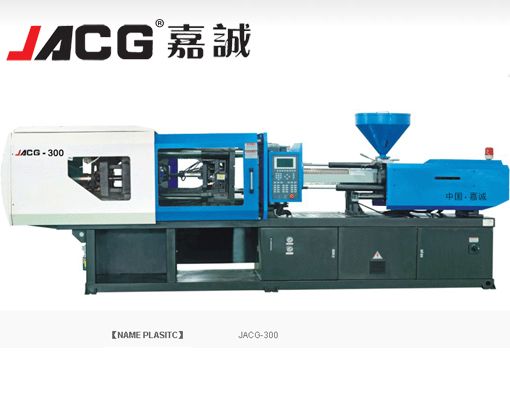

JACG-300

ITEM

UNIT

JACG-300

A

B

C

INJECTION UNIT
注射部分

Screw Diameter 螺杆直径

mm

55

60

65

Screw L/D Ratio 螺杆长径比

L/D

22.9

21

19.4

Shot Volume(Theoretical)理论容量

cm3

700

832

978

Shot Weight(PS) 注射重量

g

637

757

890

Injection Rate 注射速率

g/s

237

283

332

Plasticizing Capacity 塑化能力

g/s

38.5

45.4

52.2

Injection Pressure 注射压力

Mpa

214

180

152

Screw Speed 螺杆转速

rmp

180

CLAMPING UNIT
合模部分

Clamping Force 合模力

KN

3000

Mold Open Stroke 移模行程

mm

600

Space Between Tie-Bars 拉杆间距

mm

600x600

Max.Mould Thickness 最大模厚

mm

660

Min.Mould Thickness 最小模厚

mm

250

Ejector Stoke Distance 顶出行程

mm

140

Ejector Force 顶出力

KN

71

Ejection number 顶出杆根数

PIECE


GENERAL
其他

Max.Pump pressure 最大油泵压力

Mpa

16

Motor Power 油泵马达

KW

30

Heater Power 电热功率

KW

18.3

Machine Dimenshion 外形尺寸

m

6.52x1.85x2.08

Machine Weight 机器重量

T

9.5

Oil Tank Capacity 油箱容积

L

550
