Home > Product Categories > semi-auto plastic bottle making machine for pp pe

semi-auto plastic bottle making machine for pp pe Favorites

Raw material:PP PE matierial Place of Origin:Cangzhou
Condition: New Loading Port:TianJin port
Product description:This model is applied to PP, PE raw material plastic products.mainly used for fruit bottles、pesticide bottle、drug bottles、cosmetics bottle、oil bottle etc hollow plastic bottles. The bottle size range:50-6000ml.
Dongguang county Bai Tong Plastic Products Co.Ltd
Company type: Manufacturer Credit:
Main products:
Get Quotation

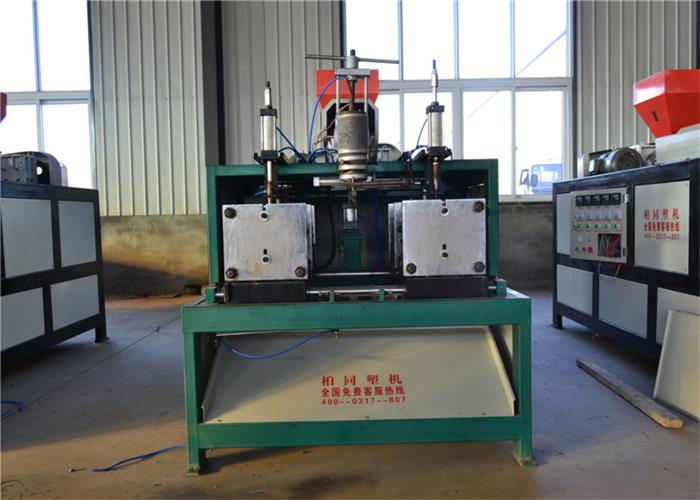

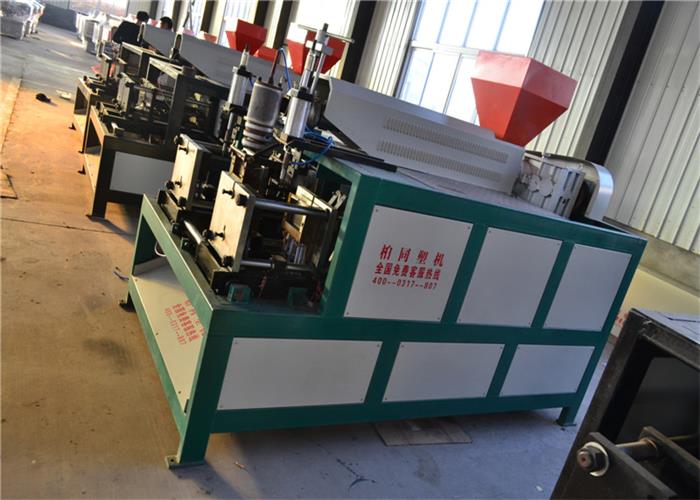

BT200Type plastic bottle blowing machine (single head/double head 0.5-5L)


This model is applied to PP, PE raw material plastic products.mainly used for fruit bottlespesticide bottledrug bottlescosmetics bottleoil bottle etc hollow plastic bottles. The bottle size range:50-6000ml.

This machine adopted famous reducer and variable frequency, Japan Omron proximity switch.

The main technical parameters

Model

BT 200

Maximum capacity

2.5L

Screw diameter

55mm (38CrMoAla)

Screw hotting power

11kw

Oil hydraulic pump power

7.5kw

Main motor power

11kw

Length to diameter ration(L/D)

25:1

Max. production diameter

160*150

Economic speed

260pcs/h

platen max. open width

320mm

Mold open width

150-240

platen open range

170-320mm

Mold size

220*30075

Platen side

350*300*40

Thickness of mold

160-280

Air blowing way

Blowing up on bottle

Air consumption

0.4-0.5m3min

Raw material

PE/PP

Cropping type

Hot cutting

Clamping force

50KN

Speed adjust type

Frequency control

Operating system

PLC

Machine dimensions

2600*1400*1860
