Home > Product Categories > PVC Fiber Reinforced Hose Production Line

PVC Fiber Reinforced Hose Production Line Favorites

Raw material: Place of Origin:Qingdao
Condition: New Loading Port:qingdao
Product description:PVC Fiber Reinforced Hose Production Line,pvc fiber reinforced hose machine, garden pipe extruder, woven fiber hose, plastic hose extruder,Irrigation pipe machine
Qingdao Zhuoya Machinery Co., Ltd.
Company type: Manufacturer Credit:
Main products:PET/PP Filament Extrusion Line, Plastic board machine, plastic sheet machine
Get Quotation

PVC Fiber Reiforced Hose Machine-Zhuoya Machinery (1).jpg

Introduction:

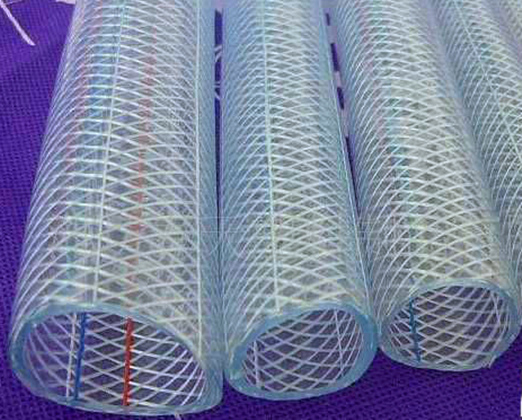

The line is suitable for the production of PVC fiber reinforced pipe.This kinds of pipe is made of three layers structure. The inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fiber reinforced net. The pipe is suitable for the conveying of corrosive gas or liquid. It can be widely used in the fields of machinery, coal mine, oil, chemical plant, agricultural irrigation, building, solar water heater, coal gas pot, etc.

Questions:mail sales1@zyamachine.com

Technical Specifications

Model

ZYF-45

ZYF-65

ZYFC-45

Extruder

Φ45/25

Φ65/25

Φ45/25×2,Φ30/25

Rang of Pipe Dia.

mm

8-25

8-38

8-25

Output

kg/h

35-65

35-80

30-50

Installed Capacity (Approx)

KW

39.3

66.3

28

Average Power Consumption

KW

27.5

39.78

21
