XPS foam board production line Favorites

Raw material: Place of Origin:Qingdao
Condition: New Loading Port:qingdao
Product description:XPS foam board production line,XPS foam board production line, xps insulation, heat insulation, wall insulation panel, eps insulation
Qingdao Zhuoya Machinery Co., Ltd.
Company type: Manufacturer Credit:
Main products:PET/PP Filament Extrusion Line, Plastic board machine, plastic sheet machine
Get Quotation

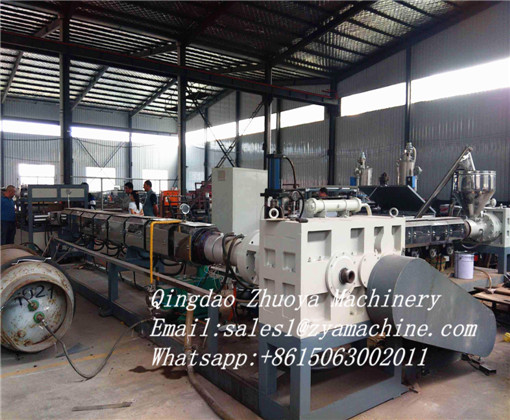

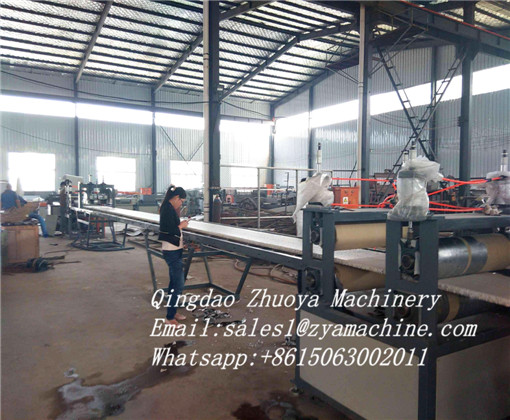

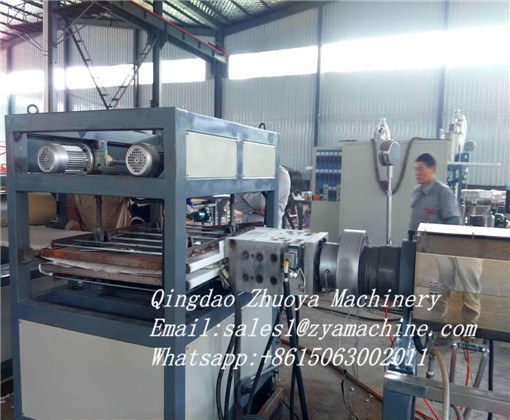

Introduction of The Product:
Xps foam board production line is a well sell plastic machine in the world for the XPS foamed sheet has a perfect closed-pore alveolate structure. Its density, water absorption, coefficient of heat conducting and the coefficient of steam pervasion are all lower than those of other sheet heat insulating materials and they have the characteristics of strong intensity, light material, airtight, anticorrosion, ageing resistance, low cost, etc. It has been widely used in the fields of heat preservation in the construction industry and the highway, railway, airport, square of the heat preservation and household fitment. It is the generally acknowledged and the best heat insulator in the market at present.

Main technical parameters

Model

Screw diameter / aspect ratio

Product Width (mm)

Thickness

(mm)

Production capacity (m3/24h)

Power (Kw)

Power (Kw)

Unit Dimensions

(m)

ZY-120/90

90-32D 120-30D

600 900

20-60 20-40

80-100

45 37

180

3564

ZY-150/135

135-32D 150-36D

600 900 1200

20-100 20-60 20-40

250-270

75 55

260

4564

ZY-200/165

165-30D 200-30D

600 900 1200

20-120 20-70 20-50

≥300

200 160

490

8085
