Home > Product Categories > Standard Type Double Channel Automatic Punching T-shirt Bag Machine

Standard Type Double Channel Automatic Punching T-shirt Bag Machine Favorites

Raw material:LLPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port,China
Product description:1. Specialized Conveyor Device without Film Stretching 2. Heat Cutter Heating Independent 3. Self-lubrication System for Drive train 4. Servo System Accurately Control Feeding Speed 5. Equipped With Full-automatic Punching Machine
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Details Configuration

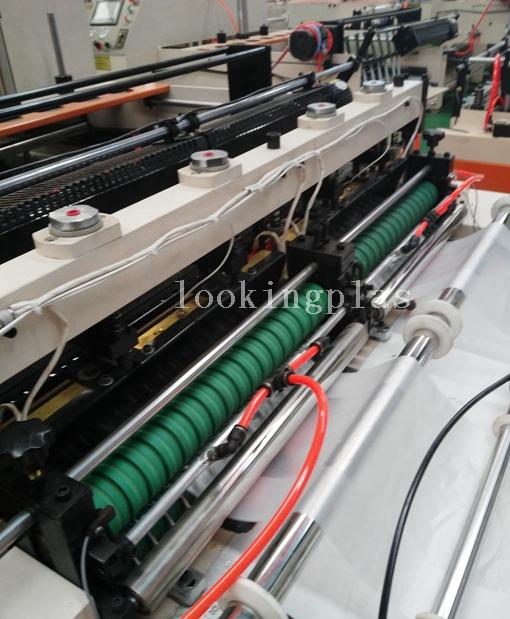

i.Fuselage for making bag

Charging Type

Semi-automatic,Electric

Charging Motor

Two Piece, WUHU DELI

Charging Shaft

Special Expanded Shaft

Conveyer Motor

Two Piece, WUHU DELI

Conveyer Inverter

Two Piece, TECO

Conveyer Roller

Four Piece, Specialized Rubber

PLC Operation System

DECHENG DC300A,equipped Touch Screen

Feeding Roller

Four Piece,Specialized Rubber

Feeding Servo Motor

Two Piece,DECHENG

Feeding Servo Driver

Two Piece, DECHENG

Host Motor

One Piece,WUHU DELI

Host Motor Inverter

One Piece,TECO

Photoelectric

JULONG Z3N-T22-2

Heat Sealing Knife

Alloy Copper

Heat Cutter

Alloy Steel

Heating Method

Heat Sealing&Heat Cutting integrate

Temperature Controller

SHANGHAI YATAI

Static Elimination

One Static Chamber&Two Static Bars

Discharging Method

Automatic Robot Hand

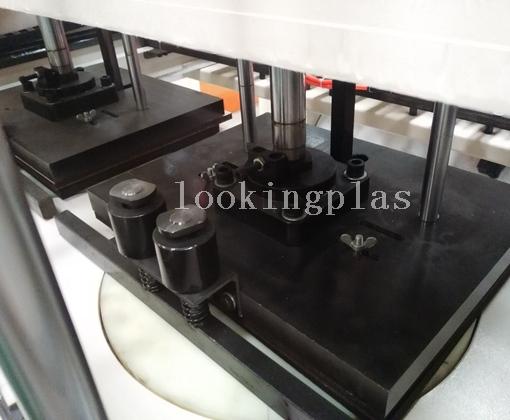

ii.Automatic Punching machine

Cross-flow Fan

CHAOYU, Made in China

Bag Output Orderliness Device

Soft Rubber Whip

Bag stacking&folding Device

Automatic Robot

Robot Hand Servo Motor

One Piece, DECHENG

Robot Hand Open-closed

Pneumatic

Punching Pressure Cylinder

Two Piece, Made In Taiwan

Punching Cutter

Customization,Alloy Steel

Punching Subplate

Auto-transpositionNylon

Bag Output Convey Belt

PVC Plastic


小窗口播放

DFP-300x2 DFP-350x2 DFP-450x2
The max width of the bag (mm) 300 350 450
The max length of the bag (mm) 650 650 750
Bag making speed (pcs/min) 100-260 100-260 100-260
Film thickness (mm) 0.02-0.08 0.02-0.08 0.02-0.08
Total power (KW) 18.64 18.64 20.4
Gas consumption (m3/min) 0.6 0.6 0.7
Bag making roll quantity (roll) 2 2 2
Over Dimensions(mm) 5370x1340x1890 5370x1470x1890 6010x1670x1890
Weight (kg) 2261 2376 2680
Main inverter power (kw) 1.5 1.5 1.5
Conveyer inverter power (kw) 4x0.75 4x0.75 4x0.75
Inverter quantity (sets) 5 5 5
Servo motor power (kw) 2.6 2.6 2x3.0&2.6
Servo motor quantity (sets) 3 3 3
Pressure Cylinder Model KPB-80-165-20-3T KPB-80-165-20-5T KPB-80-165-20-5T
Pressure Cylinder Quantity 2 2 2
Work voltage (V) AC 220V AC 220V AC 220V
