Home > Product Categories > Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine

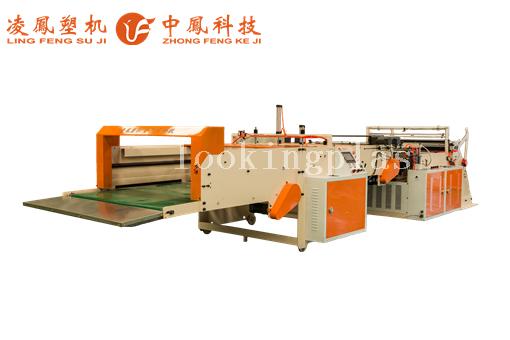

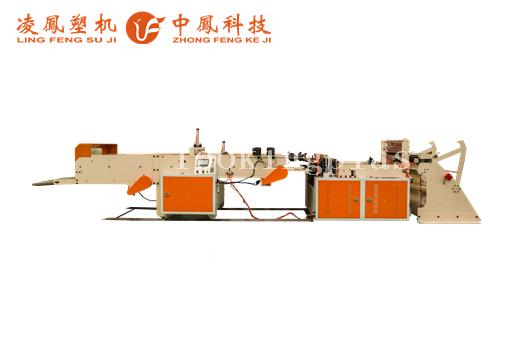

Flat Bottom Sealing Cold Cutting Jumbo Garbage Bag Making Machine Favorites

Raw material:LLDPE/HDPE/LDPE Place of Origin:Langfang
Condition: New Loading Port:Tianjin Port,China
Product description:Adopted patented unwind stand for avoiding tension stretching plastic film Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption. Flat bag,Bag making machine,Garbage bag,Flat Bottom Sealing bag making machine,Garbage bag making machine
Langfang Zhongfeng Mechanical Technology Co., Ltd.
Company type: Manufacturer Credit:
Main products:Film Blowing Machine & Bag Making Machine
Get Quotation

Feature and advantage

1. Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.

2. Adopted patented unwind stand for avoiding tension stretching plastic film

3. Unwind Stand equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.

4. Equipped with specialized pneumatic Expandable Scroll fastens the film roller, easy operation

5. Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.

6. Cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.

7. Special design of cold cutting and sealing parts avoid the tension damage the bag’s quality

8. Adopted patented swing device avoided hot sealing position sticking together

9. The machine adopted plugging type IC circuit auto-controlled system for easy replacement.

10. Servo-motor accurately control Robot hand moment position




小窗口播放

小窗口播放

SCB-1200
Max Film Width (mm) 1150
The max length of the bag (mm) 900-1500
Bag making speed (pcs/min) 100-150
Film Thickness(mm) 0.02-0.08
Total Power(kw) 12.51
Gas consumption (m3/min) 0.4
Bag making roll quantity (roll) 1
Over Dimensions(mm) 7100x1960x1400
Total Weight(kg) 2682
Main inverter power (kw) 1.5
Feeding motor power (kw) 1.5
Conveyer inverter power (kw) 1.5
Inverter quantity (sets) 3
Servo motor power (kw) 4.4
Servo motor quantity (sets) 1
Work voltage (V) AC 380v
