|Raw material：LLPE/HDPE/LDPE||Condition： New|
|Place of Origin：Langfang||Loading Port：Tianjin Port,China|

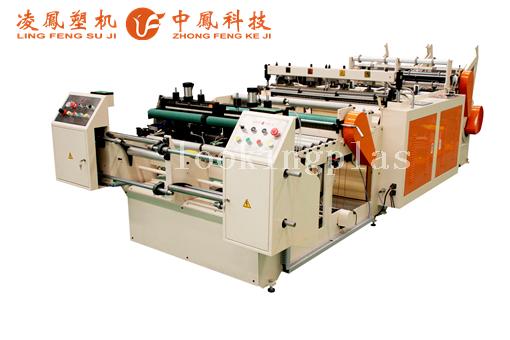

Full-automatic bag-on-roll making machine(with paper core) Favorites
|Raw material：LLDPE/HDPE/LDPE||Place of Origin：Langfang|
|Condition： New||Loading Port：Tianjin Port,China|
|Product description：Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption. Cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.BOR,bag on roll making machine,bag making machine,plastic bag making machine,kitchen bag|
|Langfang Zhongfeng Mechanical Technology Co., Ltd.|
|Company type： Manufacturer||Credit：|
|Main products：Film Blowing Machine & Bag Making Machine|
1.Human touch screen, simple operation. Bag length & speed can be changed easily from touch screen.
2.Adopted patented unwind stand for avoiding tension stretching plastic film
3.Unwind Stand equipped with inverter system for jumbo reels reduced the time and the number of employees of change roller.
4.Equipped with specialized pneumatic expandable scroll fastens the film roller, easy operation
5.Servo control step setting length system reduces the sealing-cutting dimensions errors during high-speed production and electric consumption.
6.Specialized point-cutter not only makes bags connection strong and tearing easily.
7.Cutter and sealing knife "turnover" device, easy for clean and maintenance, also ensure the safety.
8.The machine adopted plugging type IC circuit auto-controlled system for easy replacement.
9.Automatic winding device, operating easy and fast
|The max width of the bag (mm)||510||450|
|The max length of the bag (mm)||750||750|
|Bag making speed (pcs/min)||100-220||100-220|
|Film thickness (mm)||0.02-0.08||0.02-0.08|
|Total power (KW)||11.36||16.42|
|Gas consumption (m3/min)||0.4||0.4|
|Bag making roll quantity (roll)||1||2|
|Main inverter power (kw)||1.5||1.5|
|Conveyer inverter power (kw)||5x0.75||8x0.75|
|Inverter quantity (sets)||6||9|
|Servo motor power (kw)||3.0||3.0|
|Servo motor quantity (sets)||1||2|
|Pressure Cylinder Model||NONE||NONE|
|Pressure Cylinder Quantity||NONE||NONE|
|Work voltage (V)||AC 220V||AC 220V|
