Detailed Product Description
★ Using 3+1 position dosing system
★ Melt pressure on-line inspection and display digital intelligently
★ Automatic double layer screen exchangeer
★ The cooling water tank has water constant stabilizer
★ Use X-ray to inspect the thickness of film on line and record all data
★ Rotary knife stand with 5 kinds of knife for continuous using
★ Double layer oven is opened by double cylinder which makes the structure more fluent
★ Specially designed passage, making hot wind distribute evenly

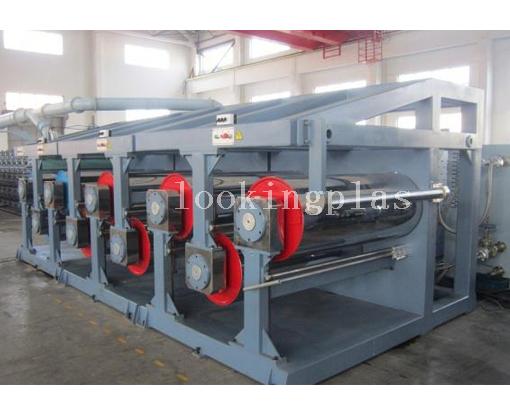

★ Hard chromium plating heating roller can reach 250 degree sets the yarn perfectly
★ High quality reciprocated screw with critically process
★ European standard safeguard system
Main technical parameter:
Item | SJPL-D110×33-1100×2 | SJPL-D120×33-1500 ×2 |
Max extrusion volume | 580kg/h | 650kg/h |
Screw Diameter | 110mm | 120mm |
Ratio of L/D | 33:1 | 33:1 |
Rotation speed of screw | 20-120r/min | 20-120r/min |
Length of mold lip | 1100mm(double lips) | 1500mm(double lips) |
Max production speed | 280m/min | 280m/min |
Flat yarn fibre scope | 60-200tex | 60-200tex |
Drawing ratio | 4-10 | 4-10 |
No.of winder | 352Spindles | 480Spindles |
System installed capacity | 430kw | 500kw |
System normal operational capacity(about) | 258kw | 300kw |
Overall dimension(L×W×H) | 43000×3830×2700mm | 50000×3900×2800mm |
Total weight | 35T | 40T |
