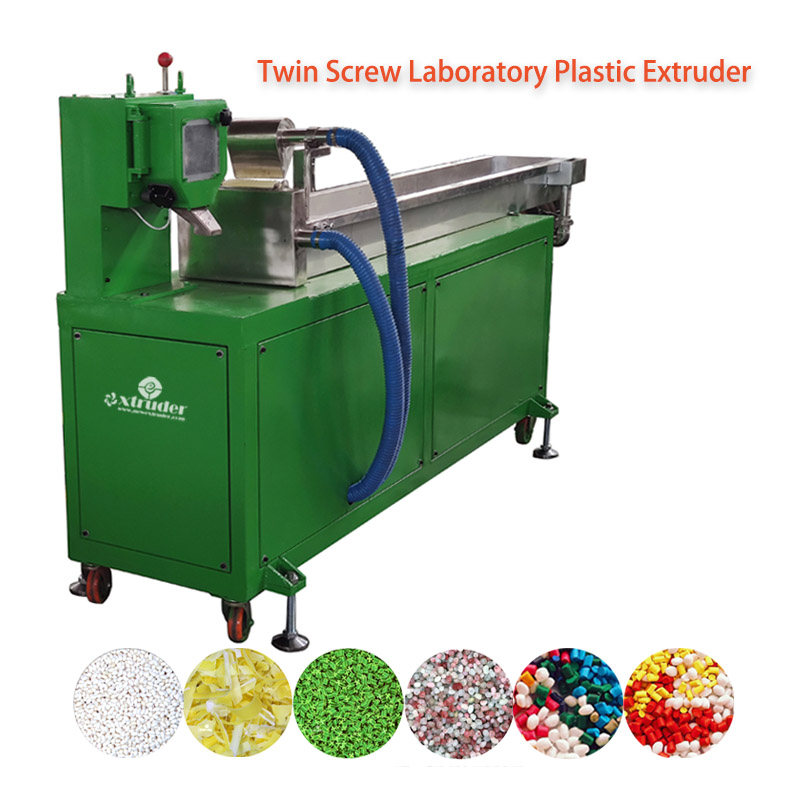

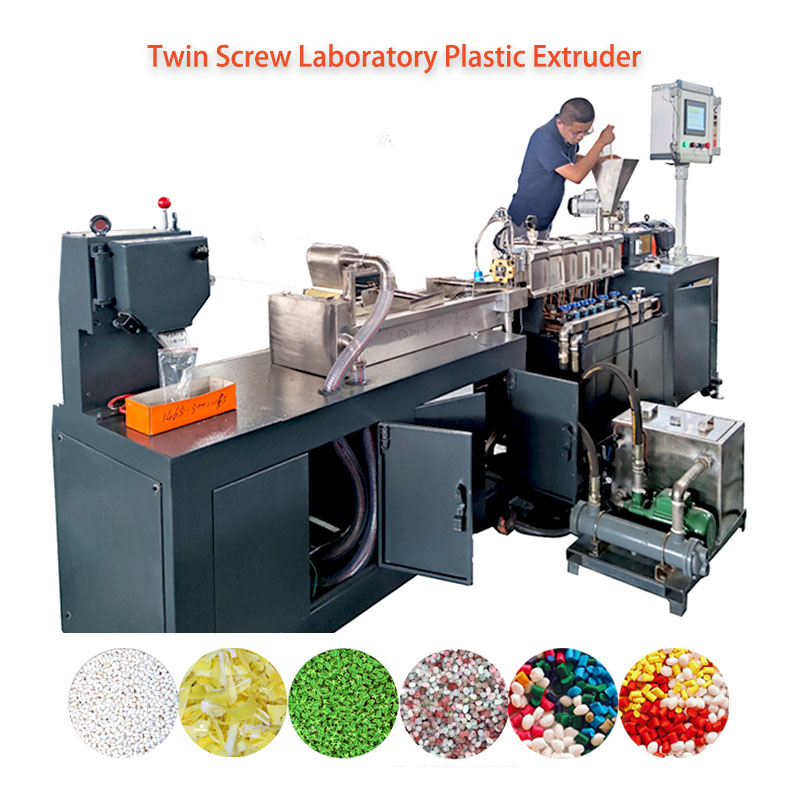

Twin-Screw Laboratory Extruder
Usage: Twin screw plastic laboratory extruder is for the laboratory to check whether the formula is workable or the technical processing is reasonable or needs adjusting and so on.
Model: SHJ-20A/B 400RPM/500RPM/600RPM could be selected;
L/D: 44:1/48:1
Motor Power: 4KW

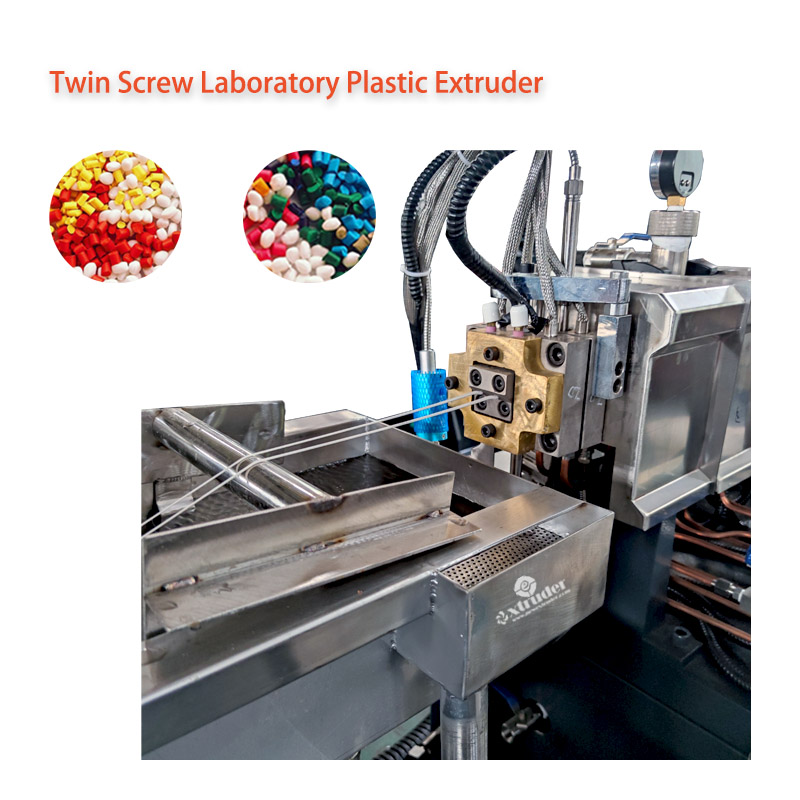

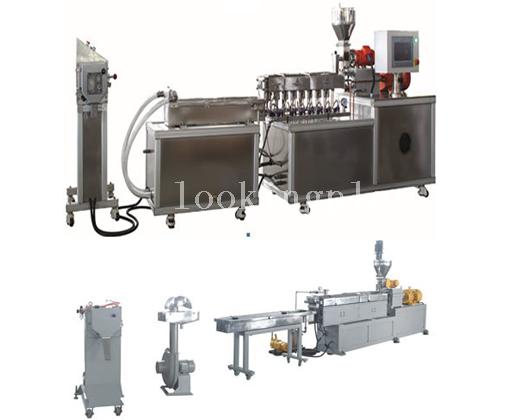

This machine designed by integrated design, two parts: one is extrusion main machine(HOST) with control box, another one is water trough, air knife and pelletizer designed by one picec (for Bio degradable granules making line is set by air cold belt convoying system with pelletizer);
Technical FeaturesLaboratorial Twin screw extruder machine is aiming at universities and colleges, scientific research institution and large and medium-size enterprises. As it designed for the above organization specially to meet the demands of different requirements. They can made the testing products for researching the different plastic material’s meltdown, plasticization, extruding and so on. The temperature, pressure and speed and so on can be shown on the machine during the testing and running. The machine screws has different screw elements for assembling, in the meantime, as we can adjust the L/D rate by customers’ requirements(Customer Design Orders). For this, the machine can works fluently and meet the customers’ demands. The machine is as a multi-platform for testing and researching by different kind of the plastic materials for all of the research institutions. Especially is engaged in the plastic production manufacturers for their new products development and small batch of samples.Appropriate for strong(concentrate) Master-batch, fire-retailed Master-batch, reinforced master -batch, blend composition alloy, fill and modification, various of cable material, and other special and customer pointed materials.
