Home > Product Categories > Water Storage Tank Blow Molding Machine Water Tank Manufacturing Machine 200L~1000L 1~4 layer

Water Storage Tank Blow Molding Machine Water Tank Manufacturing Machine 200L~1000L 1~4 layer Favorites

Raw material:HDPE/HMWHDPE Place of Origin:Qingdao
Condition: New Loading Port:QINGDAO

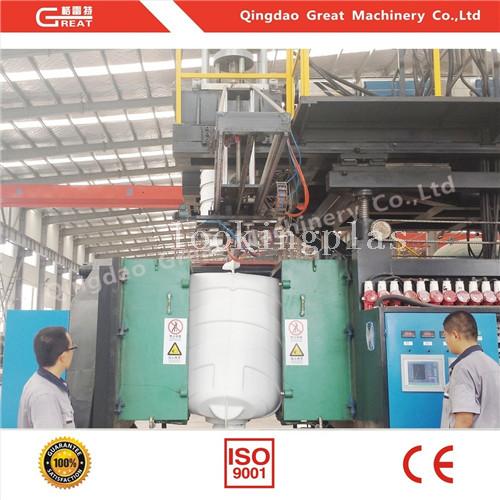

Product description:This GT1000-4 blow molding machine is mainly used for making water tank ,capacity from 200L - 1000L ( 1 Layer, 2 Layers, 3 Layers, 4 Layers).
Qingdao Great Machinery Co.,Ltd
Company type: Manufacturer Credit:
Main products:Blow molding machine/Plastic machiney
Get Quotation

About us:

公司外观.jpgWe are the professional manufacturer of Large blow molding water tank machine in China.


Our blow mold machine is mainly used for making water tank, or eptic tank, plastic pallet, chemical tank, road barrier, frp vessel, IBC, L-ring drum, floating dock, fish tank and other customized products, capacity from 200L - 10000L ( 1 Layer, 2 Layers, 3 Layers, 4 Layers, 5 Layers).


Production range also includes water tanks , road barrier, double ring tank, horizontal tanks, IBC tanks, blue barrel , pallets, dustbin, chairs, table top, tool box and other customized products.




Our advantages:

1. Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2. Adopt progressive hydraulic system by ourselves,easy to control.
3. Adopt inverter to control the clamping system,saving a lot of energy.
4. The technology of DIe Head is the same with Germany.

1000l blow molding machine for water tank703_副本.jpg

Process of water tank blow molding:


After sale service of blow molding machine:


Besides machines, we also provide spare parts and experience sharing to our customers. Good service helps to prolong the machine's usage life and reduce the possibiity of damages. If you need help for installation and commissioning, we can dispatch an engineer to your factory. After the one year guarantee, the spare parts for value and remote help for free will cover your machine's whole life.


Package and deliver of water tank blow mold machine:


Blow molding machines are packed with wooden pallets, covered with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to you for reference.


Electric System of water tank make machine:


We fix the earth wire connecting, open front door stop, emergency stop button, light curtains and power line insulation barrier to insure the operators personal safety. All electric cabinet is equiped with its separate cooling Fan for safety and long time running.

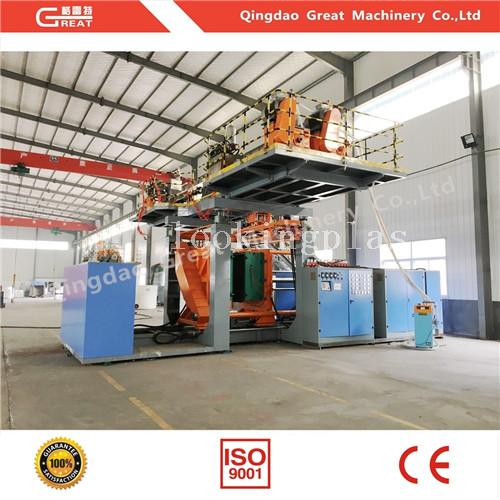

Water tank blow moulding machinery.jpg

Water tank blow moulding machinery.jpgWater tank blow moulding machinery1213.jpgWater tank blow molding machine10.jpg


GT1000-4
Max Product Volume 1000L
Layers of Products 1-4
Material HDPE/HMWHDPE
Productivity 20PC/h
Product Weight 18kg
Screw L/D Ratio(L/D) 32
Hydraulic System Servo motor
Total Power 350Kw
Weight of Machine 32tons
Size of Machine 5.8×2.6×5.0
