XPS Heat Insulation Foamed Plate Extrusion

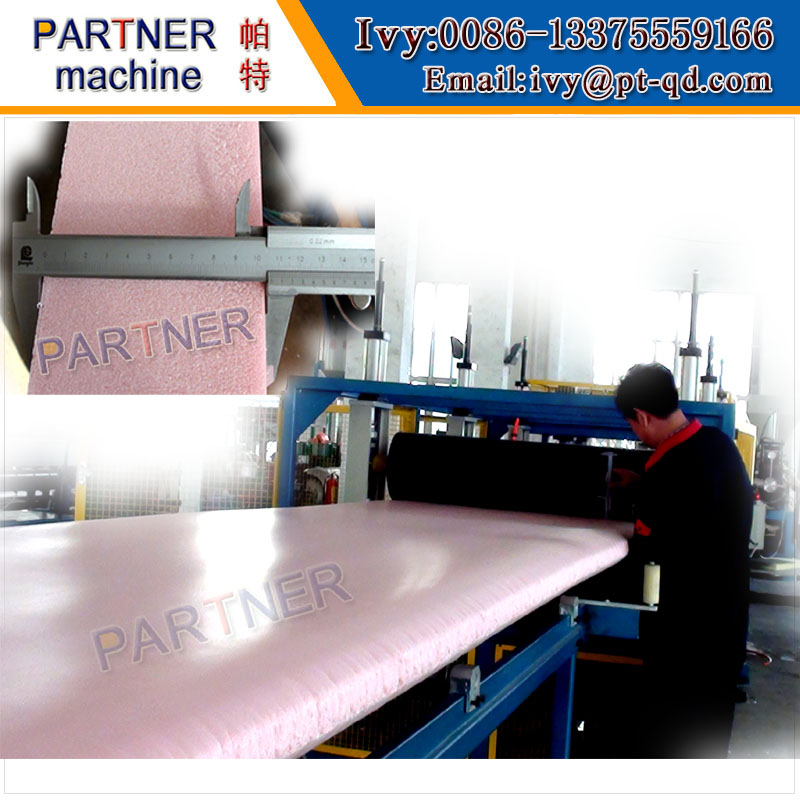

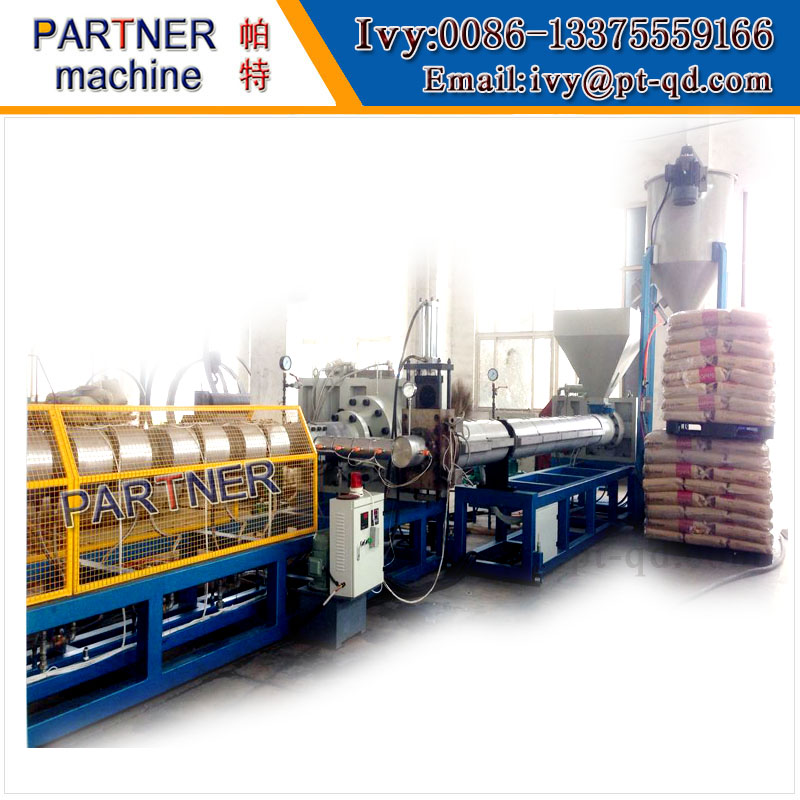

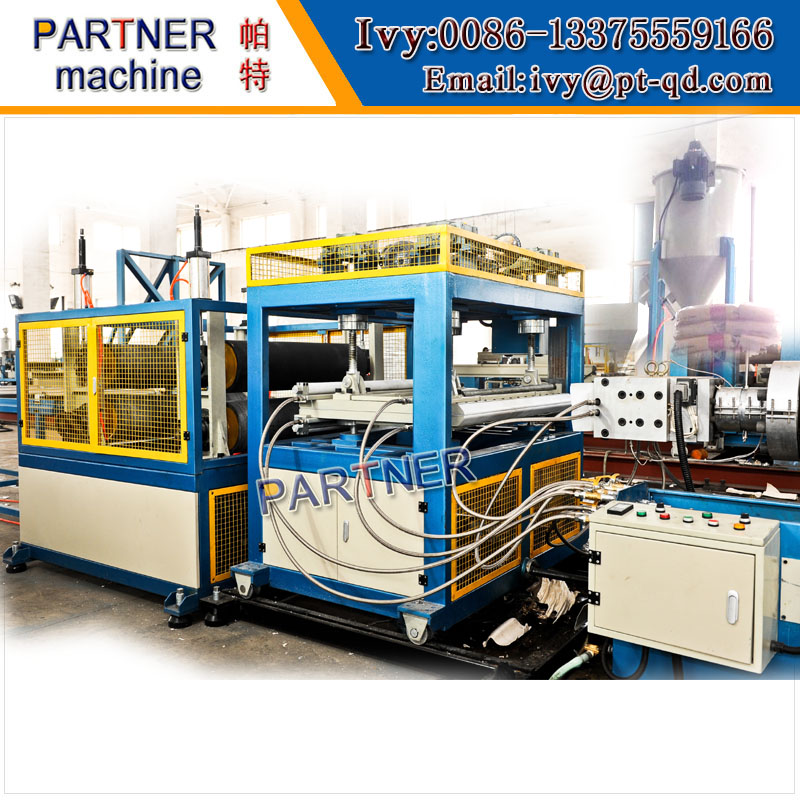

XPS Foamed Board Production Line
Brief introduction of XPS foam board extrusion line:
XPS foamed board production line also named as XPS heat insulation boards extrusion line or XPS heat insulation sheet(plate) extrusion line. That is one of our new hi-tech products developed on the basis of international advanced technology.
XPS foam extrusion board is one kind of good insulating materials with continuous even surface and beehive structure.
XPS board has superior advantages of good heat preservation heat insulation waterproof and high compression resistance.
XPS boards have been widely used in the fields of heat preservation and insulation for roof outer wall low temperature storage facilities and road construction projects.
Main Technical Parameter:
Model | Screw diameter and L/D ratio | Board | Capacity | Power | Dimension |
Width/mm | Thickness/mm | m3/d | kw | m |
SFBZ-100/120 | Single screw 100-32D Single screw 120-42D | 600 | 20-70 | 180m3/d | 180kw | 38*6*5m |
SFBZ-135/150 | Single screw 135-32D Single screw 150-42D | 600/900/1200 | 20-120/80/60 | 350m3/d | 260kw | 48*10*5m |
SFBZ-150/75*2 | Twin screw 75-40D Single screw 150-42D | 600/900/1200 | 20-120/80/60 | 360m3/d | 280kw | 48*10*5m |
SFBZ-170/200 | Single screw 170-30D Single screw 200-34D | 600/900/1200 | 20-150/150/80 | 450m3/d | 520kw | 58*8*5m |
CO2-135/150 | Single screw 135-32D Single screw 150-42D | 600 600/900/1200 | 20-70 20-120/80/60 | 350m3/d | 290kw | 48*10*5m |
CO2-200/75*2 | Twin screw 75-40D Single screw 200-36D | 600 600/900/1200 | 20-70 20-120/80/60 | 300m3/d | 490kw | 68*10*5m |
CO2-200/85*2 | Twin screw 85-40D Single screw 200-36D | 600 600/900/1200 | 20-70 20-120/80/60 | 450m3/d | 560kw | 78*10*5m |
CO2-200/95*2 | Twin screw 95-40D Single screw 250-36D | 600 600/900/1200 | 20-70 20-120/80/60 | 650m3/d | 580kw | 85*10*5m |
CO2-110/85*2 | Twin screw 85-40D Single screw 200-36D | 600 600/900/1200 | 20-70 20-120/80/60 | 820m3/d | 600kw | 90*10*5m |
Welcome coming our factory for inspecting and discussion the technical details.
Welcome for your visiting and discuss the details on the technical and process.
The concrete information please write to our sales.
