PE, PP, PS, ABS Sheet and Board Production Line Favorites

Raw material:PP, PE, PS, ABS Place of Origin:Qingdao
Condition: New Loading Port:Qingdao
Product description:This machine have advantages of tight ,machine structure good specify and the screw and barrel all made in nitride alloy steel, could make the material plasticizer equal and have high output and long usage. Sheet Machine,Board machine,Sheet,Board,Production Line
Qingdao Xinquan Plastic Machinery Co., Ltd
Company type: Manufacturer Credit:
Main products:Plastic Machinery
Get Quotation

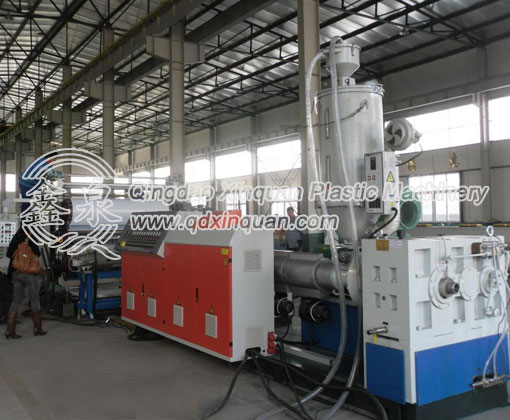

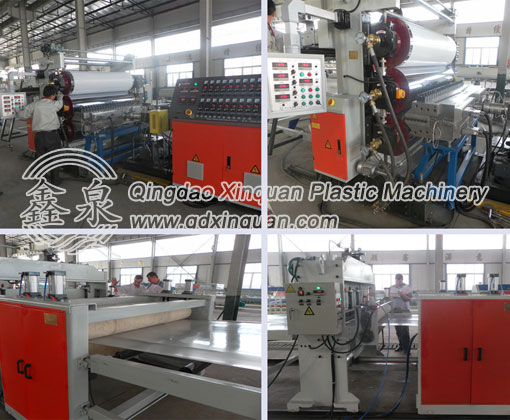

1.About Machine

This machine have advantages of tight ,machine structure good specify and the screw and barrel all made in nitride alloy steel, could make the material plasticizer equal and have high output and long usage.

*The screw is designed of special mixing function and high plasticization capacity.

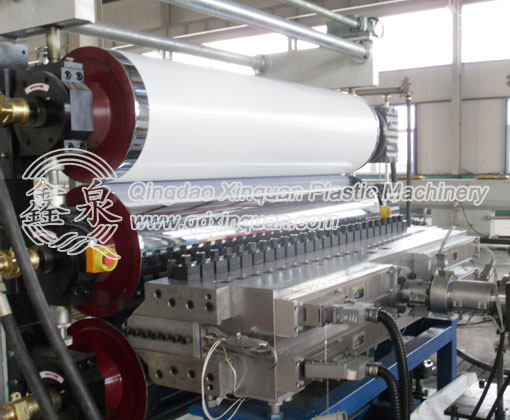

*The special designed T-type mould ensures a precise control to the thickness of the board.

*The accurate temperature control (±1℃) can precisely control the plasticization process, thickness and smoothness of board.

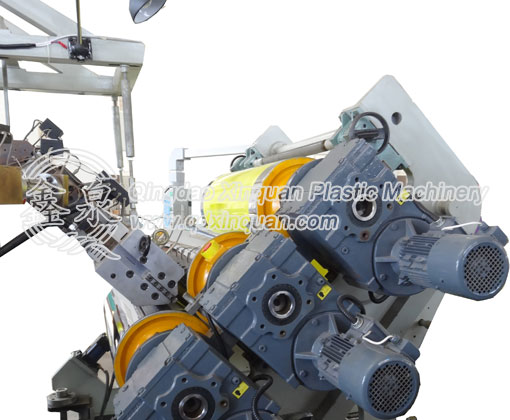

*The three-roller calendar adopts horizontal, vertical or 45°tilt type installation, with up-down lifting mode.

*The thickness of board is controlled by screw and pressing roller in two directions.

*The separate roller temperature control system can precisely control the pressing roller temperature to ensure a even thickness.

*Cutting machine can cut the sheet with accurate length and quantity.

*The winding device uses big torque motor, can freely regulate the winding speed and tension.

*The automatic meter countering device can pre-set the length of the product.

2.Technical Parameters

ExtruderSJ65—SJ150
Sheet layerSingle layer or multi-layer sheet
Board width400-2000mm
Board thickness0.2-2.5mm
Max. extrusion capacity30-500kg/h
Production line speed15m/min

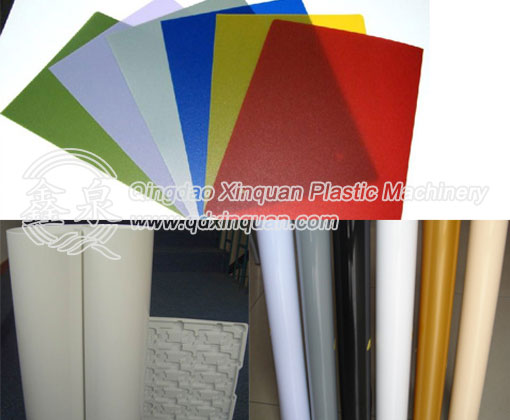

3.Sheet Product features and application

The sheet is single layer or multi-layer according to customer’s requirement. The sheet is of even thickness, the surface is smooth and flat, the sheet can be made of different designs.
The sheets are mainly used to thermoforming machine or injection molding machine to produce packages box and containers for food, milk, medicines, meat, cosmetics, etc.
