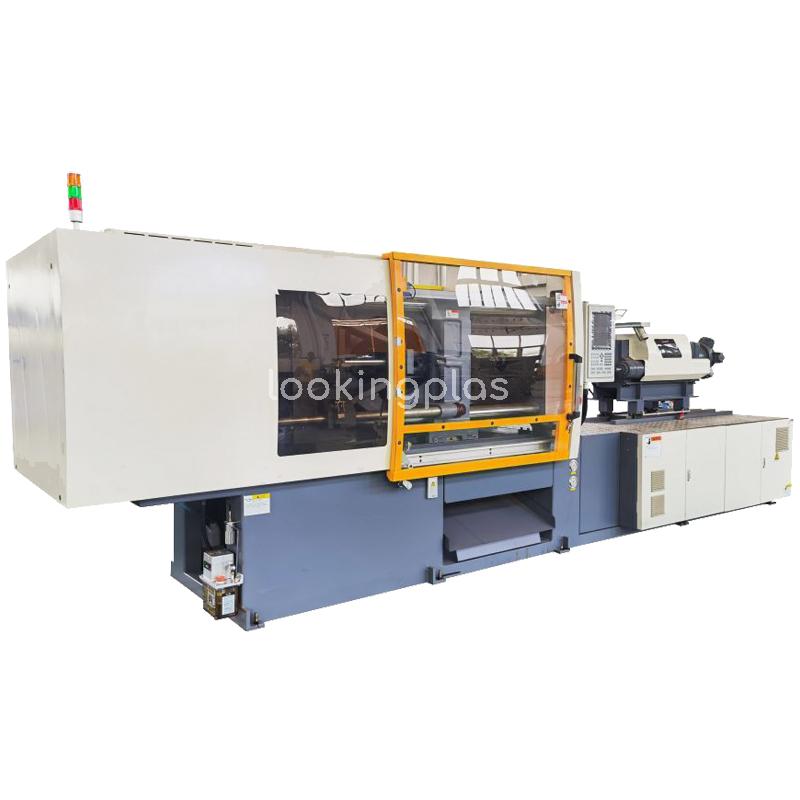

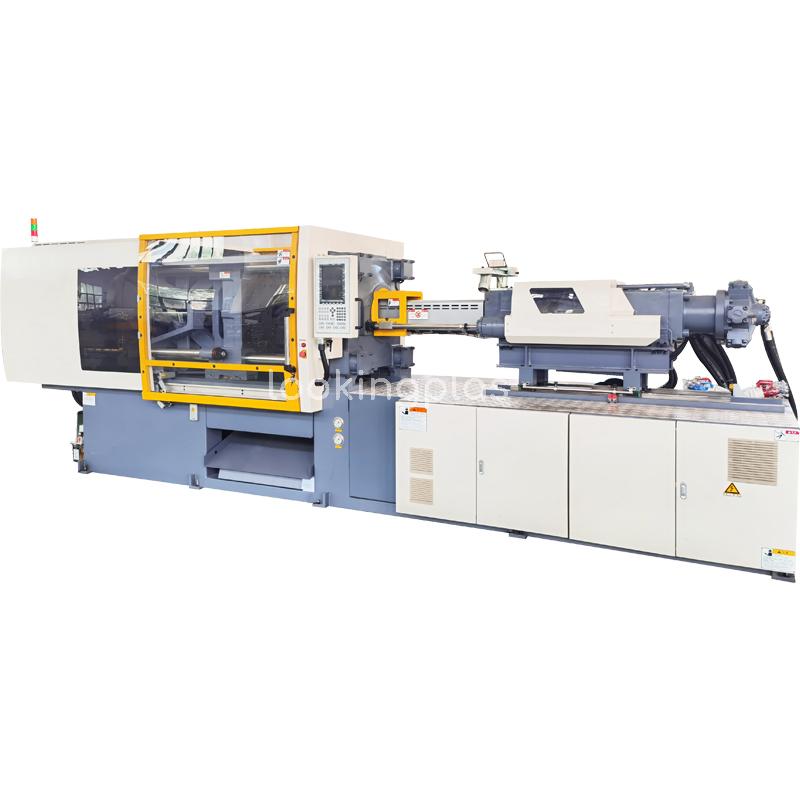

OUCO 450T Energy Saving Servo Motor Injection Molding Machine 32 Favorites
| Product Categories: From 400T to 500T Injection Machine | |
| Packaging Details: | Trademark:OUCO |
| Certification: CE, ISO9001:2008, | |
| Payment Terms： L/C, T/T, D/P, D/A, | |
| FOB: USD $/Set | HS Code: 8477101090 |
| Loading Port： | |
| OUCO (Wuxi) Injection Molding Machinery Equipment Co., Ltd. | |
|---|---|
| Company type： Manufacturer | Credit：
|
| Main products：Injection Molding Machine | |
| Model | OC-450HS |
| Injection Pressure | 156 Mpa |
| Shot Weight | 1664 g |
| INJECTION SPEED | 168 mm/s |
| Shot Size | 1809 cm³ |
| MACHINE WEIGHT | 20 ton |
| HEATER POWER | 30.2 Kw |
| Mould Thickness Min | 300 mm |
| Motor Power | 34+48 Kw |
| Clamping force | 4500 Kn |
| Clamping Stroke | 790 mm |
| Machine Dimension | 7960*2100*2460 mm |
| Screw Diameter | 80 mm |
| Mould Thickness Max | 800 mm |
| SPACE BETWEEN TIE-BARS | 820*820 mm |
| Injection Rate | 845 cm³/s |
