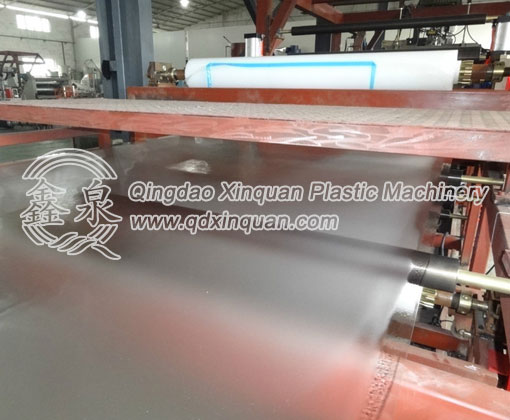

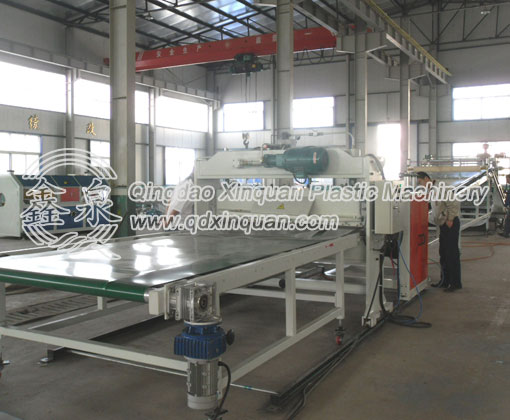

1.Machine Instruction of PET, PMMA Sheet Production Line
The PET transparent sheet production line is specially designed for the APET, PET single or multi-layer sheets, it can also produce the PS, PP, PE sheet when after change some relative parts, it is a multi-functional production line.

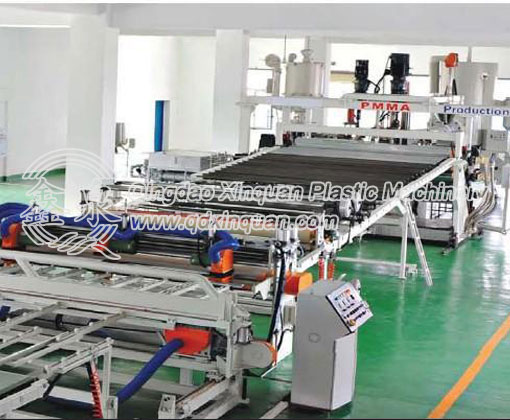

PMMA transparent sheet line is specialized in manufacture of PMMA solid sheet and embossed sheet. The products thickness vary from 0.8-10mm, and max width up to 2100mm.
2.Technical Parameters
| PET, APET | PMMA, PC |
---|
Main Extruder Screw Dia | 120mm | 130mm | 75mm (Twin Screw) | 120 | 130 |
---|
Main Extruder Screw L/D | 33:1 | 33:1 | 44:1 | 36:1 | 36:1 |
---|
Main Extruder drive | 160kw | 200kw | 160kw-250kw | 185kw | 250kw |
---|
Co-extruder Screw Dia. | 65mm | 75mm | 65mm or 75mm | 45mm | 45mm |
---|
Co-extruder Screw L/D | 33:1 | 33:1 | 33:1 | 30:1 | 30:1 |
---|
Co-extruder drive | 37kw | 45kw | 37kw or 45kw | 22KW | 22KW |
---|
Sheet Thickness | 0.15mm-1.2mm | 0.8-8mm | 1.5-10mm |
---|
Sheet Width | 560mm-1500mm | 1000-1560mm | 1220-2100mm |
---|
Max. Extrusion capacity | 350kg/h | 500kg/h | 350kg/h-800kg/h | 420kg/h | 600kg/h |
---|
Installation power | 250kw | 320kw | 200kw-400kw | 180kw | 250kw |
---|
3.PMMA, PET, PC Sheet Products Features
a) Impact-resistant , unbreakable: Strength in excess of tempered glass , acrylic board hundreds of times , tough security , burglar , bullet-proof effect
b) circular arch, bending: Good workability , plasticity, bent into a vaulted , semicircular pattern according to the actual needs of the construction site
c) Light material, easy to carry: half weight of the glass, Province to handling and install, the construction easy to manage.
d) resistance to elements, lighting advantages : long-term anti- UV , Particularly good lighting effects, reduce the amount of energy costs
e) Ultra-transparent , super-insulating: Transparency is almost like glass , self-extinguishing, the best lighting and fireproof material

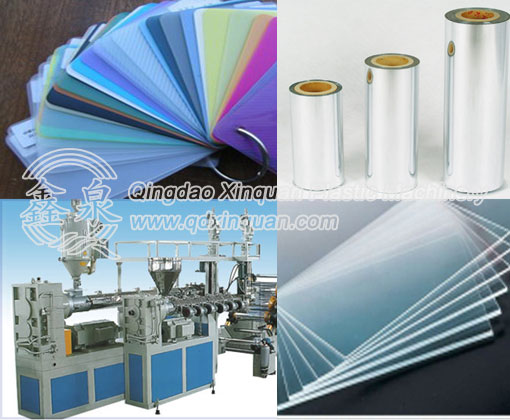

4.Product Application
*The PET sheets are mainly used to thermoforming machine or injection molding machine to produce packages box and containers for for food, milk, medicines, meat, cosmetics, etc.
*PMMA sheet is widely used in both transparent and the Advertising building materials: Garden, the recreation place, decoration a urban building; transparent container of aviation, the windscreen in the corridor pavilion; Internal and external ornaments in the commercial building, curtain wall of the modern front of the motorcycle, the plane, the train, the steamer, the submarine, army and polices shield, the telephone booth, advertising signpost, the advertisement of the lamp houses, the expressway and overhead way of the city partition protective screen.
