Home > Product Categories > Plastic Net Pipe Machine

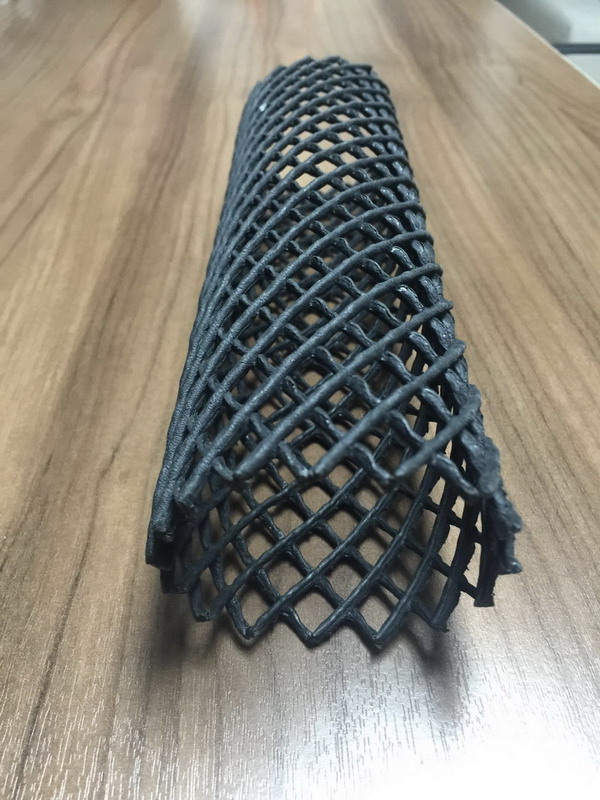

Plastic Net Pipe Machine Favorites

Raw material:HDPE Place of Origin:Jiaxing
Condition: New Loading Port:Jiujiang Port
Product description:Plastic net pipe,Net Machine,Plastic Net Pipe Machine,Plastic net machine,net pipe machine
Jiaxing Junsheng Machinery Co.,Ltd.
Company type: Manufacturer Credit:
Main products:Plastic Drainage Panel Production Line
Get Quotation

1. Single-screw extruder 1 set

Diameter: 65mm

L/D: 30:1

Screw speed: 0~70rpm

Motor power: 22KW

Speed adjusting method: frequency conversion motor

Screw and barrel cooling method: 5 zones fan cooling

Temperature control: by temperature controller

Heating power: 21KW

Heating section: 5 zones

Extrusion capacity: 40-60kg/h

Heat induction method: thermal resistance

Heater: stainless steel heater

Material of screw and barrel: 38CrMoAl, nitride treatment

2. Rotary die head 1 set

Heating power: 5KW

Heater: stainless steel heater

3. Mandrel 2 sets

Double-layer diameter 450, 650mm for each

4. Cooling water tank 1 set

Material: Common steel

5. Haul-off device

Haul-off speed: 0.35~3.5m/min

Motor power: 1.5KW

Working pressure: 0.4~0.5MPa

6. Cutter unit 1 set

Speed: 0.35~3.5m/min

Stacker 1 set

Length 1m

7. Electrical control cabinet 1 set

8. Welding machine 1 set

Method automatic control, automatic come in and weld
