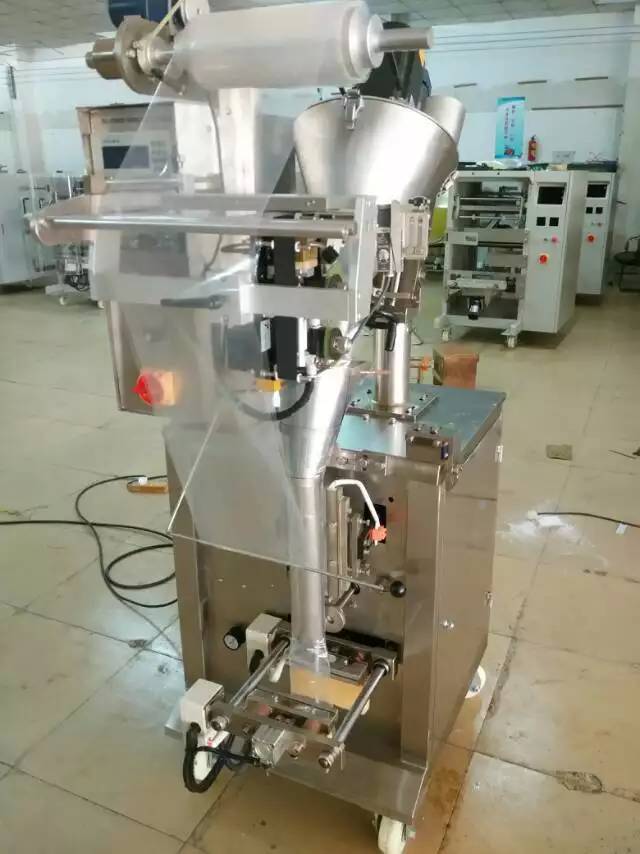

Protein powder, soybean milk powder packing machine, screw powder packing machines, automatic packing machines
Introduction
* imported PLC full computer control system, man-machine interface, touch screen operation is simple and intuitive;* step into the film, accurate positioning, excellent performance, packaging beautiful;
* improve the automatic alarm protection function, the loss will be reduced to a minimum;
* all packaging process of the machine and supporting the metering device can automatically measure, feeding, filling, date printing;
* bag shape: This machine can according to the customer needs to be made into a pillow bag, bag hanging belt.
Item Model | JC-EZ320 |
Max packing speed | 80bags/min |
Bag-making size | (L)50-200 (W) 50-150mm |
Type of bag making | pillow bag , gusseted bag, punched hanging bag |
Max film width | 320mm |
Film thickness | 0.04-0.07mm |
Measuring range | 50-500ml |
Air consumption | 0.8Mps 0.25m3/min |
Supply voltage | 2.2KW 220V 50Hz |
Dimension | (L)1500×(W)680×(H) 1700 mm |
Host weight | 250kg |
Packing range:soy milk powder, rice flour, coffee powder, walnut powder, lotus root starch, protein powder, Chinese yam powder, purple sweet potato powder, starch and other various powder materials
Sample:
PACKING:
