YK1000L-4 BLOW MOLDING MACHINE
1.Machine Series
Style Number | 1000L Four Layers Blow Molding Machine(YK1000L-4) |
Type | 4 Layers (Four layers, Four extruders) |

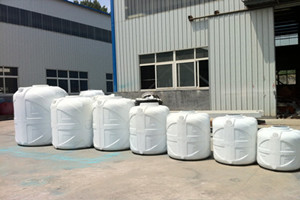

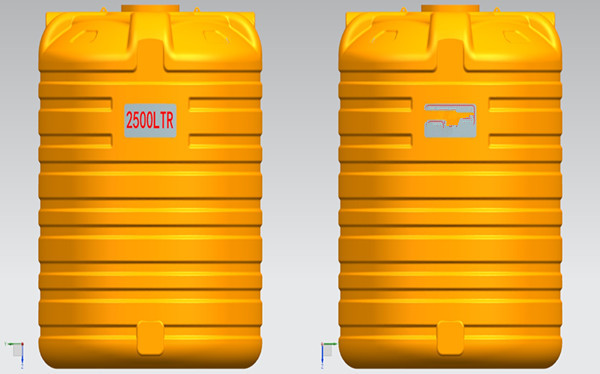

Product range | 400 L—1000 L water tank |
Material process | HDPE/ HMWHDPE |
2.Payment terms
FOB Qingdao port, China
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
3. Configuration
Parison Control Thickness Control | MOOG | Japan |
PLC | SEIMENS | Germany |
Temperature Control Module | SEIMENS | Germany |
Servo Valve & Servo Transducer | MIRAN | Italy |
Inverter | SEIMENS | Germany |
Hydraulic Oil Seal | DZ | Taiwan |
Intermediate Relay | OMRON | Japan |
Pneumatic Valve | AIRTECH | Taiwan |
Hydraulic Pump & Valve | YUKEN | Japan |
Pneumatic Switch & Contactor | SEIMENS | Germany |
Screw Motor | SEIMENS | Germany |
Reducer | GUOMAO | China |
4.Parameters
No | Items | Specifications | 1000 Liter |
|
| Model No. | 4 layers |
|
| PRICE FOB QINGDAO |
|
|
| Processing material | HDPE/HMWHDPE |
1 | Extruders | Screw Diameter (Internal) | 90mm grooved barrel |
Screw Diameter (Middle Layer) | 100mm grooved barrel |
Screw Diameter (Outer Layer) | 90mm grooved barrel |
Plasticizing Capacity | 350kg/h |
L/D | L/D30:1 |
Gear Box Type | Hard surface |
Extruder Drive Motor (Inner) | 55KW |
Extruder Drive Motor (Middle) | 55KW |
Extruder Drive Motor (Outer ) | 55KW |
Heating Load | 50KW |
Max Screw Speed | 60RPM |
2 | Accumulator Die Head | Accumulator capacity | 45L |
Pusher Cylinder | 420*320mm |
Heating Load | 75KW |
Parison Control Cylinder | 420X40mm |
Die-Core size [ Min / Max] | 500MM |
Inverter | Siemens |
Max. parison weight | 33KG |
3 | Moulding Clamping Unit | Max opening between Clamping Plate | 2600mm |
Min opening between Clamping plate | 1000mm |
CLAMPING PLATEN Size | 1600x1500mm |
MAX MOLD SIZE | 1400X1600MM |
Mould Clamping Force | 800KN |
Mould Thickness | 930-1350 |
Clamping Pull Bar | 120mm |
4 | Stretching and Blowing Unit | Spreading stroke | 400-800mm |
Vertical stroke max. | 300mm |
5 | Electrical Control Panel | Thickness controller | 100 points Moog |
Main Operation Panel | Siemens |
Die Head Control Temperature Control | Siemens |
|
|
6 | Hydraulic System | Hydraulic Drive motor (Main) | 45KW |
Hydraulic Drive Motor (Parison Control) | 7.5kw |
Oil Tank Capacity | 1000L |
7 | Gripper | Gripped stroke | 350mm |
Discharge Stroke | 2000mm |
8 | Hopper Loader | Loader | 100kg 2pcs |
Hopper | 800kg 2pcs |
9 | Production rate | Productivity | 12-15pcs/h |
of 1000 ltr. | Product Weight | 10-19kg |
10 | Delivery period |
| 4 months |
11 | Weight of Machine |
| 30Ton |
| Size of Machine | [L xW xH ] (M) | 9mx4.5mx5.2 |
12 | Total power |
| 325KW |
13 | Average power Consumption |
| 180KW |
