Brief Introduction:
HFTF-78C is a new series thermoforming of high-perfor-mance、high yield,high quality,high efficiency,lower consumption,suitable for mass production.Integrated new concept and future trend technology control system to ensure production efficiency and stability .
Application:

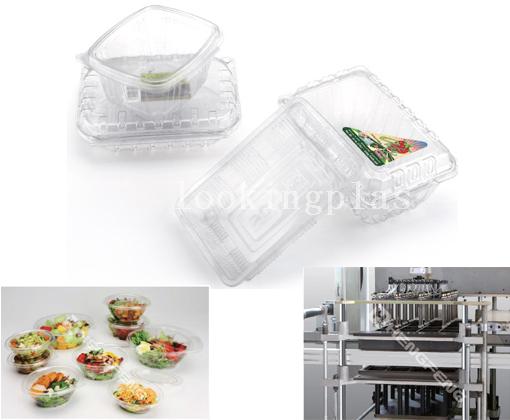

suitable for forming PP、PS、OPS、PET、PLA、PVC sheet that can be widely used to produce all kind of plastic containers,lids and trays etc.
Features:
1.Combination to different types,cutting in mould-stacking or forming-cutting-stacking or forming-punching-cutting-stacking depend on products.
2.All movements driven by servo motor.
3.Forming,feeding,cutting and stacking processing are complete production automatically.
4.Mould with rapid change device,easy maintenance.
5.Forming with 6bar air pressure and vacuum.
6.Maximun speed 50 cycles per minutes.
Main technical parameter:
Model | HFTF-78C | HFTF-78C/2 | HFTH-78C/3 |
Max tool size with pneumatic clamp frame | 750X560mm | 750X560mm | 750X560mm |
Max pos/neg depth | 120/120mm | 120/120mm | 120/120mm |
Max sheet width | 820mm | 820mm | 820mm |
Max sheet indexing | 620mm | 620mm | 620mm |
Clamping force | 750KN | 350KN | 350KN |
Sheet thickness range | 0.2-2.5mm | 0.2-2.5mm | 0.2-2.5mm |
Max no-load speed | 50cycles/min | 50cycles/min | 50cycles/min |
Punching press |
Max cut dimensions | 750X560mm |
Platen clamping force | 350KN |
Upper/lower platen stroke | 140/140mm |
Cutting press(steel rule cutting) |
Max cut dimensions | 750X560mm |
Platen clamping force | 750kn
|
