Operation principle of double planetary power mixer
Double planetary power mixing machine with low speed mixing and high speed dispersion component parts, low-speed mixing part adopts the planetary gear transmission, also in the impeller rotation, the material around the movement, so it can achieve the ideal mixing effect in a short period of time.
High speed dispersion component revolution together with the planetary frame, and at the same time, high speed rotation, the material is subjected to strong shear and dispersion, the effect is several times to the ordinary mixing machine. The dispersion component classified into monodisperse shaft and shaft double dispersion, customers can choose according to need.
Two double frame agitator in the barrel body and the revolution and rotation, can realize the vacuum, heating, cooling, according to the conditions of speed regulation, with a mixing barrel can be a machine barrel, pressing machine, make the material more convenient.
Features of double planetary power mixer
Double planetary power mixer is a no dead point with dispersion, mixing equipment, suitable for polymer lithium ion battery liquid and liquid lithium ion battery electrode paste, electronic adhesive,adhesive, mold glue, silicone sealants, polyurethane sealant, anaerobic adhesives, inks, paints, cosmetics, ointment, isoelectronic, chemical, pharmaceutical, food, building materials, chemical industry, for the liquid and liquid, solid and liquid materials mixing, reaction, dispersion, dissolution, emulsification, homogenization process.
Application scope of double planetary power mixer
Energy.: all kinds of battery paste, paste (lithium battery, nickel chromium battery, nickel hydrogen battery, fuel battery etc.);
Electronic and electrical appliances: solder paste, ceramics, magnetic materials, silica gel ink, electronic adhesive, PVC palstic rubber,electronic component sealant, hot melt adhesive, all kinds of precious metal powder, paste;
Chemicals :all kinds of sealants, adhesives (silicone sealant ,polysulfide sealant, sealant for insulating glass, waterproof sealant, construction sealant, anaerobic adhesive,stone adhesive ,mold adhesive ), synthetic resin rubber ,printing ink,slurry , abrasive (paste), wax products, synthetic rubber, synthetic resin, all kinds of powder materials, ceramic pigment;
Pharmaceutical products: all kinds of ointment, gel (Medical paste, infantile umbilical paste, cold paste,ice paste, eye paste), dental products;
Cosmetics, daily chemical products: moisturizing cream, lipstick, emulsion, gel, facial mask, mascara, foundation, nail polish, toothpaste, soap;
Food: all kinds mixing for paste and cream type , seasoning, jam, chocolate.
Main function indexes and parameters
Machine Size | 2430*1400*3600(L*W*H) |
Planetary shaft motor | Power 22KW, Rotational speed 980r/min |
Decelerator | 1:43 |
Planetary shaft speed | 22.5r/min |
Scattered shaft motor(2Piece/Set) | Power 30KW, Rotational speed 980r/min |
Scattered shaft speed | 980r/min |
Dosing and using crock size | φ1200×1000 |
Vacuum system | Vacuum degree -0.093MPa |
Dispersion machine weight | 4800Kg |

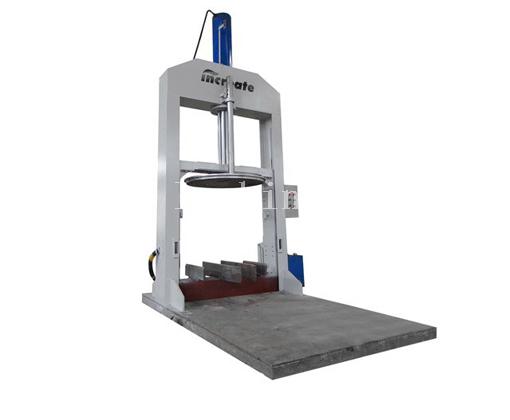

Pressure feeder weight | 2500Kg |
