Introduction

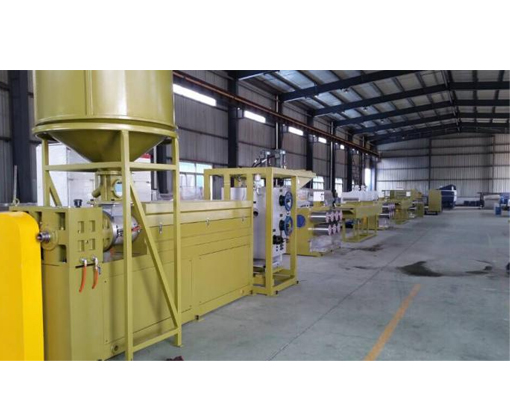

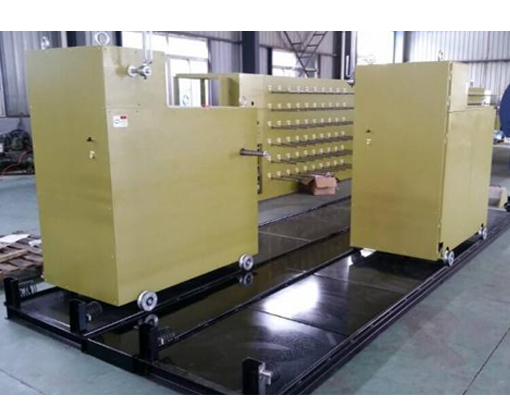

Brush monofilament extruding machine is special design for different kinds of brush which is composed of extruder, stretching unit, hot water tank and winding collector.
The perfect mechanical properties ensure the stability of monofilaments and the sophisticated electric control system make the operation convenient and efficient.extruder machine manufacturer in China.
Usage
This machine is applying for the following monofilament:
 |
PET, PP monofilament for broom, painting, cleaning… |  |
 |
PBT monofilament for tooth brush… |  |
 |
PA monofilament for making up… |  |
 |
Specification
Dia.of screw | Φ45-90mm |
Raw material | PET、PA、PP、PE |
Capacity | 15-150Kg/H |
Ratio of L/D | 26-33:1 |
Screw material | 38CrMoALA |
Motor of extruder | 11-45Kw |
Quantity of spinneret | Single or double die |
Holes of spinneret | 60-1000 holes |
Stretching unit | 2-3 sets |
Stretching method | Hot water tank |
Winding unit | Big collectors |
Electric control system | 2-4 electric cabinet |
Total Installed capacity | 120-350Kw |
Total dimension(L×W×H) | 24000-52000mm×2800mm×2300mm |
