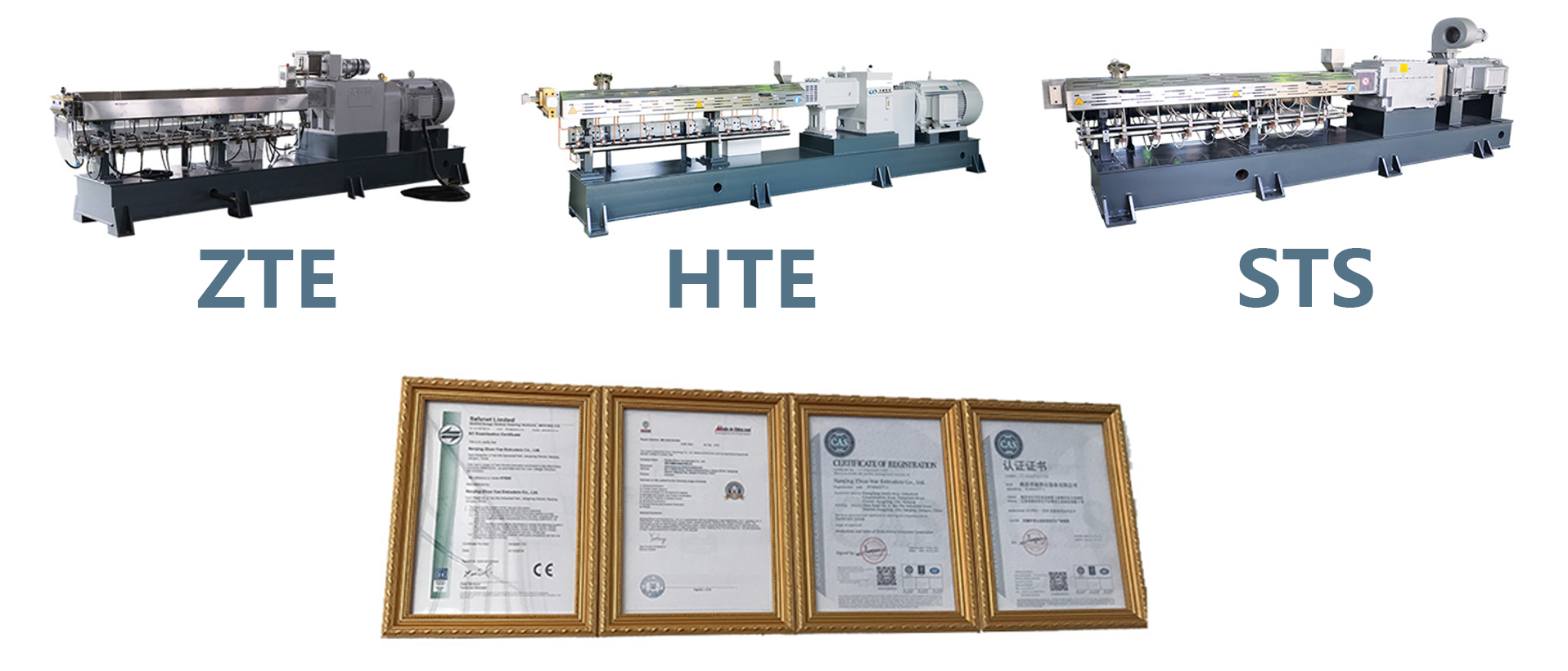

Product Description
Type | screw diamter
(mm) | L/D | speed(min) | power(kw) | capacity(kg/h) | weight(kg) |
ZTE35 | 35.6 | 32-60 | 600 | 18.5 | 30-100 | 1100 |
ZTE50 | 50.5 | 32-60 | 600 | 55 | 90-250 | 2200 |
ZTE65 | 62.4 | 32-60 | 600 | 90 | 150-400 | 4000 |
ZTE75 | 71.8 | 32-60 | 600 | 160 | 260-700 | 5200 |
ZTE96 | 93 | 32-60 | 600 | 315 | 500-1400 | 6500 |
HTE35 | 35.6 | 32-60 | 600/900 | 22/45 | 70-200 | 1200 |
HTE50 | 50.5 | 32-60 | 600/900 | 75/90/110 | 220--550 | 2300 |
HTE65 | 62.4 | 32-60 | 600/900 | 132/220 | 350-1000 | 4200 |
HTE75 | 71.8 | 32-60 | 600/900 | 200/355 | 550-1800 | 5500 |
HTE96 | 93 | 32-60 | 600/900 | 400/900 | 1000-3000 | 7000 |
STS35 | 35.6 | 32-60 | 600/900 | 37/55 | 80-230 | 1300 |
STS50 | 50.5 | 32-60 | 600/900 | 110/132 | 250-700 | 2400 |
STS65 | 62.4 | 32-60 | 600/900 | 200/280 | 450-1300 | 4300 |
STS75 | 71.8 | 32-60 | 600/900 | 315/400 | 700-2000 | 5600 |
STS96 | 93 | 32-60 | 600/900 | 630/900 | 1300-3800 | 7100 |
Application
1 Modification of engineering-plastics
2 Polyolefin/TPE filled with Alloy
3 Dyeing in Polyolefin/engineering-plastic
4 Color masterbatch, flame masterbatch, filler masterbatch and additive masterbatch
5 Reproduce recycled plastic
6 PVC compounding
Feeding system
·Twin screw, single screw and vertical forced feeder system, conical feeder and other kinds of options.
·Preventing leakage of materials and bridging phenomenon, extending the processing range of material.
Transmission system
·Attractive appearance design
·Gear material of high quality.
·High efficiency oil lubrication system
·Reliable warning and interlocking device
In order to ensure the efficient, long-term stable operation of the transmission case.
Extruding system
·The range of the processing section of L/D can be from 24 to 68.
·Building block and modular design of the combination of the barrels and the screw of high elements.
·Carefully selected steel of high quality.
In order to ensure the durability of the devices, reducing the customer's regular repairment and mainteance.
Base frame
·Redesign of the base frame structure to increase the overall strength, is conductive to the overall accuracy of the equipment.
Pelletizing method
·Providing a flexible solutions of pelletizer and auxiliary, including water cooling strand, air cooling strand, air cooling concentric hot pelletizing, air cooling eccentric hot pelletizing, water-ring hot face pelletizing, water-ring water-jet hot pelletizing, ecccentric water mist, underwater pelletizing and various pelletizing plans.
Electrical control system
·According to customers' requirements, providing instrument controls and many kinds of control system like PLC, PCC.
·Have realized the whole unit control, whole procedures control and remote control.
Cylinder
The finish machining of the cylinder completes in machining center, the accuracy grade can reach IT6 which is beneficial to reduce the unit energy consumption of the product.
The modular design of the barrel makes various types of combinations be possible, the fast and reliable heating completed by electric heaters, and the water cooling.
Barrel's Specifications

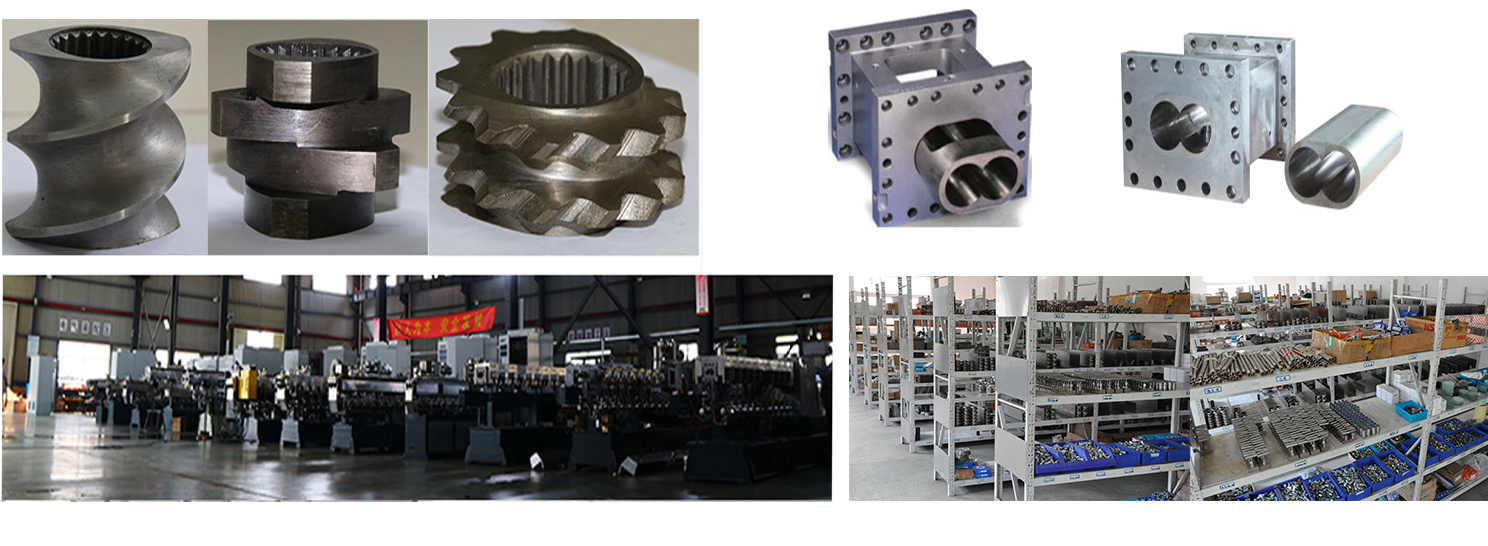

Screw spindle and Screw element
The screw element shaped by accurate grinding through the CNC grinding machine specialized for screw element which is unique in country, the goodness of fit and the surface finish are far more than the product made by conventional processing methods
The screws meshed turn in the same direction, and clean each other, so there is little residue on the screw which is easy to clean.
The spindle and screw system have the next characteristics:
Different screw elements with different leads and lengths.
Mesh pieces: different mesh pieces with different angle, quantity or thickness.
The screw head installed at the axial direction of screw.
The screw element link with the spindle by splines
