Purpose/application field:

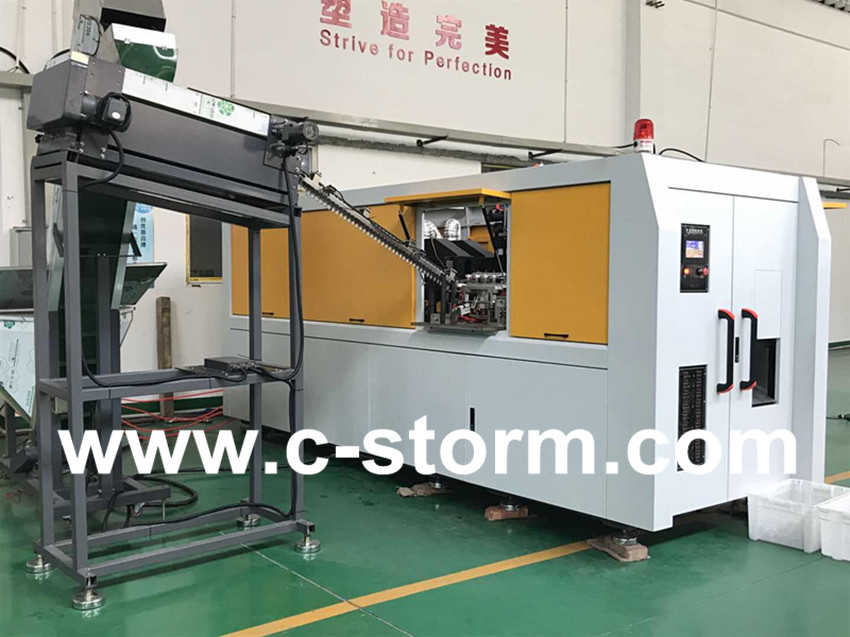

The series of manual vase machine is a type of two-step automantic tensile bottle blow machine.This series has a four -chamber model and can meet 0.6L ,2L,5L,10L and 20L blowing capacities. The variety covers pesticide bottle,cosmetic bottles,jar and other bottles in odd shapes.
Machine feature:
● Easy to operate and maintain;
●The machine adopts Electric Servo drive system,can save 50% waste of energy than the pneumatic system;
●Constant temperature system and Voltage stabilizing transformer,ensure the machine stability and low energy consumption;
● Compared to other machine, the High precision filter in the machine can extend the valve’s life by 2-3 times
●The heater , using Far infrared lights to heat the preform,it has the advantage of energy-saving and heating efficiency. And the preform can rotate by themselves, it ensures the preform heated uniform.
●There is almost no maintain cost.
Technical parameters:
| ITEM | UNIT | ST-2L/2F |
PRODUCT SYSTEM | Number of cavity | / | 2 |
| Clamping force | Kg | 16000 |
| Clamping stroke | mm | 130 |
| Max.container volume | L | 2 |
| Max.container diameter | mm | 105 |
| Max.neck diameter | mm | 38 |
| Max.container height | mm | 330 |
| (max.volum)output | Pcs/h | 1700-2000 |
ELECTRICAL SYSTEM | Total power | kw | 28 |
| Actual heating power | kw | 21 |
Air system | Operation pressure | Kg/ cm2 | 7 |
| Blowing pressure | Mpa | 3.5 |
| High pressure air consuming | L/min | 1600 |
| Low pressure air consuming | L/min | 1200 |
MACHINE | Main Machine dimension | mm | 1500*1900*2100 |
| Main Machine weight | kg | 2000 |
| Auto loader dimension | mm | 2.3*1.4*2.9 |
| Auto loader weight | kg | 250 |
NOTE:Plesse tell me what plastic product you want to produce and I will help you choose the best model for your needs. We believe that our competitive prices high quality and excellent service will bring us both benefits.
Brand introduction:
Ningbo C-storm Plastic Machinery Limited is a professional bottle blowing machine manufacturer specialized in research, design, manufacturing and marketing. The founders of C-storm has been working for producing various PET plastic blowing machine for over 20 years, and have developed advanced technology and development capacity, strong professional technology reserve, and rich production experience. The plant has been engaged in production of dozens of semi-automatic and full-automatic plastic blowing machines. Including mineral water bottles, Cosmetic Bottle, carbon acid beverage bottles, hot canned bottles, oil bottles, bottles with a handle, and the flasks in various dimensions, with a volume ranging from 10ml to 24ml. The rich variety of products and reliable quality has helped the company win a widespread trust with customers. C-storm has a strong capacity in research, production and high-precision test, multiple high-precision CNC process centers, precisely controlled process equipment, high-quality management team, experienced engineers and rich production team source, which can all provide strong guarantee for civilized production, quality and delivery period. There has been a constant flow of purchasers for our equipment, so that the plant has to work in full swing and great efficiency to meet the customer demands.
The company has been holding the principle of honesty, practicality, opening up and spirit of progress, with perfection, innovation, high efficiency and quality as the goal of pursuit, warmly welcomes all our customer friends from home and abroad and establishes wide cooperation with them.
