80×156 PVC (wood-plastic composites)crust foam Thin Plate Production Line
Parameters and merits of PVC (wood-plastic composites) Skinning Expansion Plate Production Line

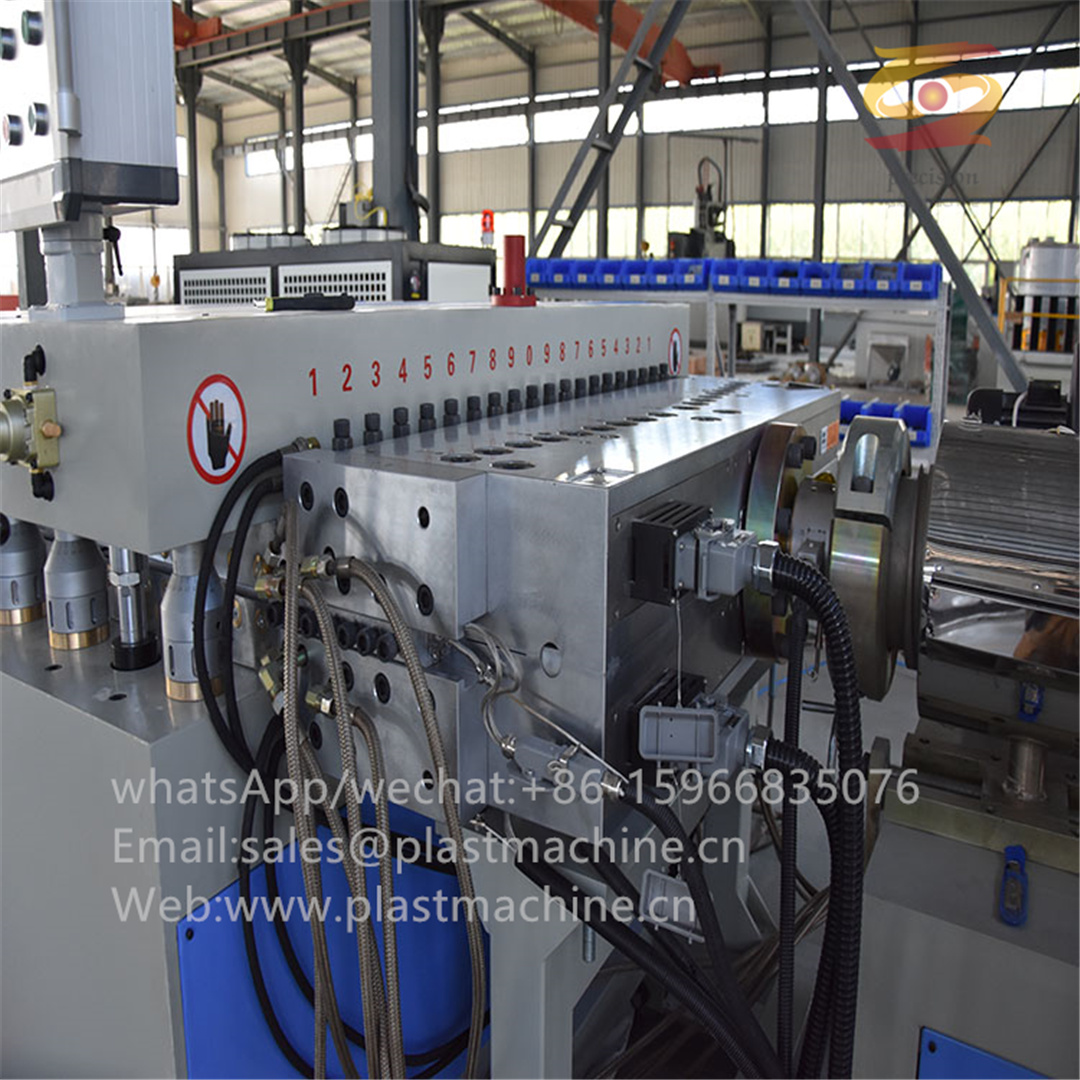

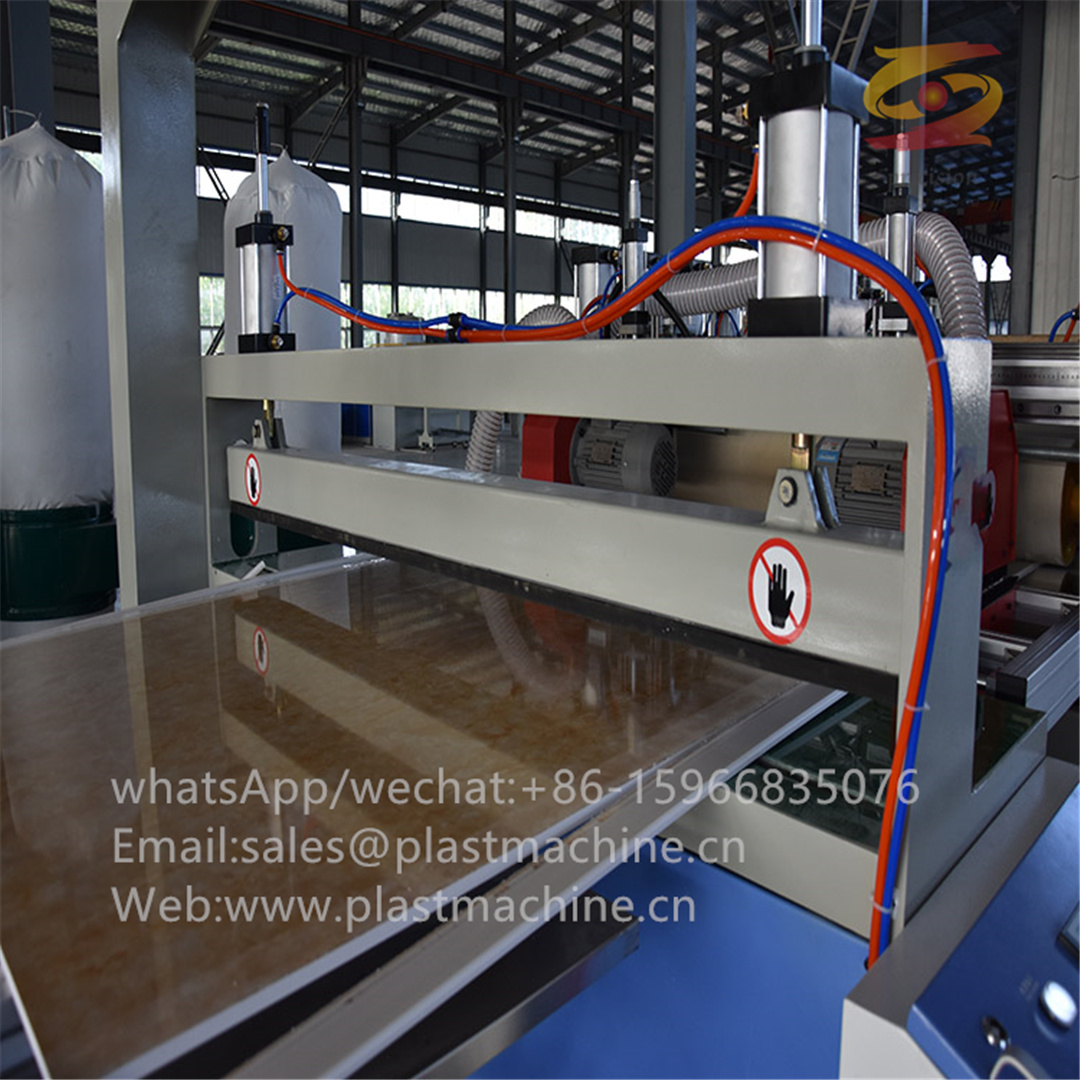

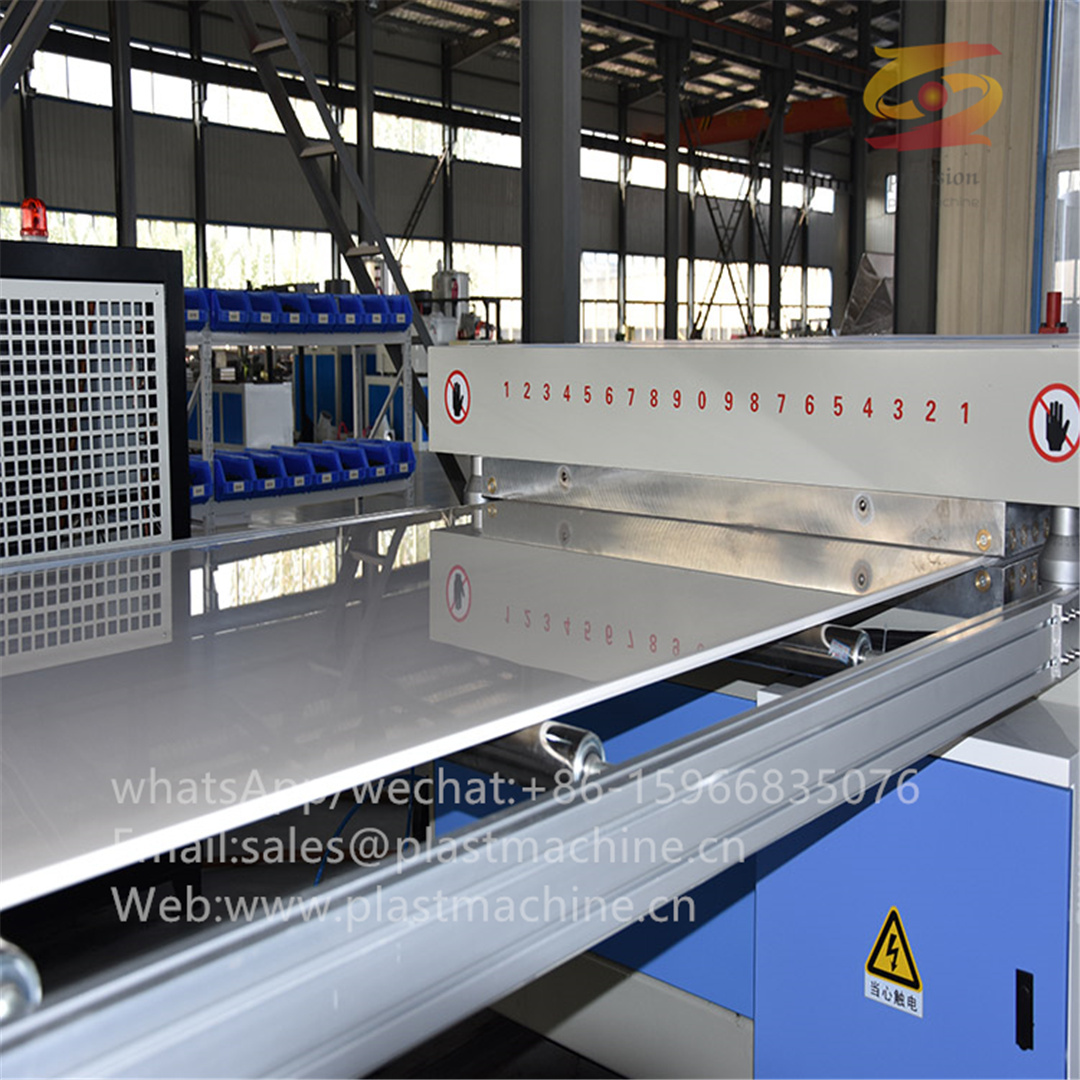

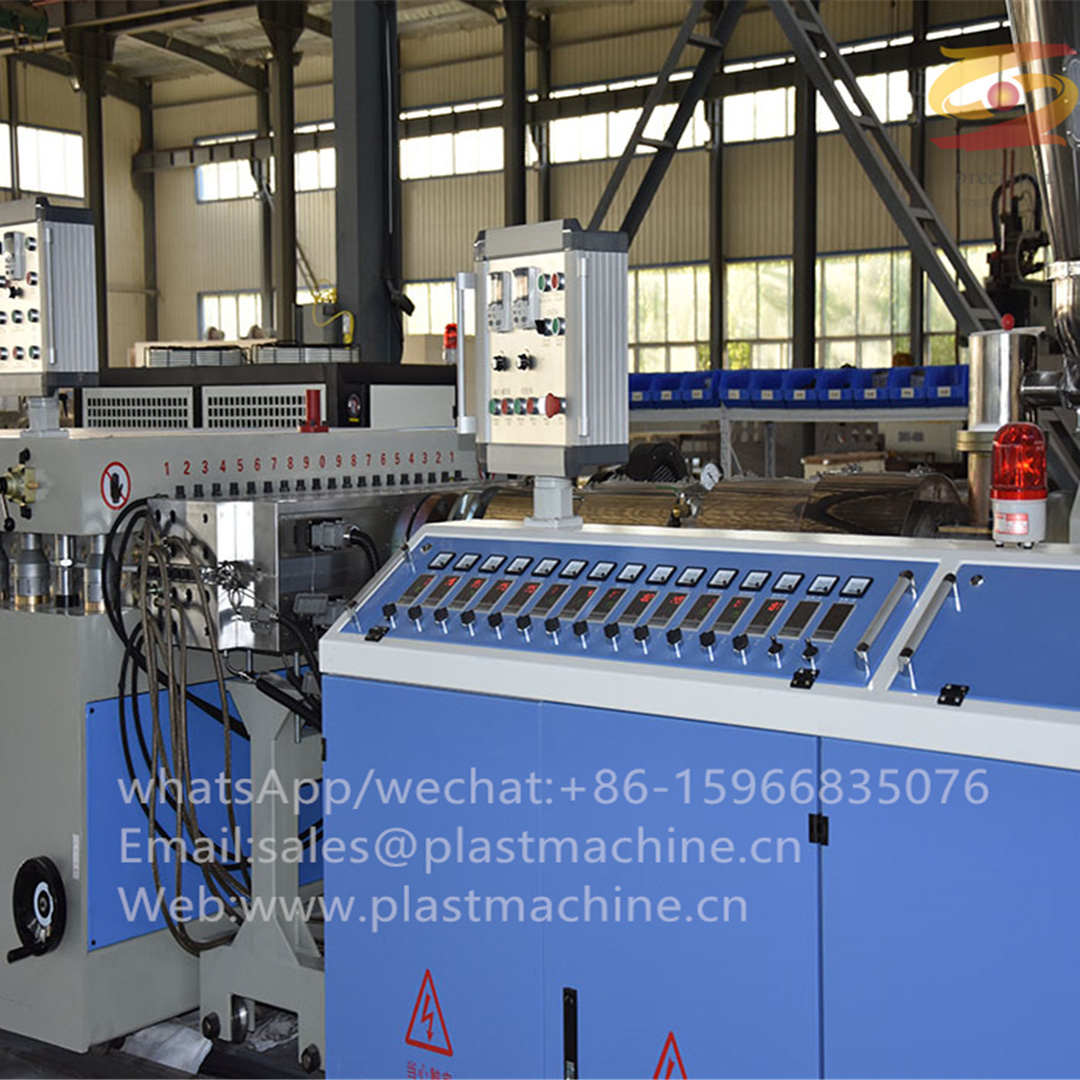

This production line composes of conical twin screw extruder, plate dies, forming table, hauler and cutter. The extruder adopts the specially designed screws, improving the integration and plasticizing between PVC and wood powders, and enhances the rigidity of products significantly. The products enjoy a promising future for applications.
Product width :1, 220mm
Product thickness :1-10mm
Extruder model:SJSZ-80×156
Maximum extrusion output:300Kg/h
Main motor power:75KW
Dimension:L × W × H = 18m×2m×2.6m
Weight :22T
Installed capacity :140KW/h
