Equip. Name | Name of Technical Parameters | STM-240 |

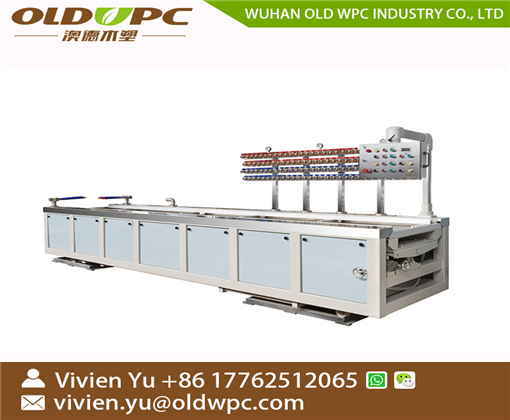

Vacuum Calibrator | Tray Length(L)Material: Stainless Steel 3Cr17 | 4000mm |
High-qualified Vacuum Pump Power and Quantity | 5.5kw*2 sets |
Cooling/Vacuum Connector Quantity | 20/20 |
Calibrator’s Forward and Backward Moving Distance | 500mm |
Lifting Distance by Center Height Lifting Method | 4 Specified Lifters ±50mm |
Tray’s Lateral Movement Distance by Method of Lateral Moving | Specified Mobile Rail ±30mm |
Center Distance of the two T-type Walls Installed in the Mould | 360mm |
Eddy Air Pump Drying Device | 0.75kw |
Dragger | Valid Clamping Length (L) | 2100mm |
Linear Speed | 0-3m/min |
Compressing Mode | Air-operated Crank Arm |
Speed Adjustment Mode | Frequency Control |
Two Independently Specified Drive Motor Power | 1.1kw*2 sets |
Rubber Block Size (mm) | 240*45*25 |

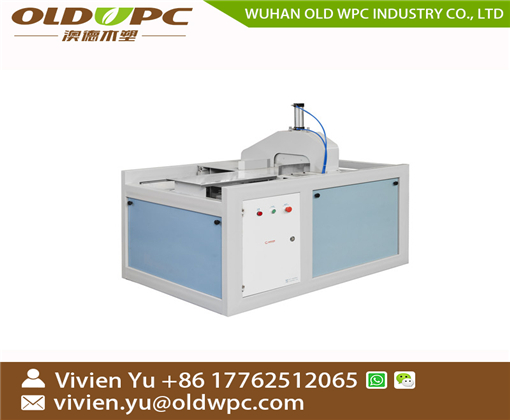

Cutter | Biggest Boundary Dimension of Cutting Products (mm) | 300*80 |
Cutting Motor Power | 1.1kw |
Saw Web Diameter | 405mm |
Laying of collection | Length*Width(mm) | 5000*800 |
Collecting Way | Air-operated Turnover |
