After mixing and banburying the rubber, this time the rubber materials and the auxiliary materials already get the fully compound, which makes the rubber pipe looks more nice and the quality more stable.

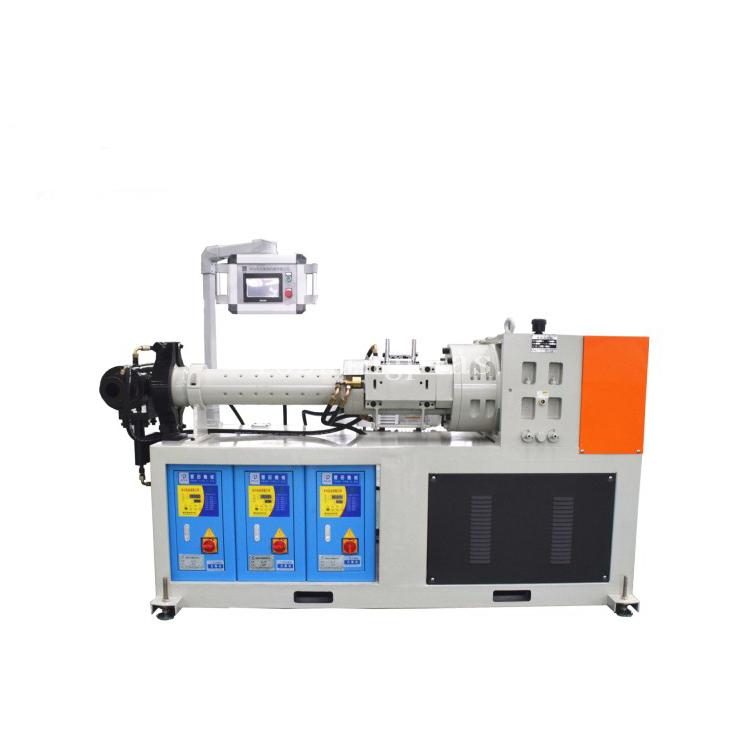

Extrusion of rubber extruder. The film has been cut into strips after mixing. After the extrusion molding of rubber extruder can produce rubber inner tube, which makes the inner tube forming.
After the traction. Transport function.

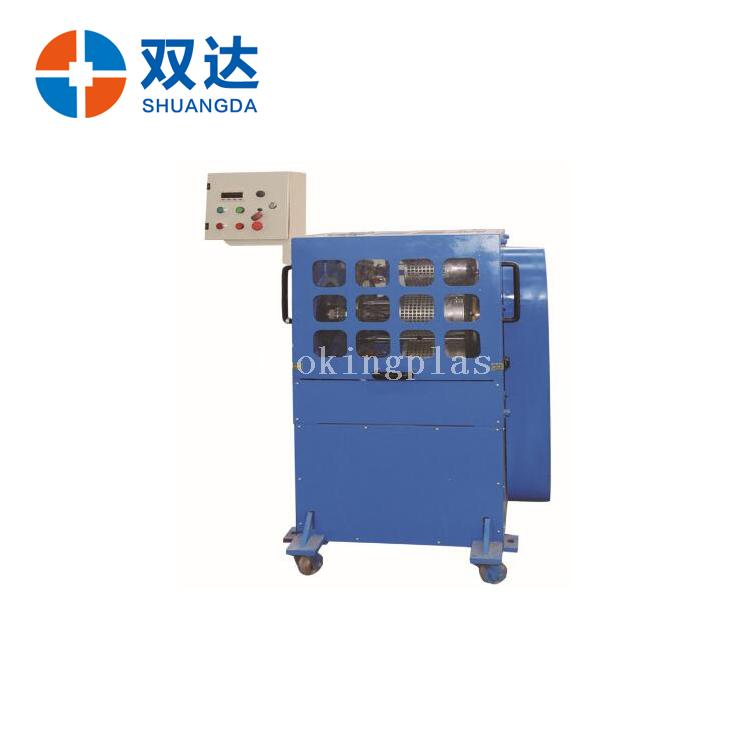

Knitting. The tube, which is drawn by the tractor, is transmitted through the knitting machine to the next stage, which can adjust the density of the knitting machine according to the pressure of the rubber pipe.
Traction. Same as the Step 3.
Extrude the rubber pipe’s outer pipe. This step is familiar to step 1. The inner tube of the knitting machine made up by the knitting machine enters the rubber extruder through the T type head, and the rubber tube blank is wrapped from the other side of the T type machine head.
Traction transfer and automatic cutting. This is automatically cut by the length of the finished blank.
The core loading. The core loading and forming.
High pressure vulcanization. Put the core of the hose into the high pressure vulcanization tank for vulcanization.
Core pulling.
A finished product.
