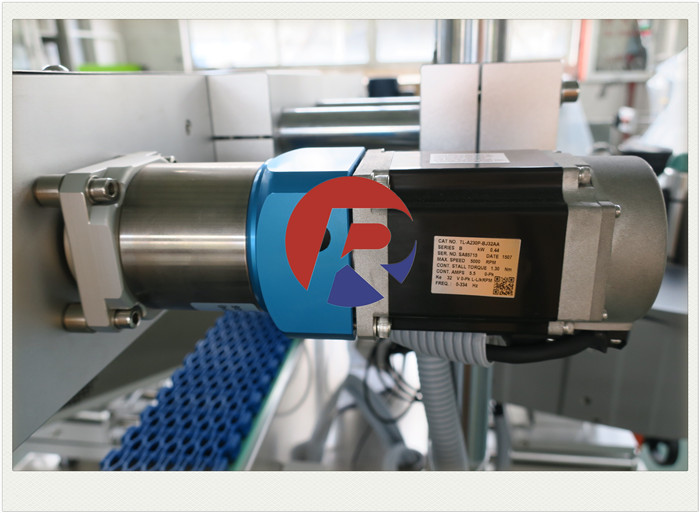

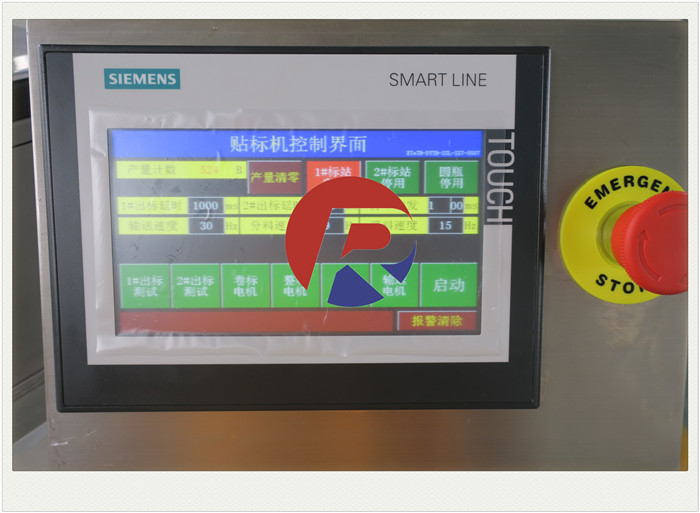

R-LB/D The Front and Back labeling machine can apply the labels on the front side and back side on products, such as especially on oval and rectangular products. An alignment system as well as will be used on all the ovals and any irregular product. This can be accomplished in many different ways for different speed requirements. Design by PLC control and servo motor drive.
Application:
This labeling system can used on food, pharmaceutical and cosmetic industrials, It suits for Round Oval, Square bottles, Rectangular or Irregular containers. Breaking through technologies makes TAPERED bottles labeling as easy as standard front and back labeling.
Specification:
No. | Item | Specs |
1 | Application | Bottles in different shape |
2 | Power | 1.1KW/ 110V/220V 50Hz |
3 | Accuracy | ±1mm |
5 | Air consumption | 5kg/cm ² |
6 | Gross Weight | 350KG |
7 | Dimension | 1800*800*1500 mm |
8 | Capacity | 60-80 bottle/min |
