Reliance Model R-XP automatic glass and plastic bottle water washing machine , cleaning machinery
1.1 Introduction
Washing machine including mesh parts for bottle feeding, ultrasonic washing parts, screw auger for bottle holding and lifting, water and gas cleaning parts, bottle come-out, water -gas circulation.
1.2 Working principle
The glass vials will get into the entrance of washing machine, and the auger will lock and turnover the bottle get into the washing station, the water will clean the insert bottle first after then the gas will try and bottle.then get into next station.
1.2.1 Bottle feeding Mesh belt
Mesh belt for bottle feeding including motor, mesh belt, speed adjusting, highest adjusting device.
1.2.2 Ultrasonic washing parts
Ultrasonic washing pars including conveyor, spray groove, ultrasonic box and ultrasonic transducer.

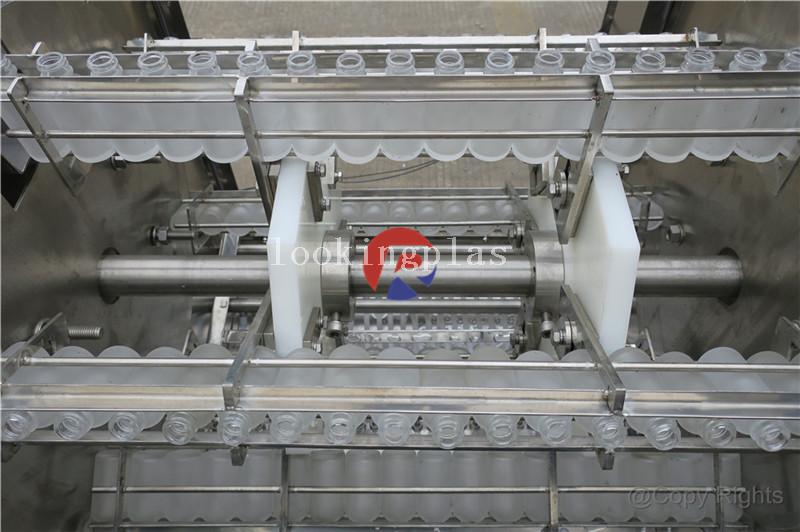

1.2.3 Screw auger for bottle holding and lifting
Screw lifting device including screw auger, lifting cam indexer, lifting wheel.
1.2.4 Water and gas cleaning parts
Waster and gas cleaning parts including auger, star wheel, 4 waster cleaning nuzzles and 6 gas drying nuzzles.

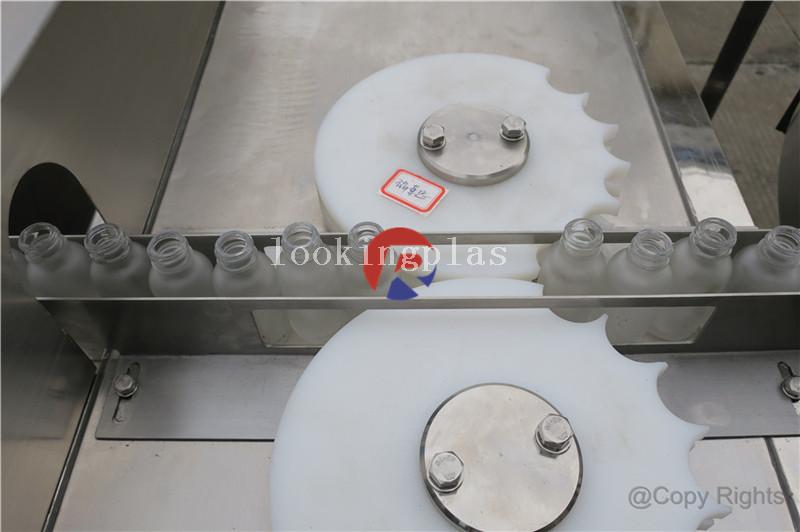

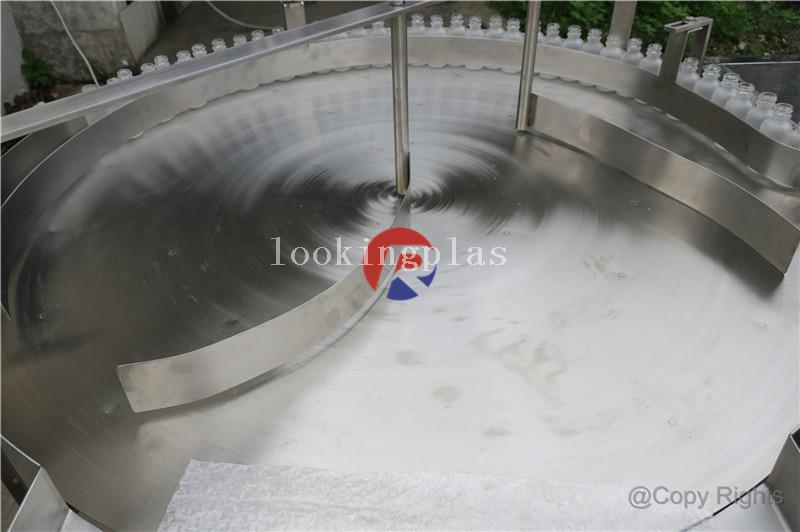

1.2.5 Bottle feed-out parts

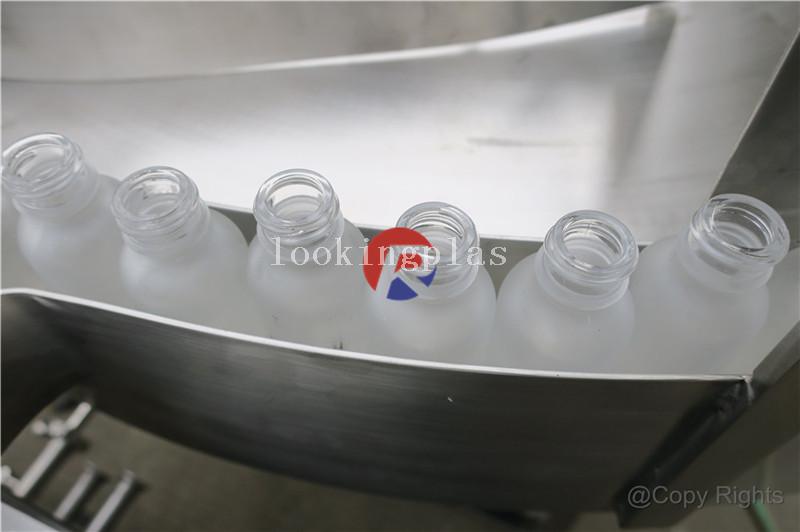

The feed-out parts of washing machine including star wheel, holder , track plate, long barrier and short barrier track tunnel.
1.3 Relative system
Water and gas circulation system including air compressing system, water injection system, and water circulation system.
1.3.1 Compressed air System
Air compressing system including voltage regulator, pneumatic diaphragm valve, Filter, manual diaphragm valve, pressure transmitter, after cleaning the inside and outside of vials, the system will control each air for valves.
1.3.2 Injecting Water system
Injecting water system including Filter, pneumatic diaphragm valve, diaphragm valve, pressure transmitter to finish cleaning of inside of vials.
1.3.3 Water circulation system
Water circulation system including ring-shape Tank, storage tank, circulating water pump, filter, manual diaphragm valve, Pressure transmitter, spray tank and ultrasonic cleaning tank and so on . The water will feeding for no1 and no2 nuzzles for washing inside of bottle and outside of bottle, when the bottles immerse water, nuzzles will full of bottle for cleaning.
1.3.4 Lay out of washing machine :
1.3.5 Main Technical Parameters
Customer Bottles | 50ml |
Productive Capacity | 60-90bottles/min |
Power Supply | 380V 50HZ |
Power | 1.8KW |
Water Consumption | 0.6-1t/h |
Compressed Air | 15m³/h 0.3-0.4kg/cm³ |
Net Weight | 500kg |
Dimension | 1200(L)×1100(W)×1200(H)mm |
1.3.6 Brand List of machine parts:
Name | Brand |
Switch button | Schneider |
Main motor | ABB |
Relay | Schneider |
Air Switch | Schneider |
Frequency changer | Mitsubishi |
AC contactor | Schneider |
Touch screen/PLC | Siemens |
