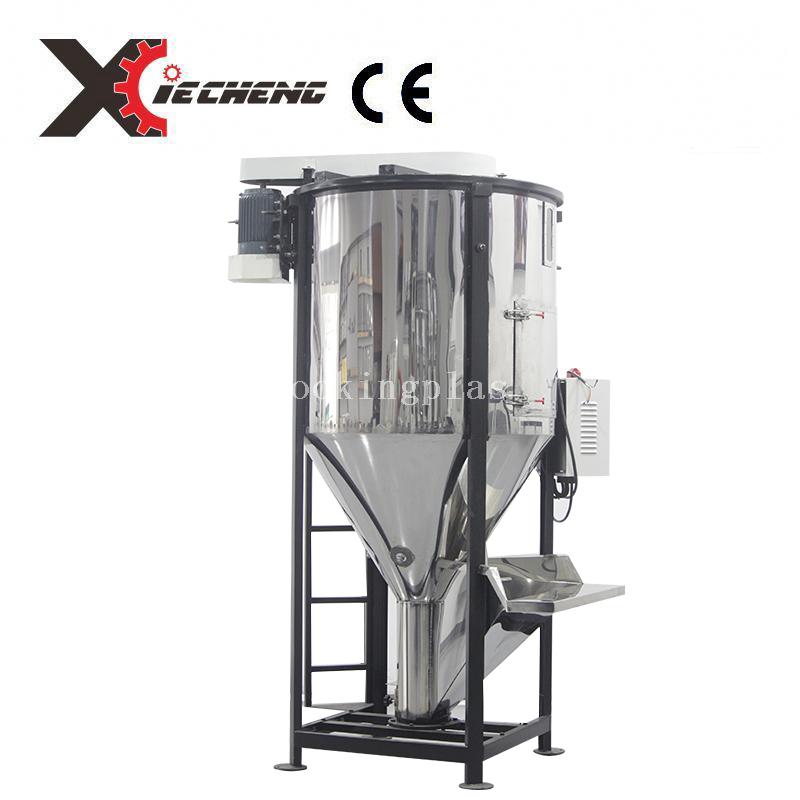

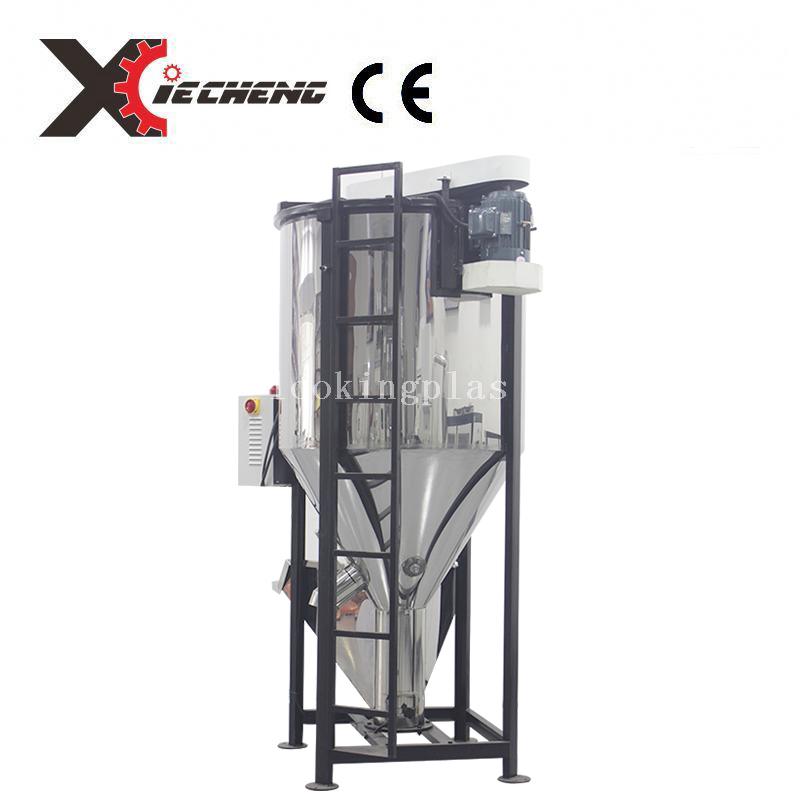

Big Vertical Color Mixer,Plastic Material Mixer,Industrial Mixer Machine With Heater
XC-JBL Series industrial stirrer
Helical circular mixture, fast and evenly stirring
Suitable for all kinds of plastic raw materials and color powder or granules
Fully stainless steel contacting parts, rust free and easy to clean
Installed with power control device to ensure safety
Customizable for drying type model
Vertical
stirrer are able to perform even mixture for large volume of materials
in short mixing time by utilizing the paddles rotation to gather the
material from the bottom of dump center to the top, shed the material
flow back to the bottom and complete the mixing function in short period
of time
Product specification
Model | Power(Hp) | Capacity(kg) | Voltage(V) | Dimension(cm) | Rotating speed(r/min) | Approx.Net weight(kg) |
XC-JB500L | 3 | 500 | 380/3φ | 145*110*220 | 300 | 450 |
XC-JB1000L | 4 | 1000 | 380/3φ | 158*138*310 | 300 | 630 |
XC-JB2000L | 5 | 2000 | 380/3φ | 189*168*347 | 300 | 1050 |
XC-JB3000L | 7.5 | 3000 | 380/3φ | 158*100*140 | 300 | 1250 |
