HDPE structured-wall corrugated plastic pipe manufacturing machinery.

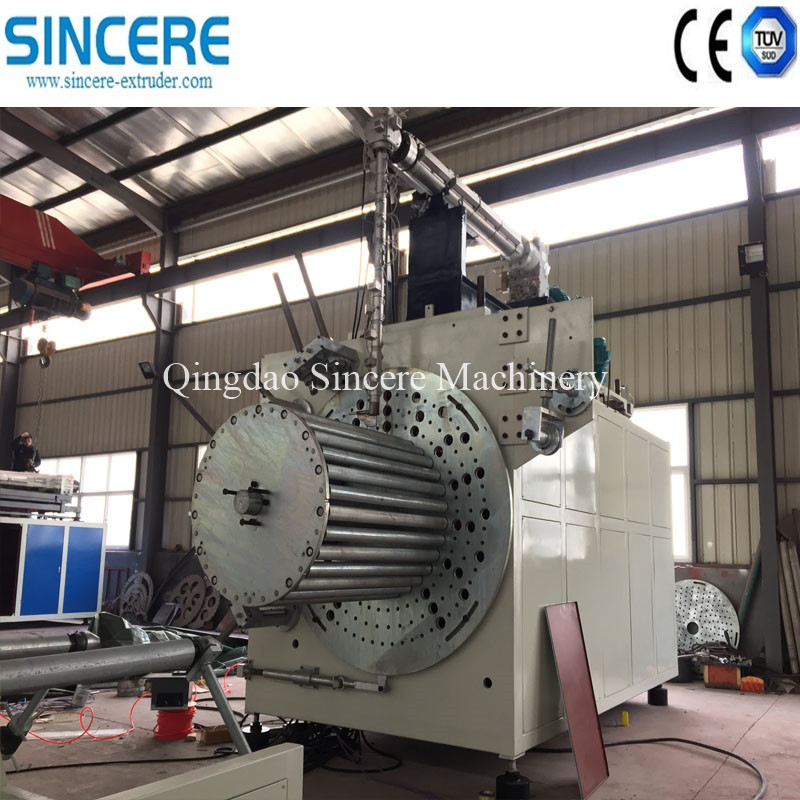

HDPE Hollowness wall winding pipe making machine.

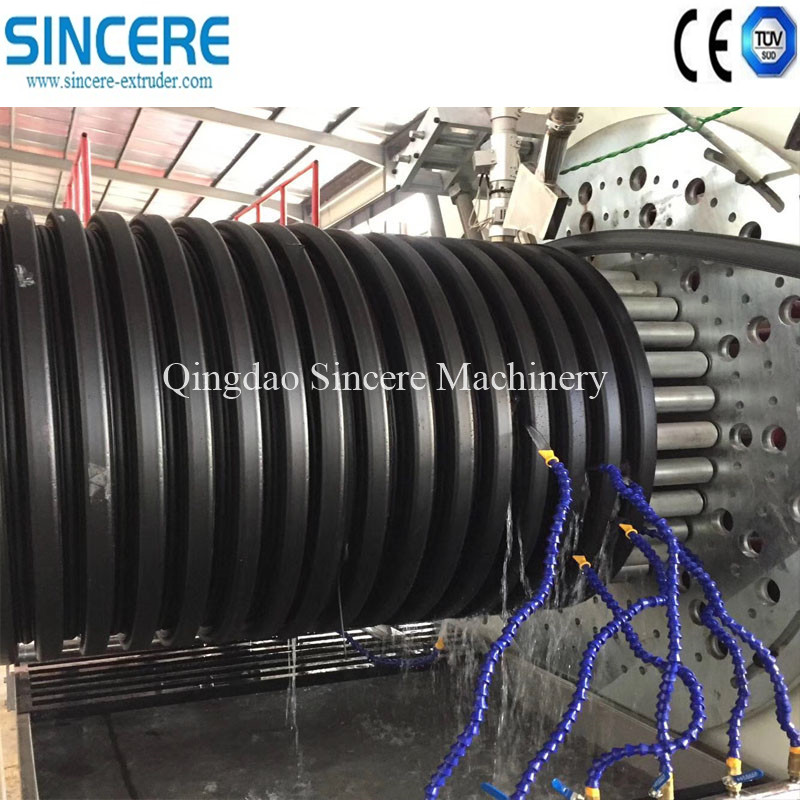

Ribbed reinforced profiled wall hdpe winding pipe extrusion production line

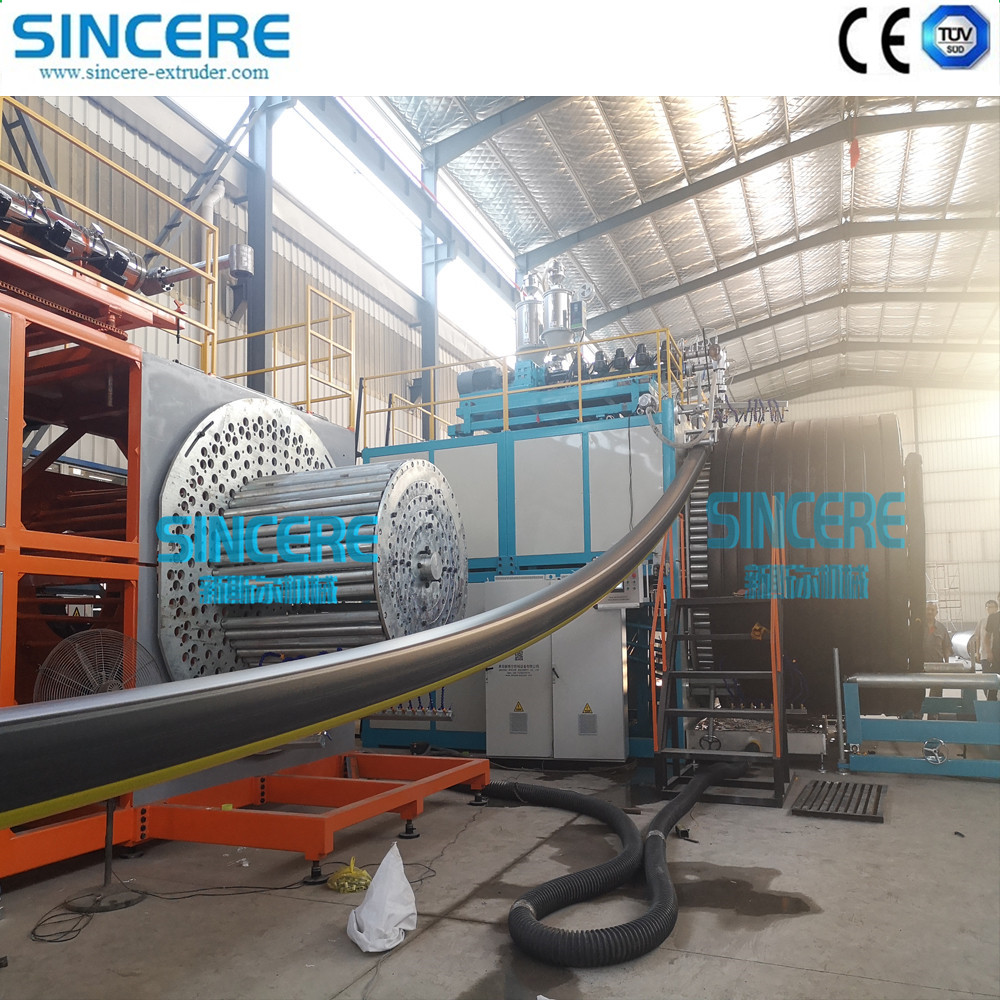

Steel belt reinforced hollow-wall winding pipe extrusion line
Spiral wound pipe extrusion line production video:
https://youtu.be/Gi3bvuP7FJI
https://youtu.be/d4KY1jHdqoM?si=B861lUiMnE5fE1Jq
https://youtu.be/-6nnv5z2IRs?si=9Jkb5buXnvhO4fTw

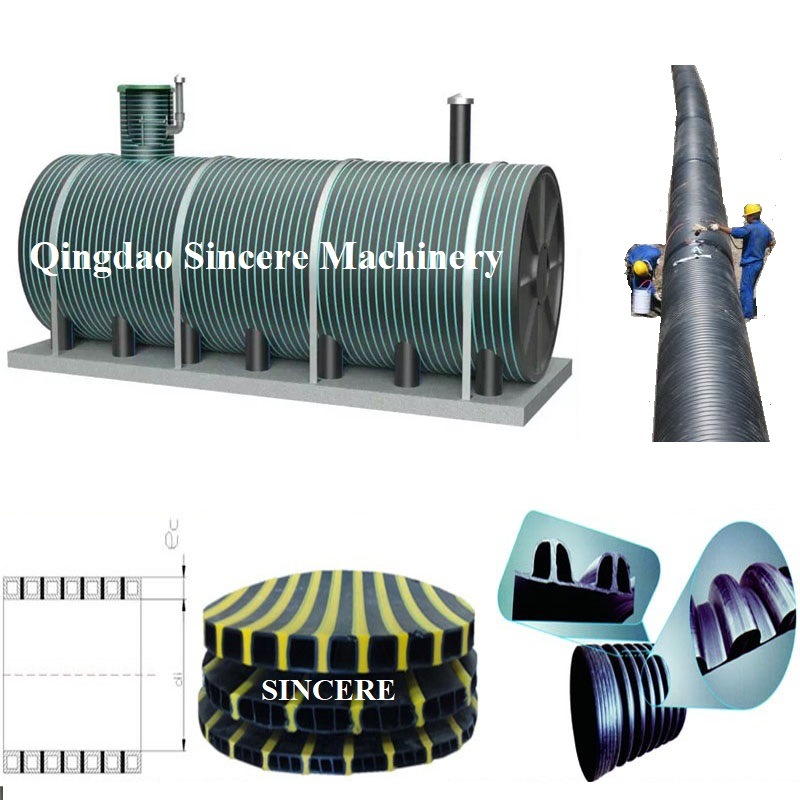

Structural-wall Spiral winding pipes using applications:
- water Sewage and drainage pipes
- Stormwater sewerage pipes
- Rain water sewage plastic pipes
- Cable protection casing pipes
- Civil construction pipelines

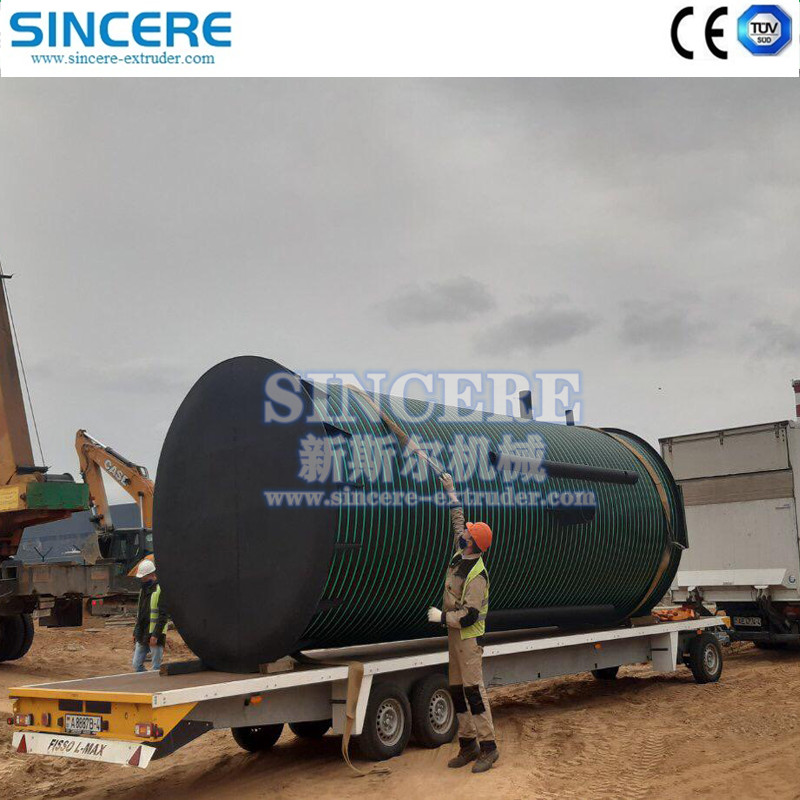

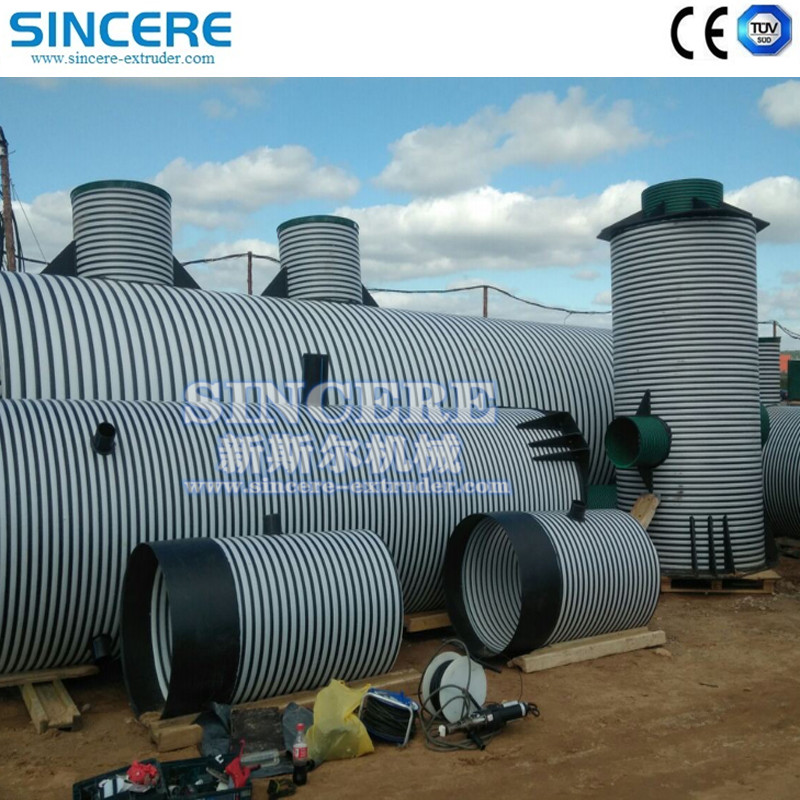

-Chemical storage tanks
- water storage tanks
- Liquid storage tanks

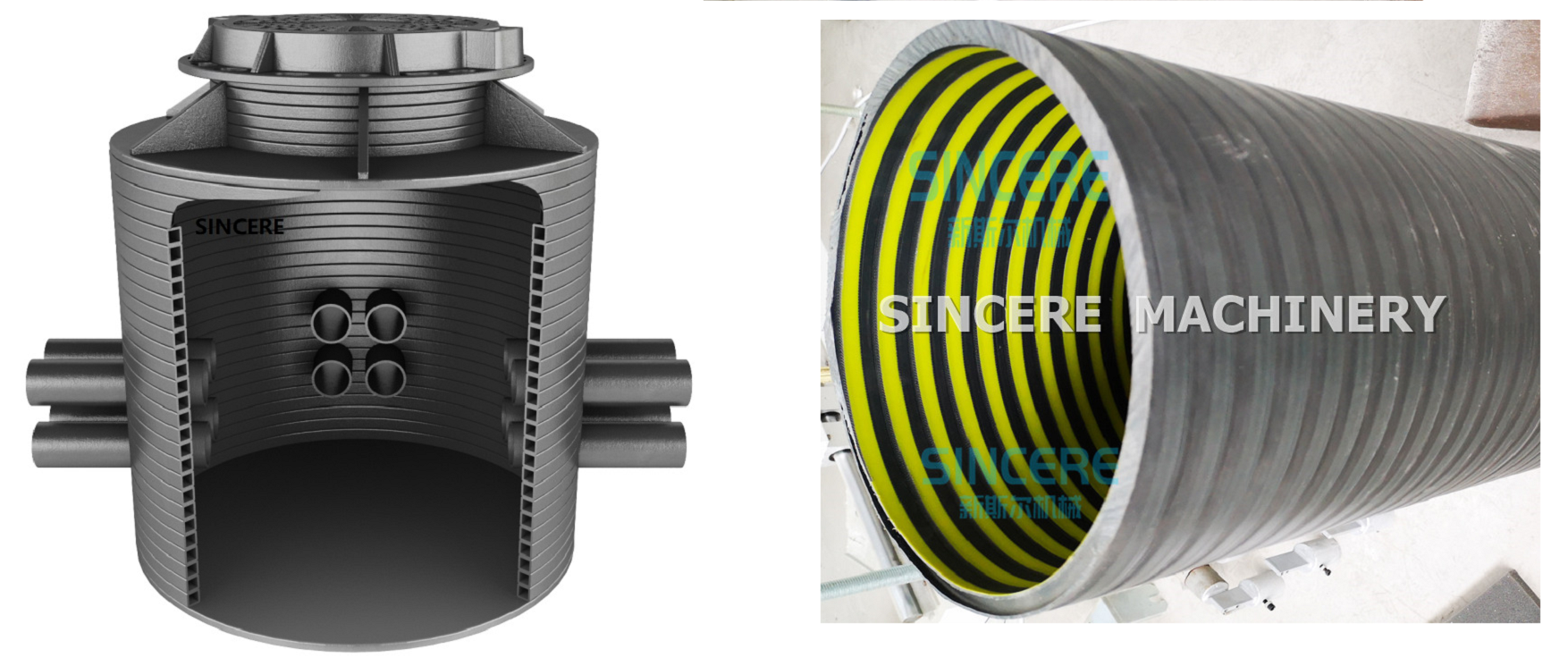

- Manhole wellbore
- wastewater treatment pump station plant
Spiral wound pipes diameters: 200-3000-4000mm
200, 250, 300, 350, 400, 450, 500, 600 ,700 ,800, 900, 1000,1100,1200,1300,1400,1500,1600,1800,2000,2200,2400,2600,3000,4000mm
Ring stiffness of spiral wound pipes: SN2, SN4,SN8,SN12.5, SN16

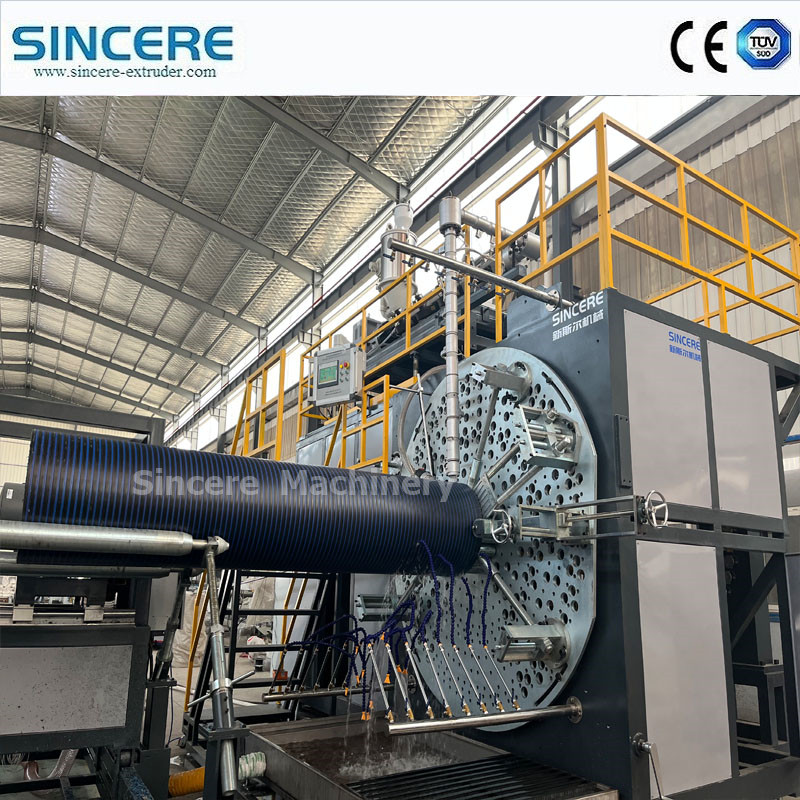

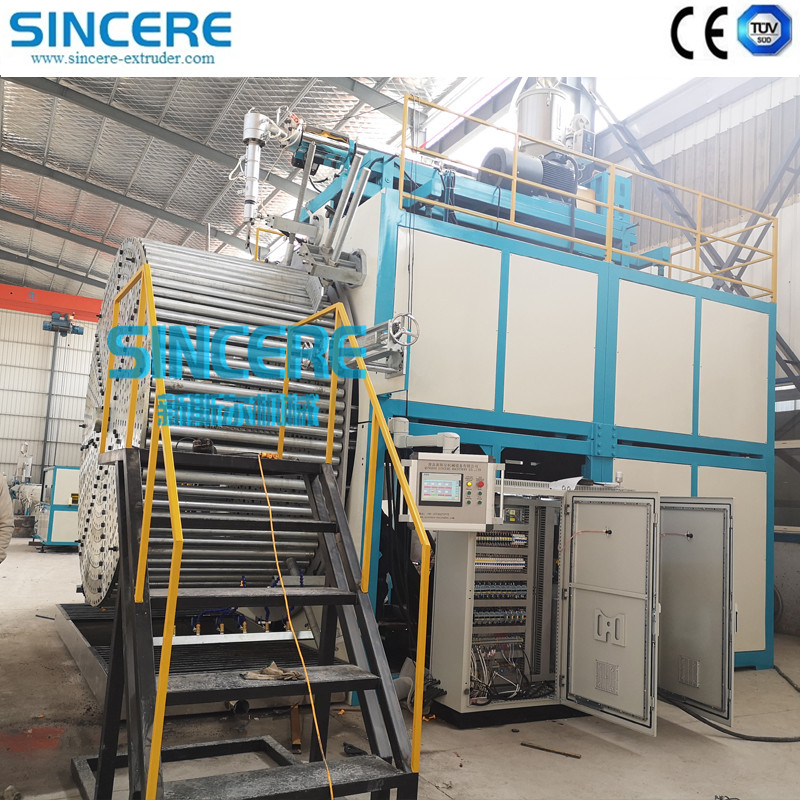

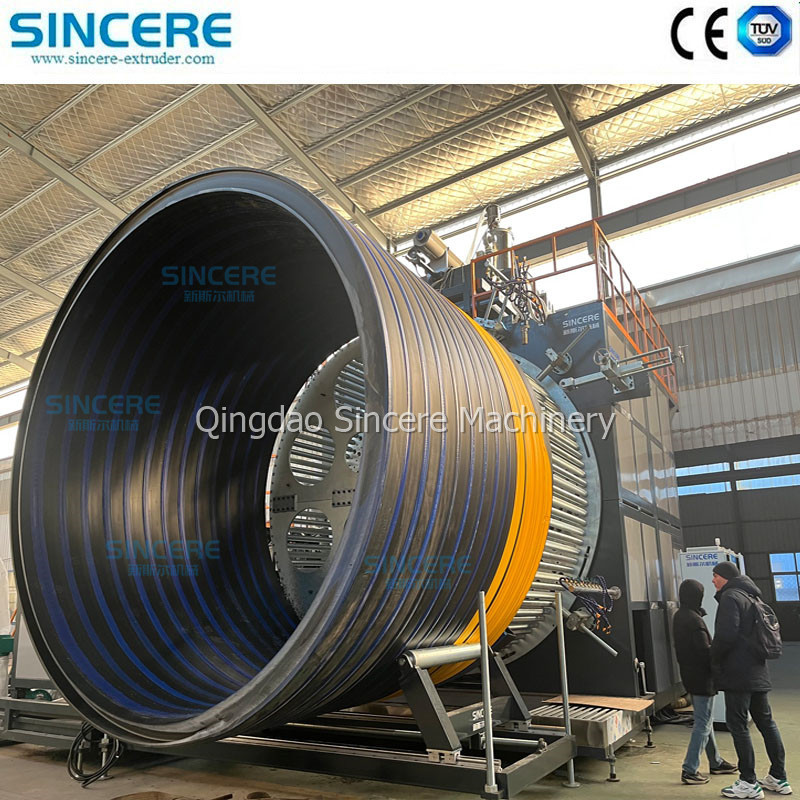

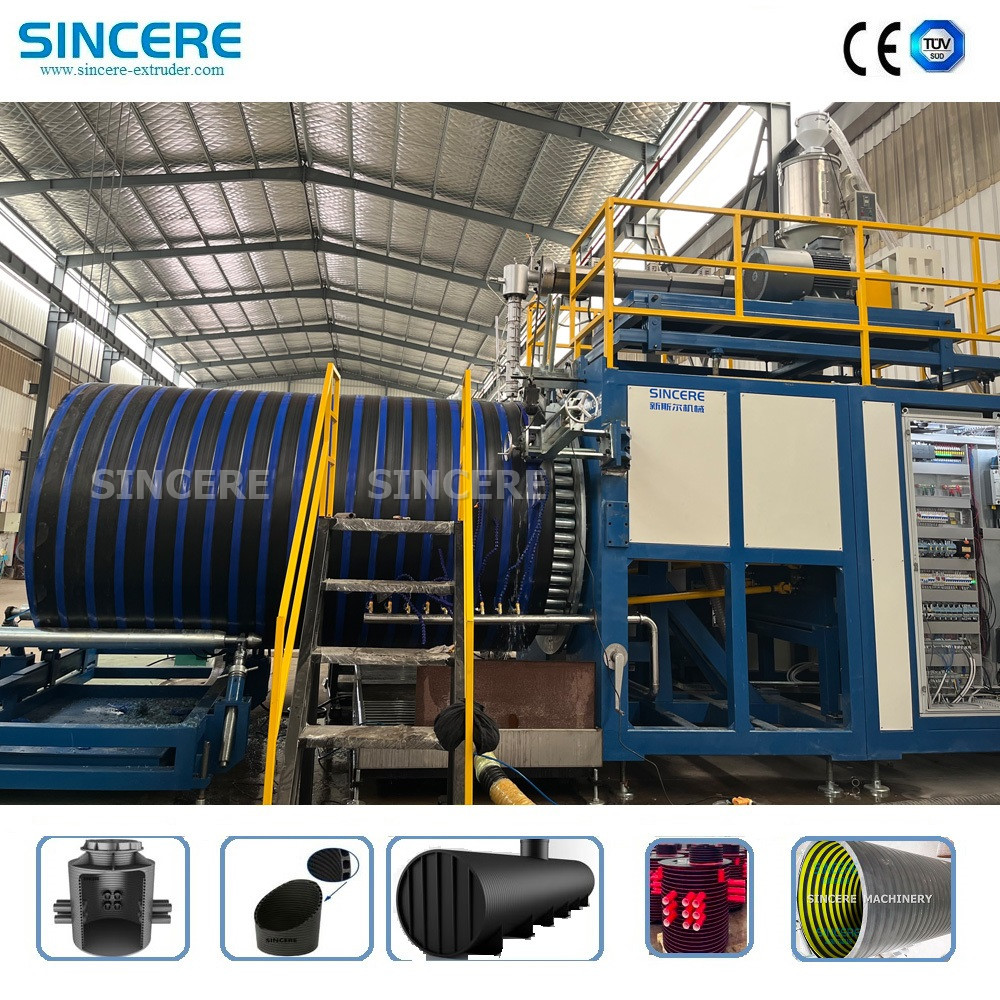

HDPE large diameter hollow wall winding pipe production line:

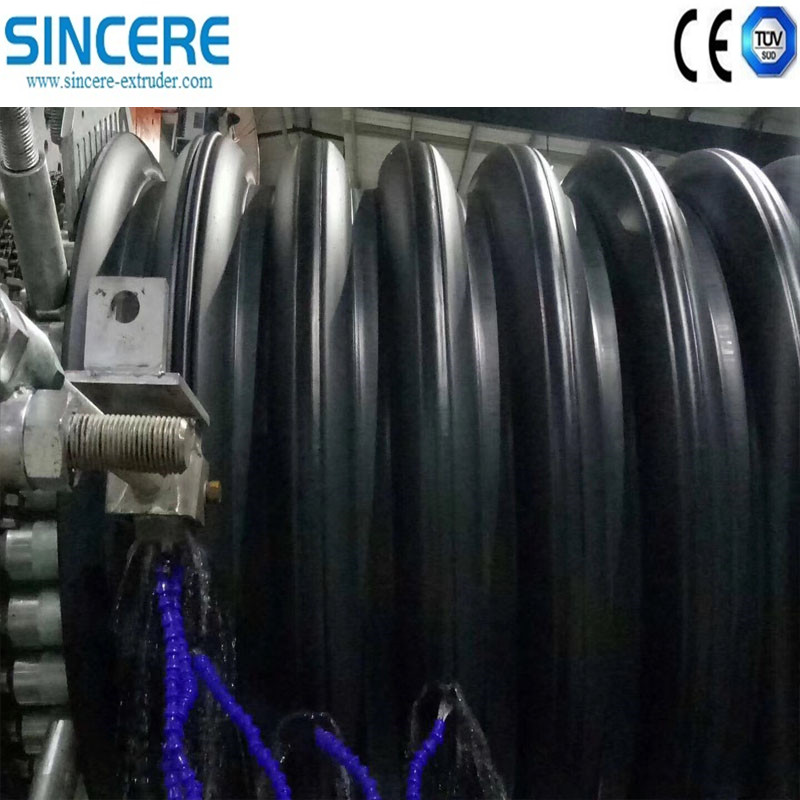

1. HDPE Large diameter winding pipe (diameter from 200mm-3000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.

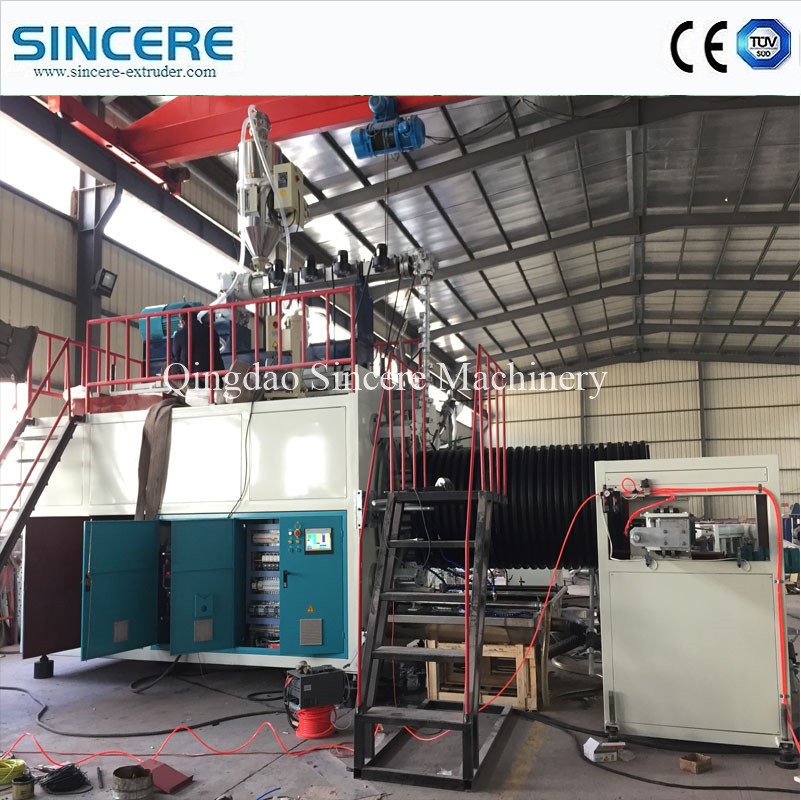

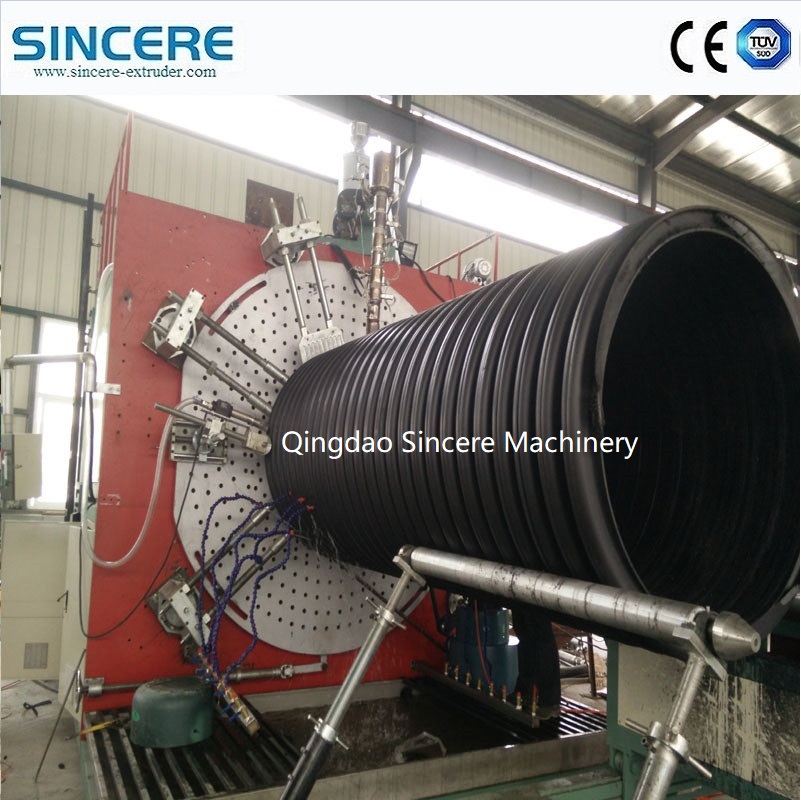

2. HDPE large diameter hollow wall winding pipe production machine .
**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm, 4000mm.
**Our machine is featured with comfortable operation and high performance/price ratio.
**Due to our special design, it is very convenient in transportation and installment.
**We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion.
**By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably.
**Special design for easy maintenance.
**The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.
3. Technical parameters of spiral winding pipe extrusion line:
| Model |
SMSG-800 |
SMSG-1200 |
SMSG-1600 |
SMSG-2400 |
SMSG-3000 |
SMSG-4000 |
| Extruder |
SJ-65 |
SJ-55 |
SJ-90 |
SJ-65 |
SJ-100 |
SJ-65 |
SJ-120 |
SJ-90 |
SJ-120 |
SJ-90 |
SJ-150 |
| Output capacity |
150kg/h |
60 kg/h |
300 kg/h |
120 kg/h |
400 kg/h |
150 kg/h |
400 kg/h |
200 kg/h |
600 kg/h |
300 kg/h |
800
kg/h |
| Pipe diameter |
200-800 mm |
400-1200 mm |
800-1600 mm |
1200-2400 mm |
2000-3000 mm |
2400-4000mm |
| Production speed |
2-16 m/h |
2-12 m/h |
1-6 m/h |
0.5-5 m/h |
0.3-3 m/h |
0.1-2m/h |
| Installed Power |
180 kw |
250 kw |
300 kw |
400 kw |
500 kw |
600kw |
Spiral corrugated pipe extrusion line
spiral winding corrugated pipe extrusion machine.
Double walled spiral corrugated pipe extrusion production line
For hdpe hollow wall winding plastic wasted pipes, we also provide recycled machines:shredders,crusher,and granulating line.
Single screw granulating line for PP PE.
Two-stage granulationg line for PP PE.
Water cutting type pelletizer for plastic PP PE.
