Spiral winding corrugated pipe extruder and extrusion line.
PP PE spiral corrugated pipe production equipment.
PP PE composite spiral wound sewerage pipe extrusion machine.
Inner ribs reinforced spiral winding corrugated pipe extrusion machine line.

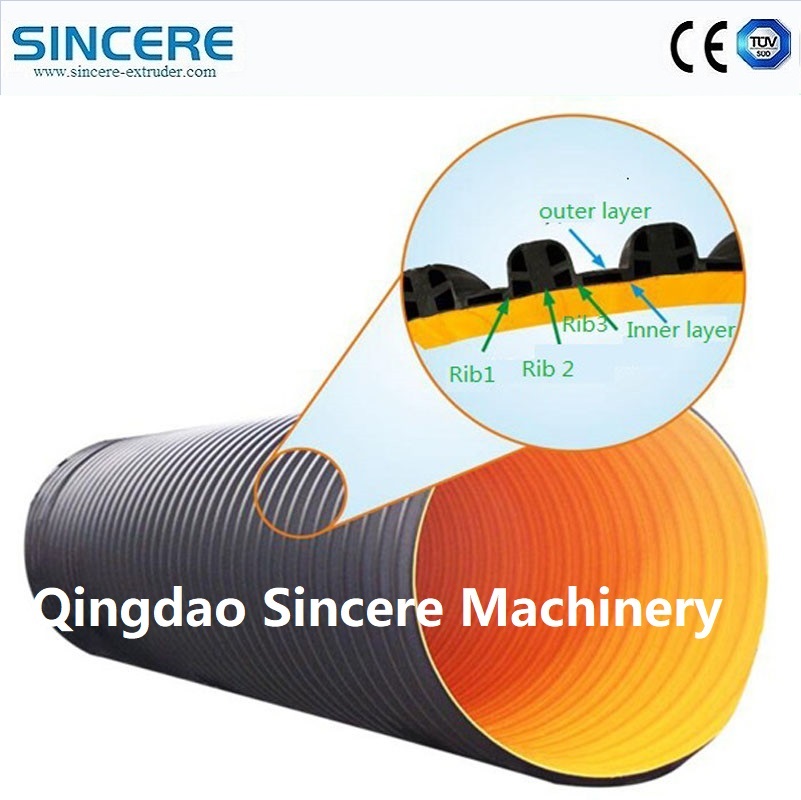

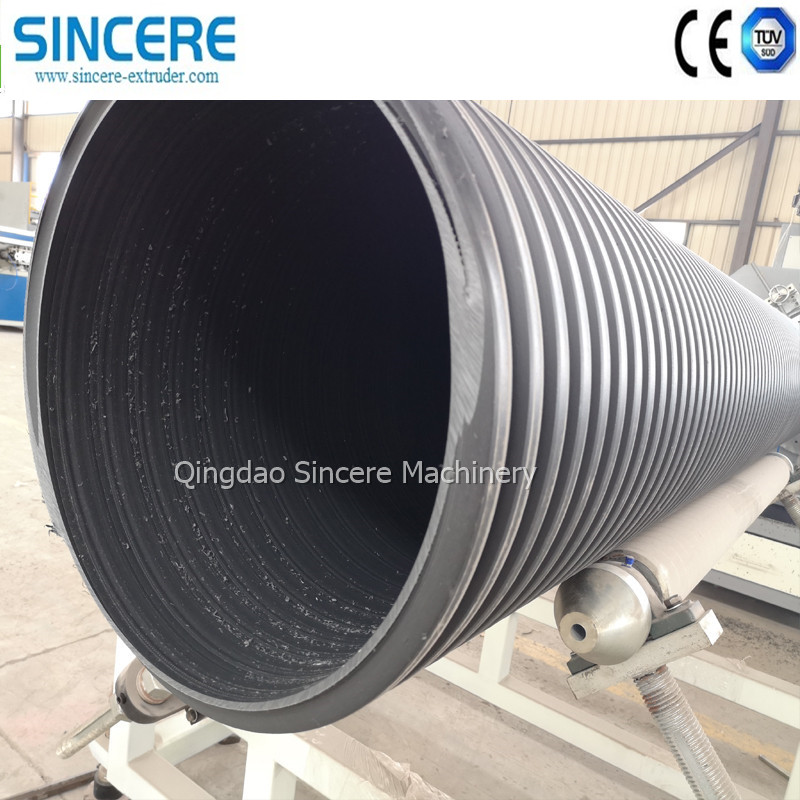

Double-layer internally ribbed reinforced polyethylene spiral-wound pipe is spiral-wound welded pipe with complex structural profiles. The inner ribbed spiral pipe has a double-wall structural wall and is widely used as a non-pressure pipe for municipal drainage, rainwater drainage, wastewater sewerage, stormwater drainage and so on.
Spiral wound corrugated pipe diameters: from 200mm to 4000mm
Spiral wound corrugated pipe ring-stiffness: SN6, SN8, SN10, Sn12.5, SN16
Characteristics of inner ribs reinforced spiral wound corrugated pipes:
1. Corrosion-resistant, suitable for all kinds of industrial and domestic wastewater
2. Smooth inner wall: low resistance, fast drainage

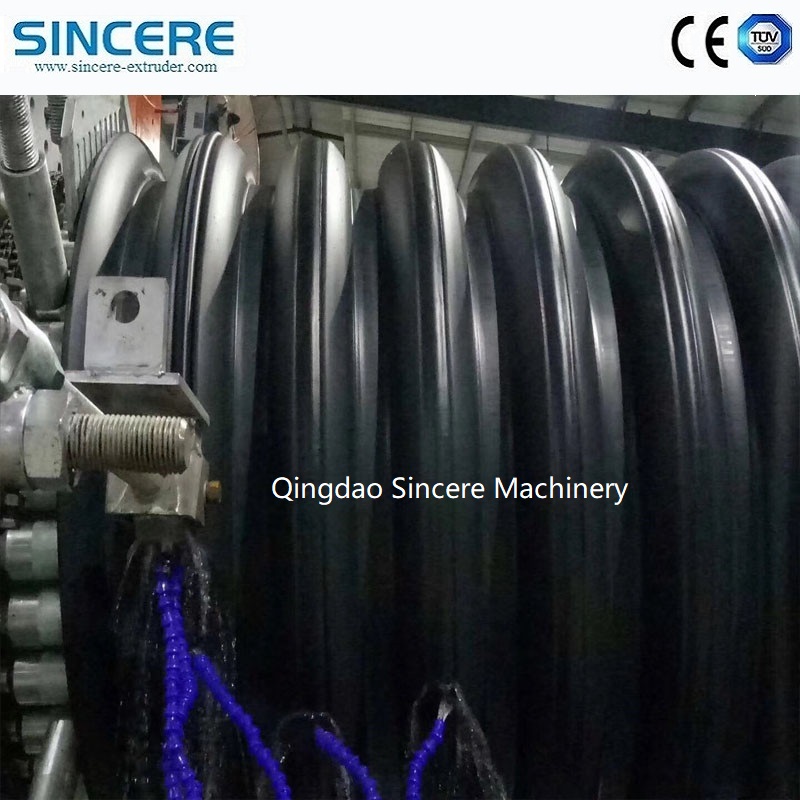

3. Pipe winding corrugated structure: the corrugated structure is reasonable, which is conducive to expanding the contact surface with the soil as well as filling the backfill in the wave valley of the pipe and the pipe itself to bear the pressure of the surrounding soil, to achieve the pipe-soil joint action.
4. Pipe corrugation in the middle of an upright internal rib greatly improves the stability of the crest, which is conducive to pressure and impact resistance.

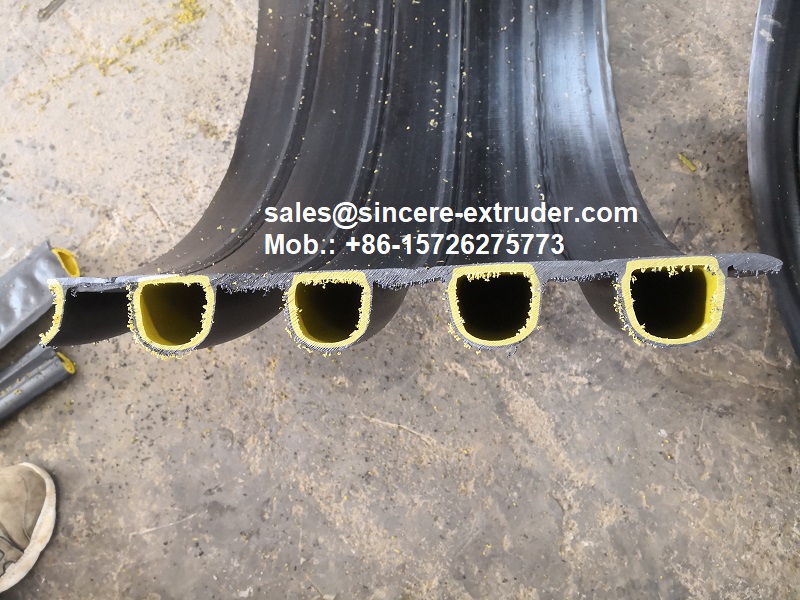

5. Plastic strips (profiles) fusion area of the width of a large, effective, similar to the pipe of the seam tensile strength of high
6. High strength: profile structure wall, double-walled, dense and strong
7. High ring stiffness, large calibre: high ring stiffness, light weight, large calibre, cost-effective.
8. Good resistance: strong impact resistance, anti-vibration
9. Light weight: easy construction, cost saving
10. Anti-aging: stable performance, applicable under normal conditions, service life up to 50 years.
11. Good anti-settlement performance: the material used is high-density polyethylene and a small amount of colour masterbatch, to ensure that the overall pipe ring and axial flexibility, is very good anti-settlement performance, low requirements for the trench foundation.
Pipe connection using socket electric fusion to ensure zero leakage, stainless steel clamp connection is convenient and reliable. Connection process is simple, construction is convenient, and the project cost is low.

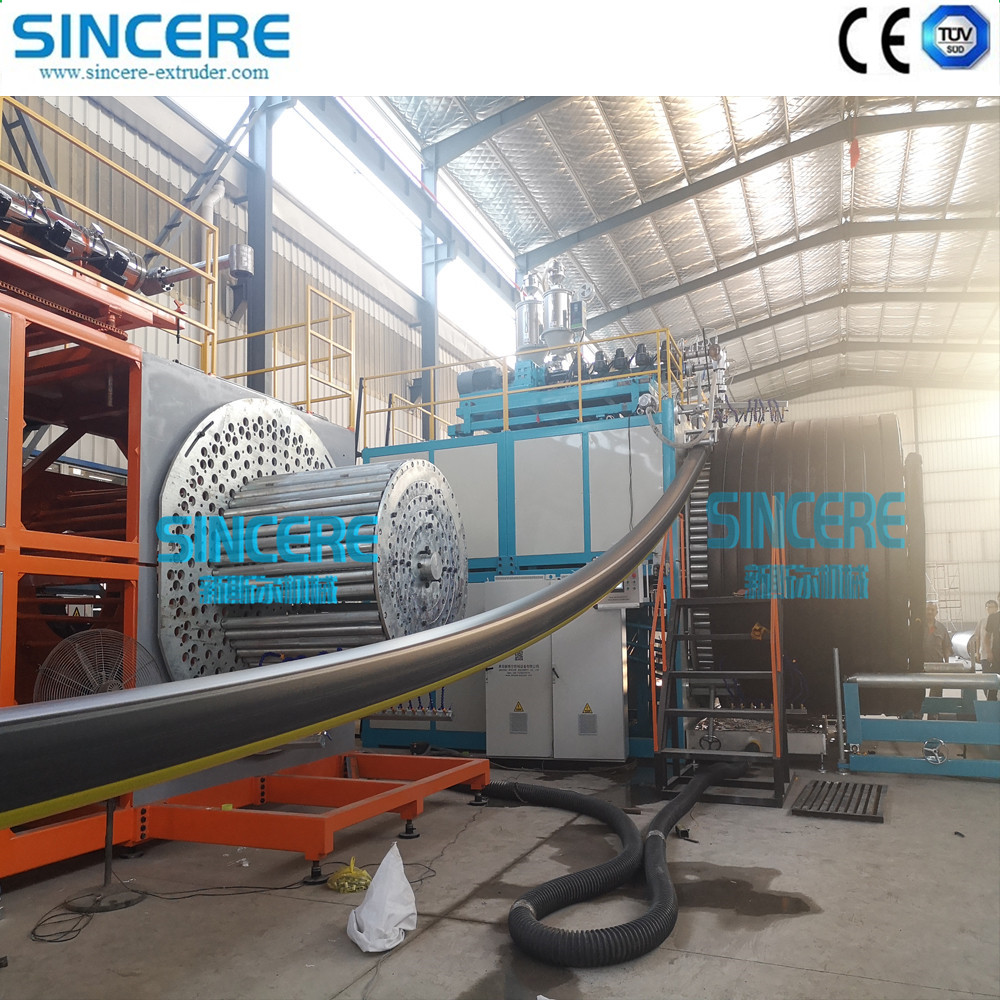

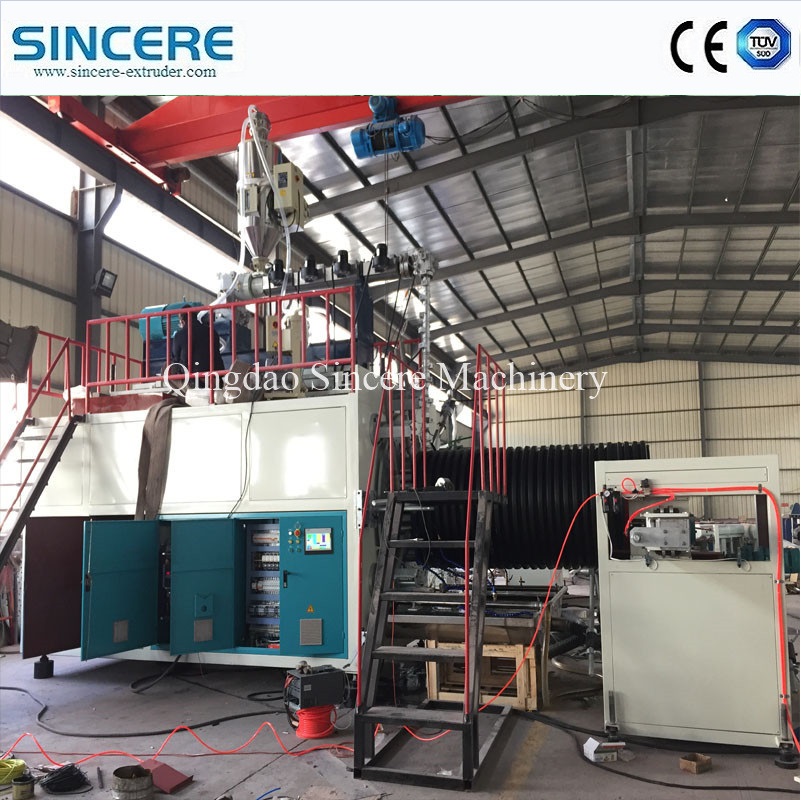

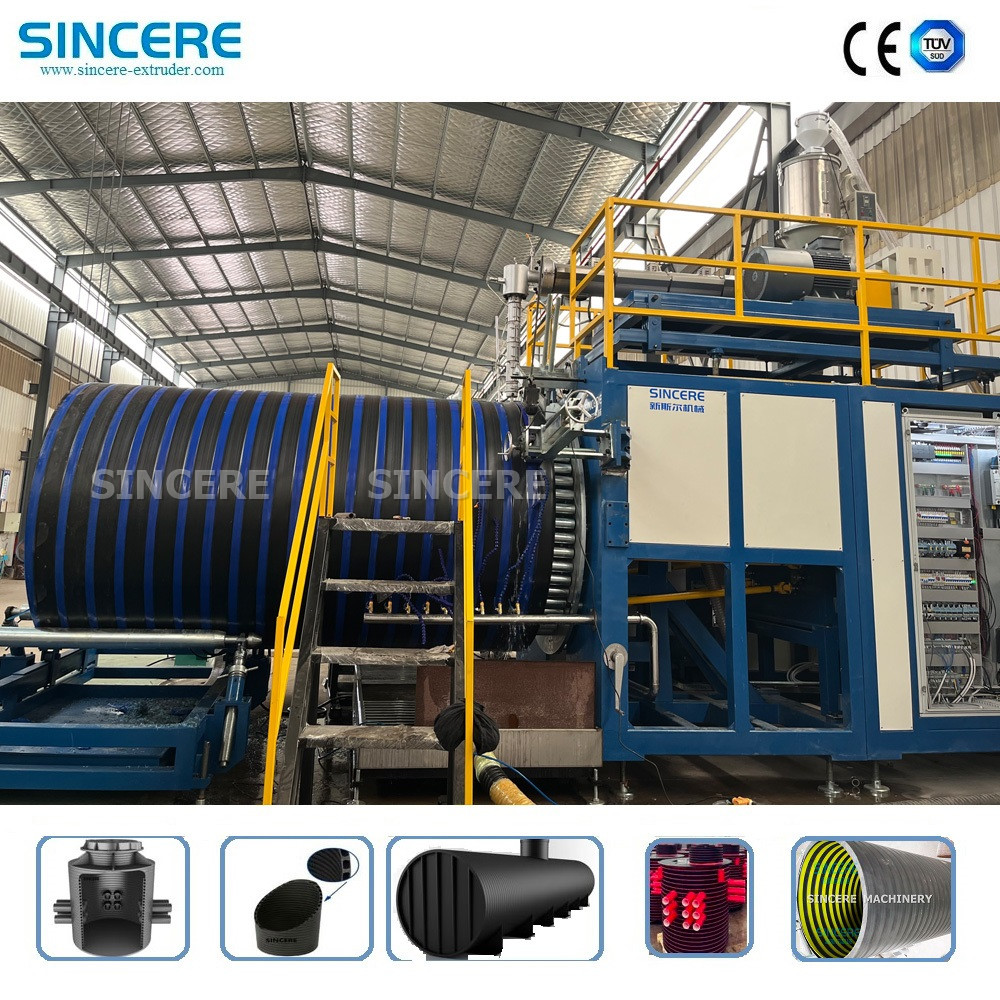

Consists of the inner ribs reinforced spiral winding pipe production line:
1. Profile Single-screw extruder
2. Adhesive single-screw extruder
3.Profile extrusion mould and disc type sizing sleeves
4. Melt extrusion mould and nozzle
5.Vacuum calibration water tanks
6.Spraying water cooling tank
7.Haul-off machine
8.Cutting machine

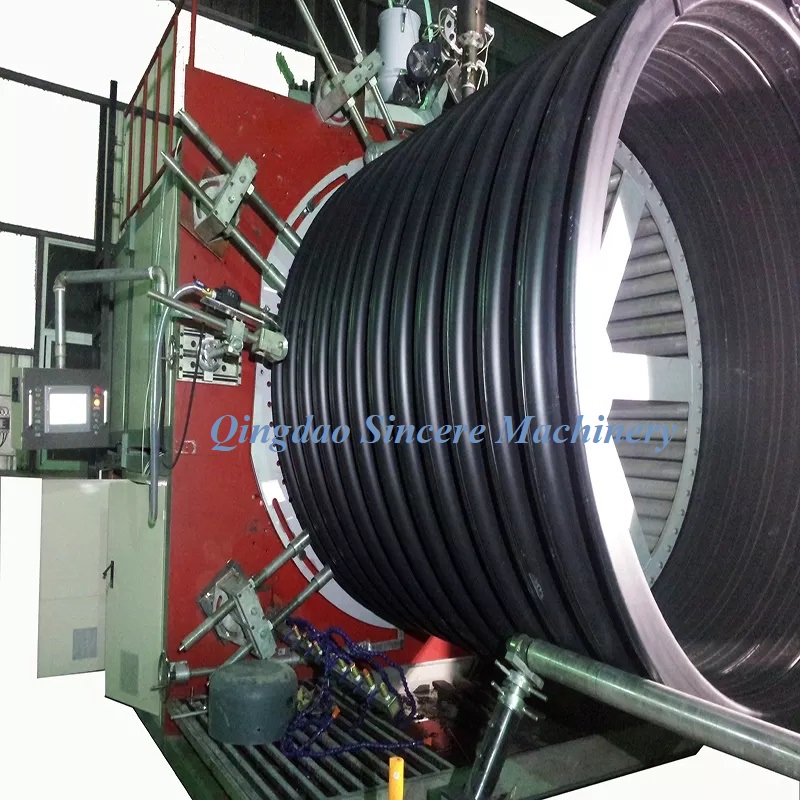

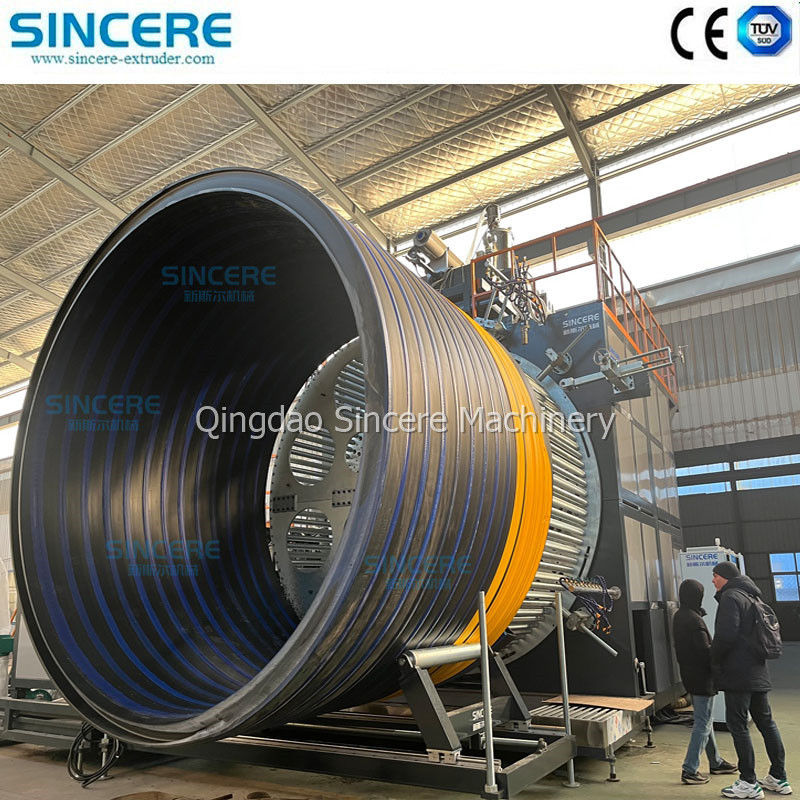

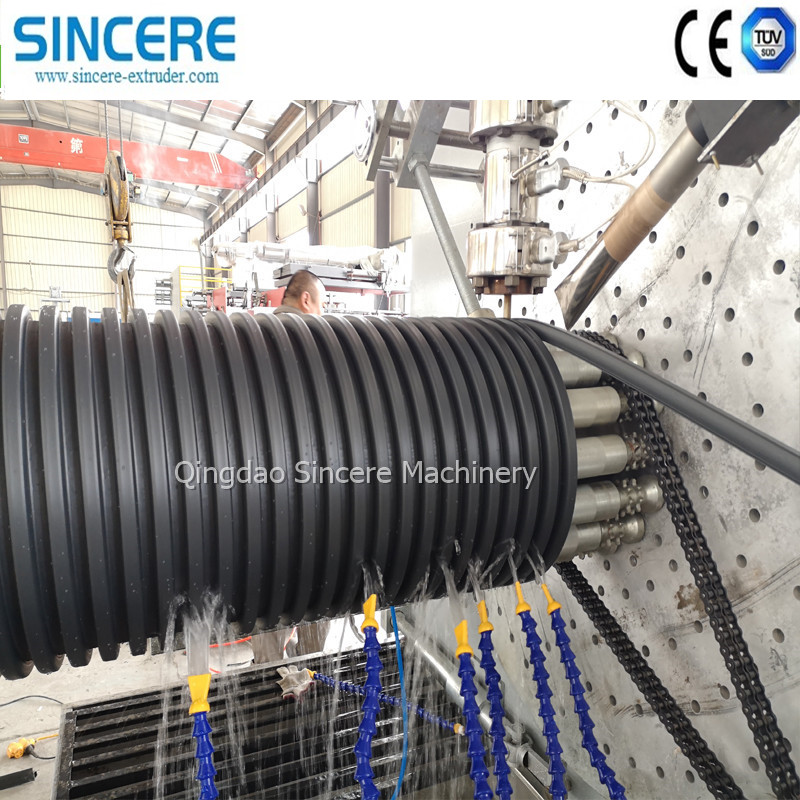

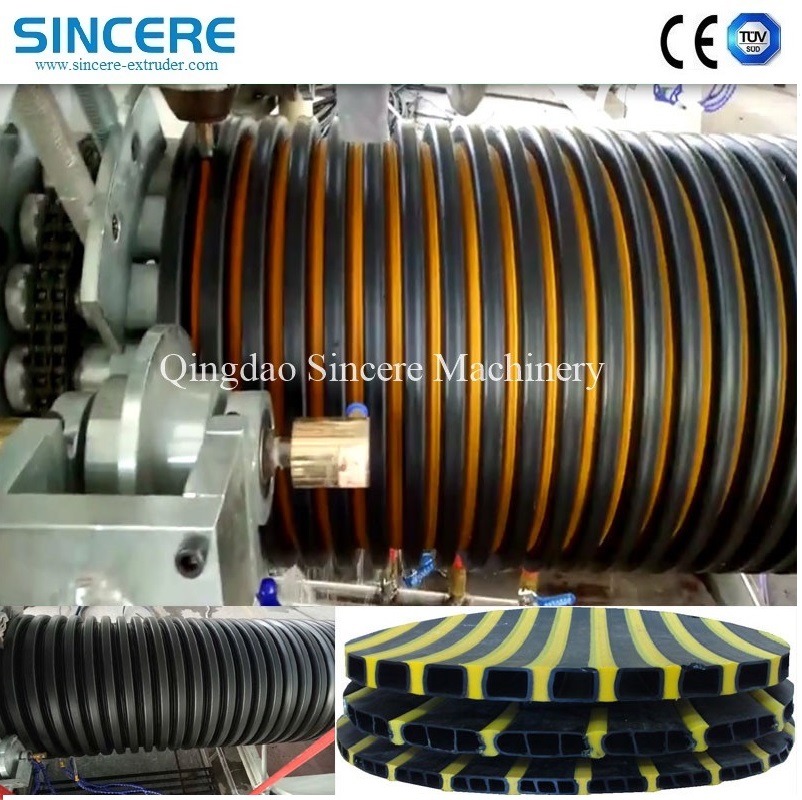

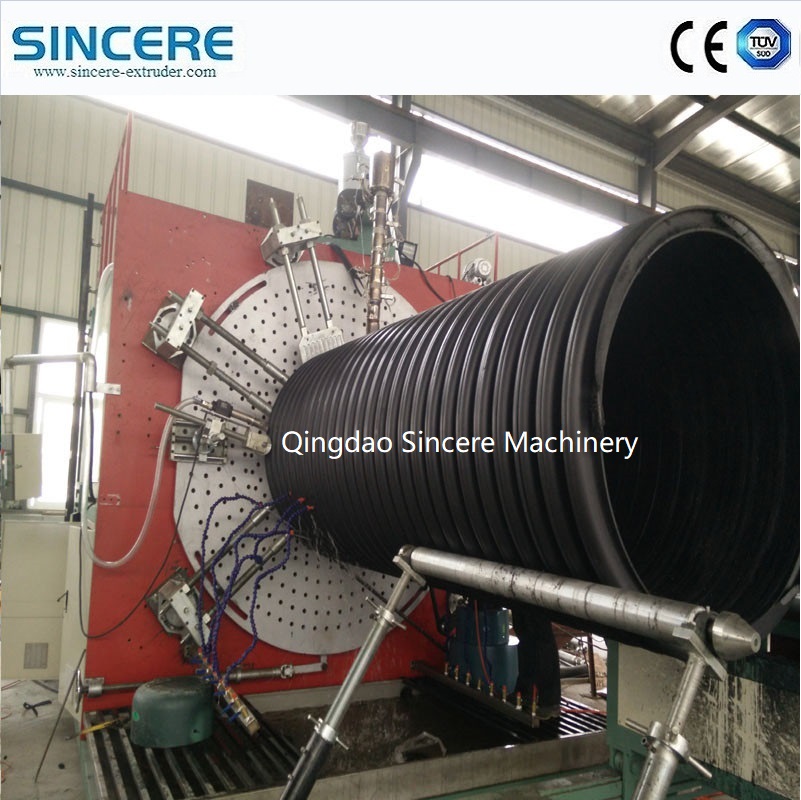

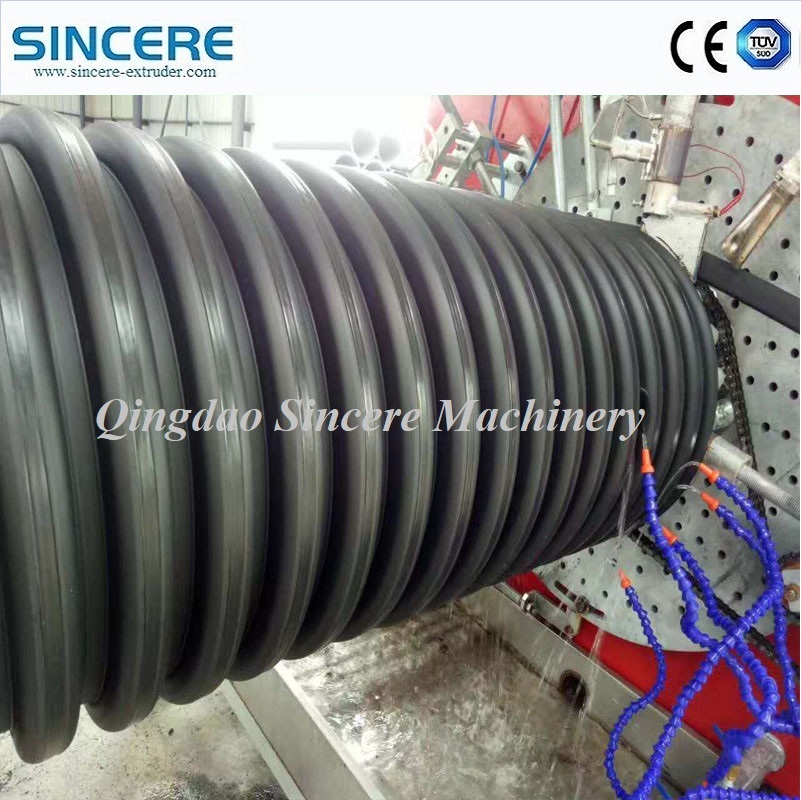

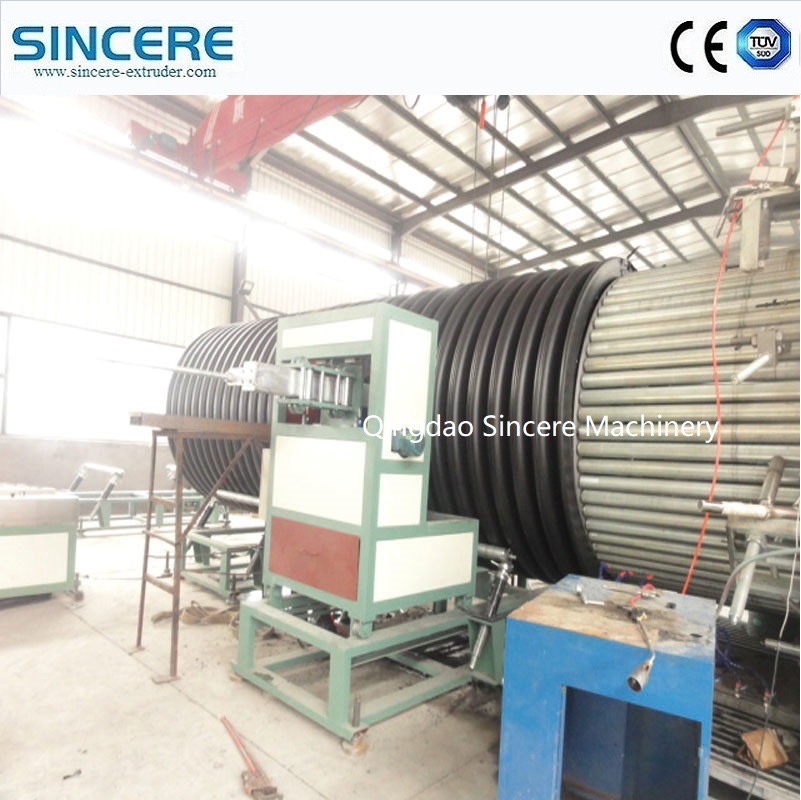

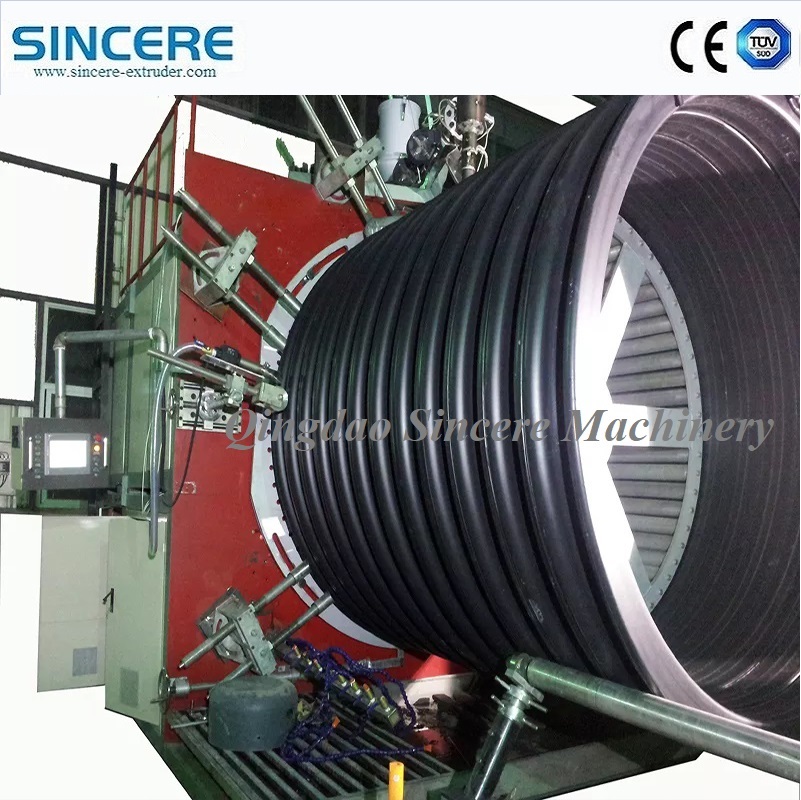

9.Spiral winding forming machine
10.Bracket
11.Electric control cabinet and PLC control system.
12.Welding equipments
For hdpe hollow wall winding plastic wasted pipes, we also provide recycled machines:shredders,crusher,and granulating line.
Single screw granulating line for PP PE.
Two-stage granulationg line for PP PE.
Water cutting type pelletizer for plastic PP PE.
