Product Description:

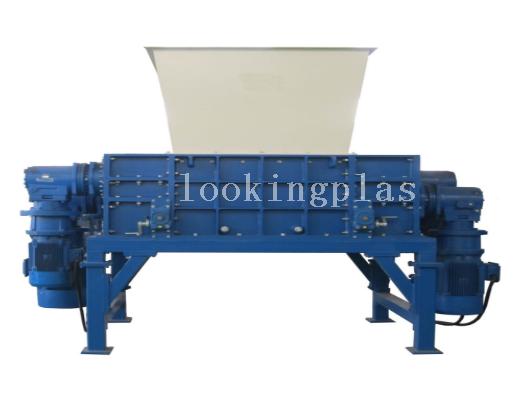

XJG-D Double-shaft shredder for shredding all kinds of soft plastics and rubbers just like, plastic film, greenhouse film, fishing net, plastic bag, ton bag/ jumbo bag, woven bag, nonwoven bag, nonwoven fabric, tires, etc.
HS Code: 84778000
Features:
1. Low rotation rate
2. Low noise and high torque
3. Electrical overloading protective

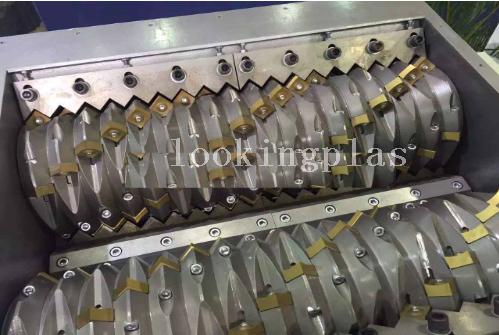

4. Blade hardness at 60-65 by SKD11
5. Hydraulic system, an independent power system, the structure solid, smooth running, feed material easily, high output.
6. PLC program control system, automatically rotating, stop and realize fully automatic operation of equipment, safe and reliable running of the machine.
Main Technical Parameter:
Model | XJG-D600 | XJG-D800 | XJG-D1000 | XJG-D1200 | XJG-D1600 | XJG-D2000 |
Number of Rotary blades | 60 | 78 | 96 | 114 | 156 | 192 |
Shaft rotary speed(r/min) | 65r/min | 65r/min | 60r/min | 60r/min | 60r/min | 60r/min |
NO. of Fixed blades | 4 | 4 | 8 | 8 | 8 | 8 |
Shaft diameter(mm) | 255 | 255 | 300 | 300 | 350 | 500 |
Size of hopper opening(mm) | 1600*1400 | 1600*1400 | 1600*1500 | 1600*1500 | 1800*1600 | 2300*2100 |
Motor power (kw) | 22*2 | 30*2 | 37*2 | 45*2 | 55*2 | 75*2 |
Shredder Capacity (kg/h) | 600-800 | 800-1000 | 1000-1200 | 1200-1400 | 1600-1800 | 2000-2200 |
Machine size(m) | 3.30*1.40*2.2 | 3.4*1.4*2.25 | 3.6*1.50*2.35 | 3.8*1.50*2.45 | 4.8*1.6*2.45 | 5.2*2.1*2.45 |
Machine weight(kg) | 4500 | 5200 | 6000 | 6400 | 7500 | 8600
|
