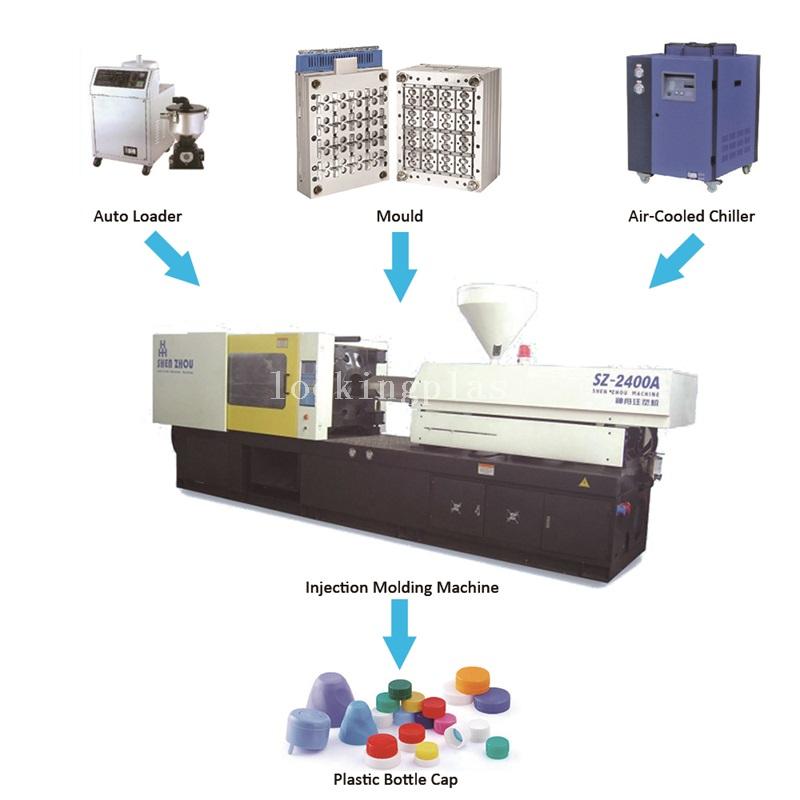

Automatic Plastic PET Bottle Cap Making Machine 1165 Favorites

Product Categories: From 100T to 200T Injection Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：Shanghai

Zhang Jia Gang SHEN ZHOU Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Injection molding machine; PET blow molding machine; injection-blow molding machine; extrusion blow molding machine; plastic mould; downstream equipment.

Get Quotation

Contact Supplier

To：	Chen
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

INJECTION UNIT
ITEM	UNIT	VALUE
SCREW DIAMETER	mm	35	40	45
SCREW L/D RATIO	L/D	24	21	18.7
Theoretical Shot Volume	cm^3	173	226	286
SHOW WEIGHT(PS)	g	158	206	260
INJECTION PRESSURE	Mpa	235	180	142
THEORETICAL INJECTION RATE(PS)	g/s	110	143	181
PLASTICISING CAPACITY	g/s	13.8	19.7	27.1
SCREW TORQUE	N.m	740
MAX.SCREW ROTATE SPEED	r/min	250
INJECTION STROKE	mm	180
CLAMPING UNIT
ITEM	UNIT	VALUE
MAX.CLAMPING FORCE	KN	1300
MAX.OPENING STROKER	mm	400
SPACE BETWEEN TIE BARS	mm	420×420
MOULD HEIGHT	mm	160~440
MAX.DAYLIGHT	mm	840
EJECTOR FORCE	kn	31.4
EJECTOR STROKE	mm	100
EJECTOR QUANTITY	pc	5
OTHER
ITEM	UNIT	VALUE
PUMP MOTOR POWER	KW	13
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	9.2
HEATING ZONE		4
SIZE	m	4.7×1.25×1.85
NET WEIGHT	t	4.3
OIL TANK CAPACITY	L	360
INTERNATIONAL DESIGNATION		1300-410
