使用环境条件  | Environment Condition  |
地点:室内  | Location:Indoors  |
电源供应:无危险区域  | Power   supply : No dangerous area  |
电源:三相四线,380V/3P/50Hz  | Power: 3-phase 4 wires structure,380V/3P/50Hz  |
装机总功率:36KW  | Total   power:36KW  |
平均能耗:20KW—25KW  | Average energy consumption :20KW—25KW  |

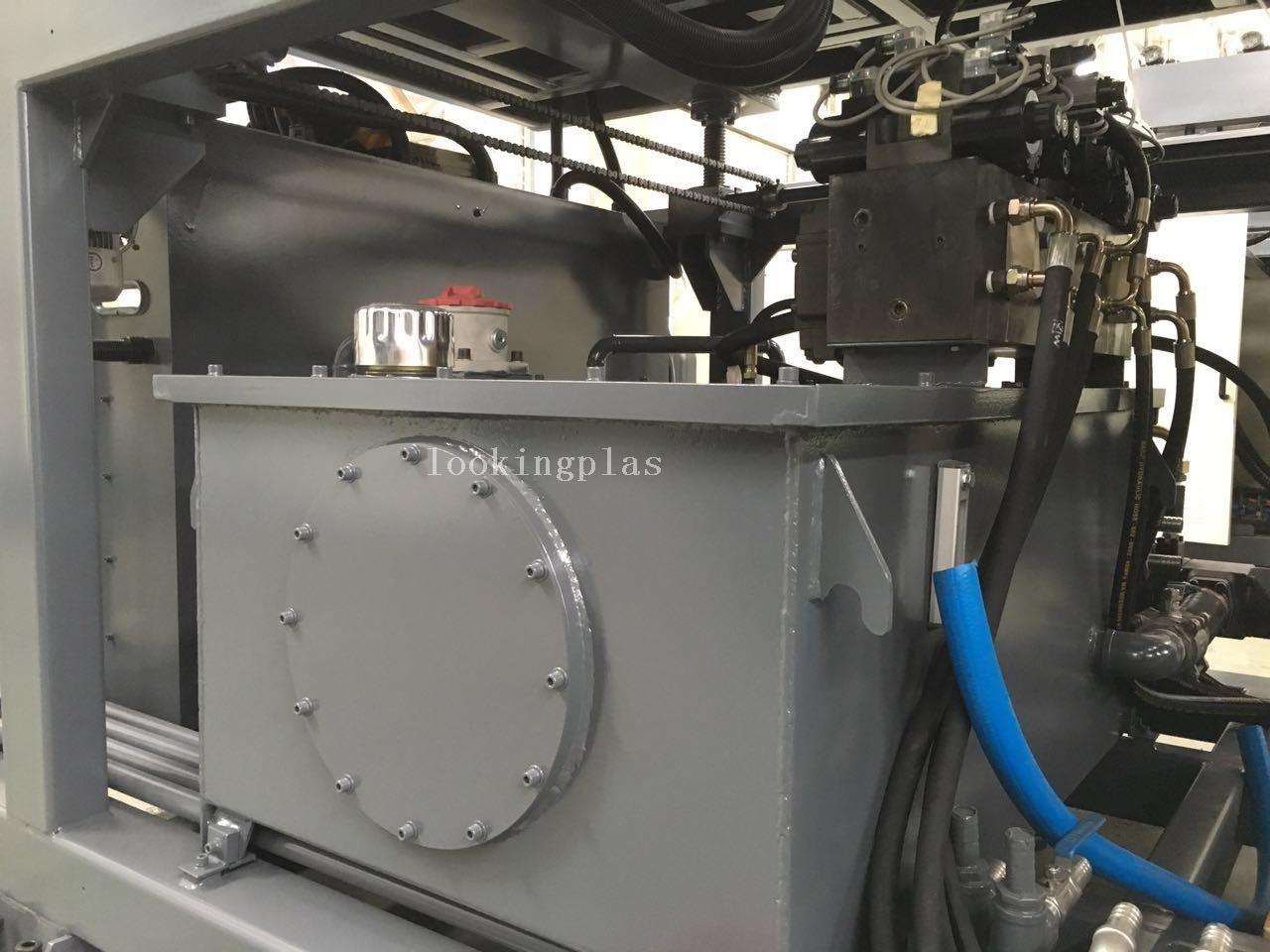

油泵电机功率:7.5KW  | Oil   pump motor power:7.5KW  |
湿度:≤95%  | Humidity degree:≤95%  |
温度:0-35℃  | Temperature:0-35℃  |
冷却水要求:≤20℃, ≥0.3Mpa  | Cooling water:≤20℃, ≥0.3Mpa  |
冷却水用量:5T/H  | Water consumption:5T/H   |

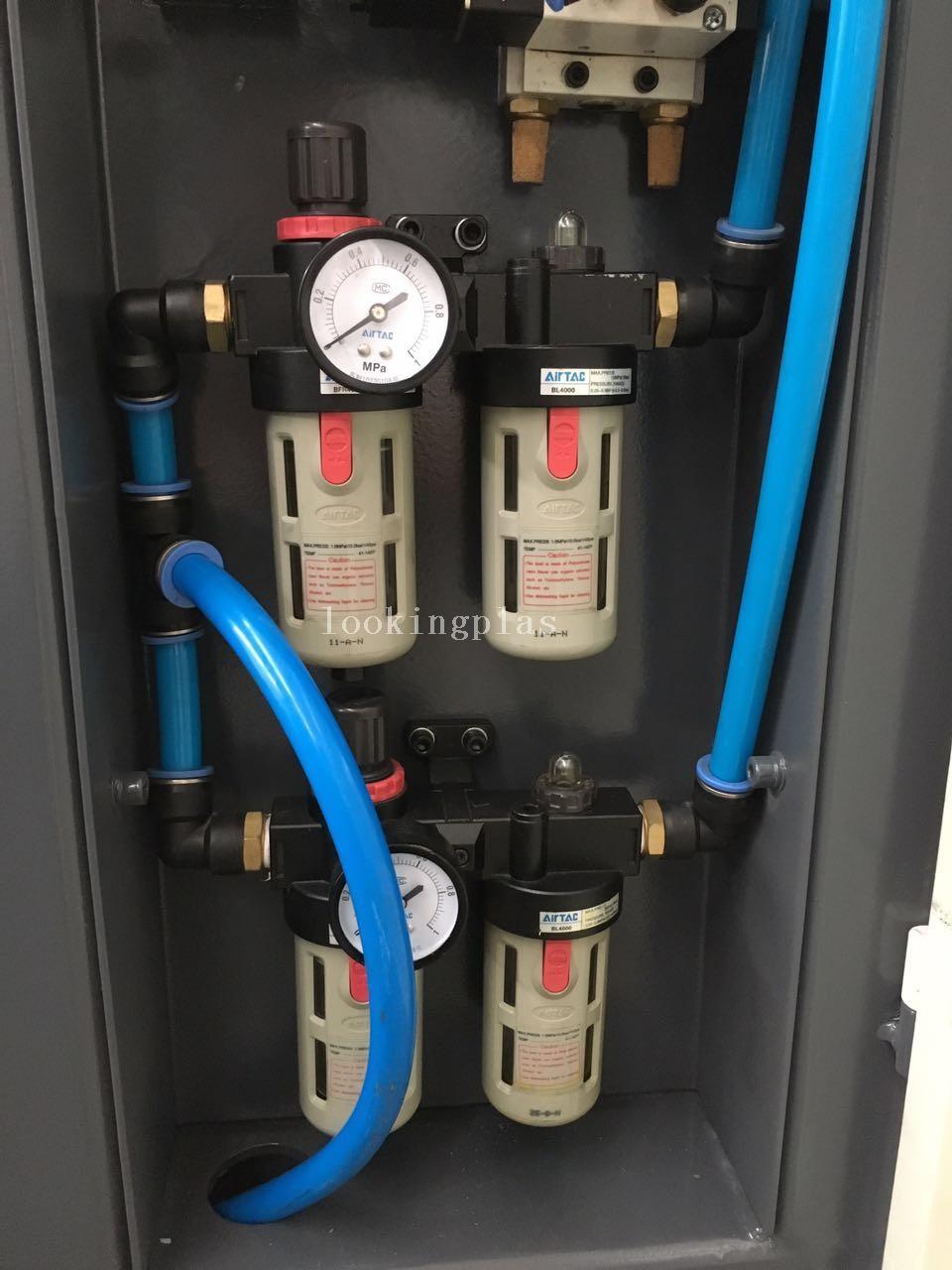

气源压力:0.6Mpa  | Air pressure:0.6Mpa  |
气源排量:24m³/h  | Air consumption:24m³/h  |
使用物料:HDPE/PP  | Suitable   material:HDPE/PP  |
制品规格:2L  | Specifications about the product:   Max container volume: 2L  |
最大塑化能力:70kg/hr-80kg/h  | The max. plasticizing capacity:70kg/hr-80kg/hr  |
备注:挤出量根据加工物料和操作条件的不同可能有相应变化  | NOTE: The output varies according   to the materials and the operation conditions.  |
