| Quotation Validity |
|
| Payment terms | 30% advanced payment, balance payment T/T 10 days before the shipment. |
| Production time |
|
| Delivery | F.O.B. Shanghai, goods loaded into container, packing included |
| Guarantee | 1 year |
| Environment Condition |
|
| Location | Indoors |
| Power supply | No dangerous area |
| Power | 3-phase 4 wires sructure,380V/3P/50Hz |
| Total power | 70KW |
| Average energy consumption | 42KW—45KW |
| Oil pump motor power |
|
| Hydraulic system | Servo pump |
| Humidity degree | ≤95% |
| Temperature | 0-35℃ |
| Cooling water | ≤20℃, ≥0.3Mpa |
| Water consumption | 5T/H |
| Air pressure | 0.6Mpa |
| Air consumption | 24m³/h |
| Suitable material | HDPE/PP |
| Max container volume: | 5L |
| The max. plasticizing capacity | 90kg/hr |
| NOTE | The output varies according to the materials and the operation conditions. |
| Equipment list | JWS80/25 Single screw Extruder 1set |
| JWS35/25 Single screw Extruder 1set |

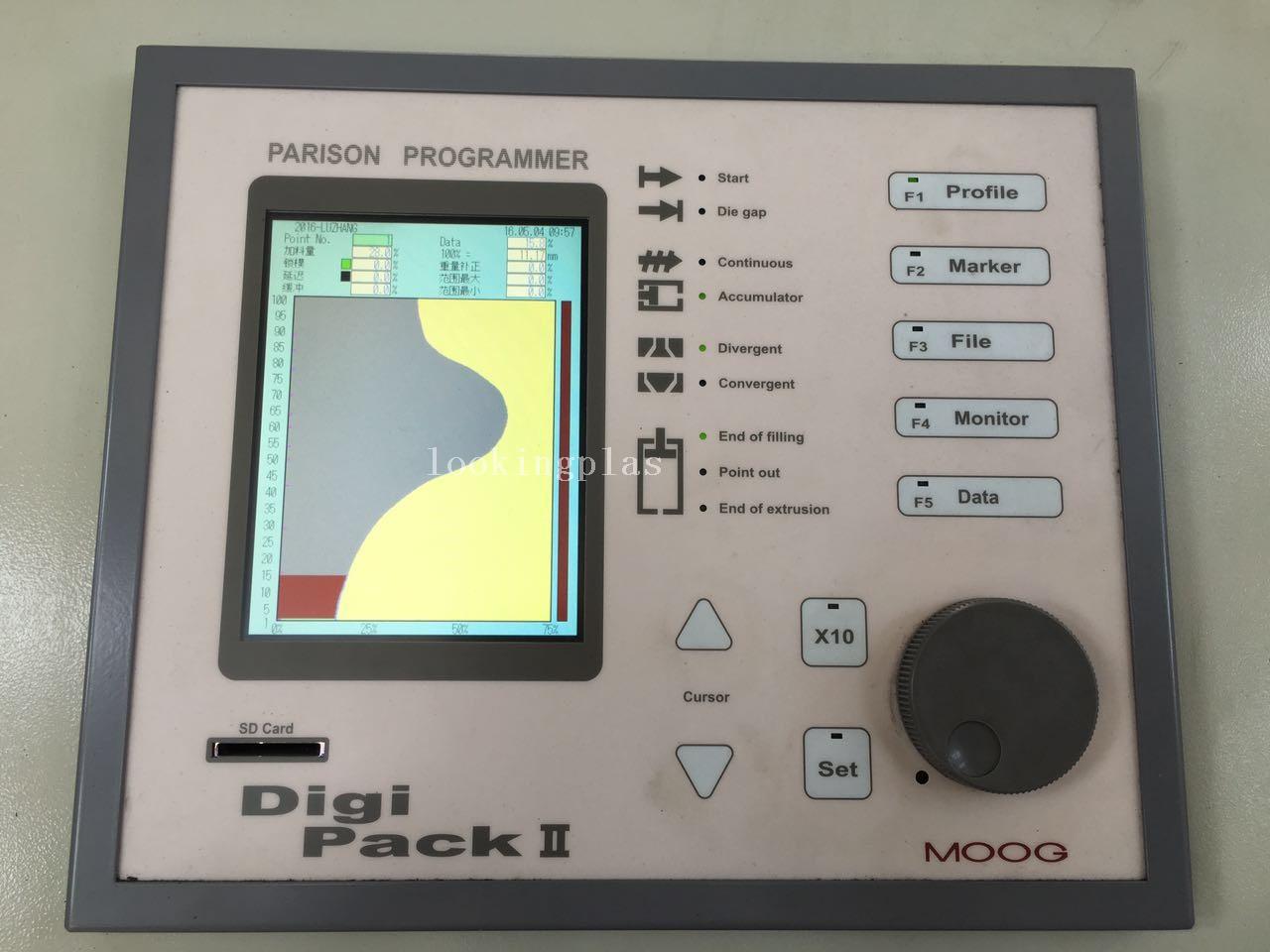

| MOOG100 Parison Controller 1Set |
| Blowing pin device 2set |
| Continuous type Die head 1set |
| Mold open and close device 2set |
| Take out robot 2set |

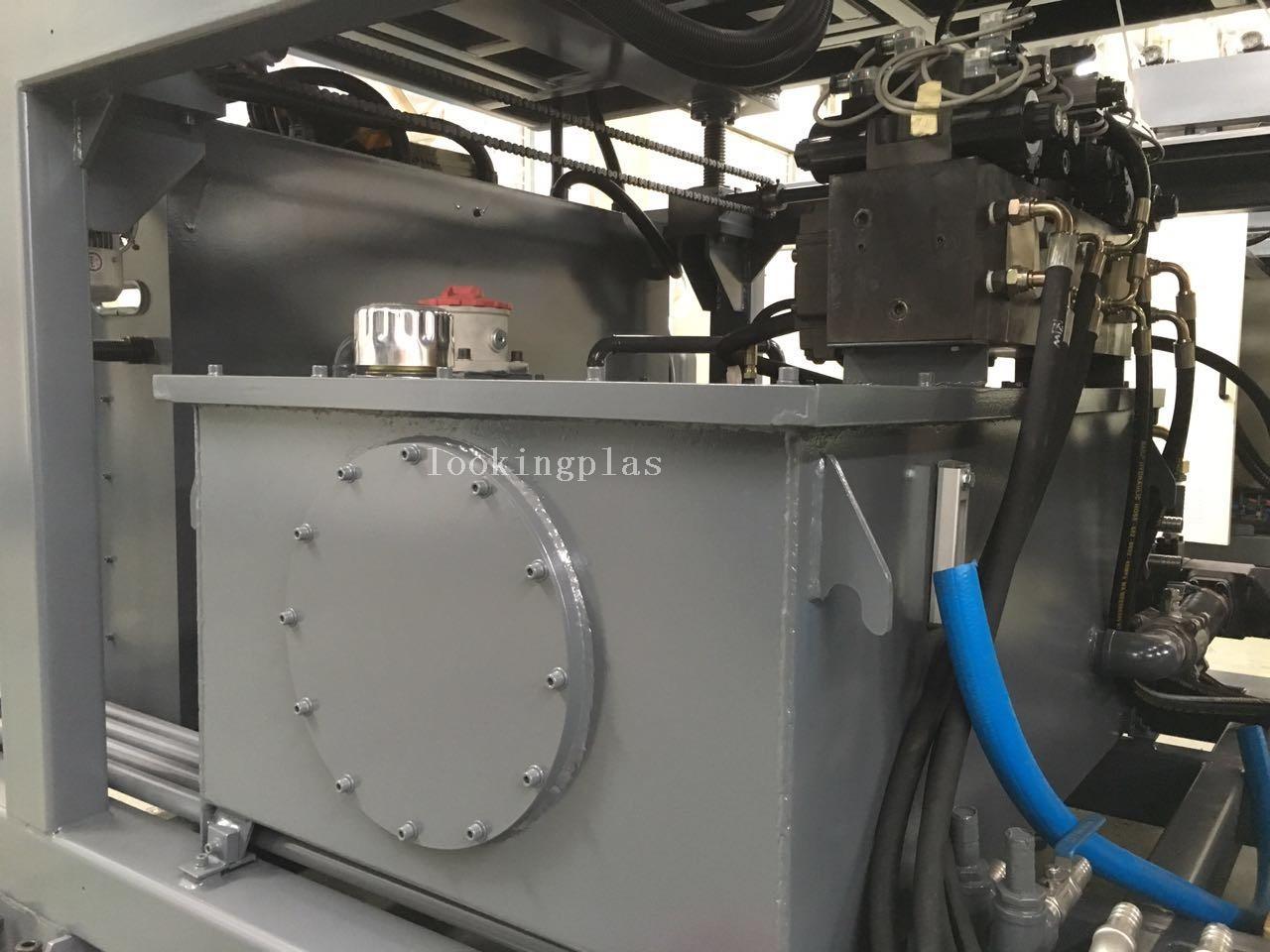

| Hydraulic system 1set |
| Pneumatic system 1set |
| Electrical system 1set |
| Specifications of the Production Line |
|
| JWS80/25 Single screw Extruder |
| Screw |
|
| Diameter | 80mm(double station) |
| L/D | 25:1 |
| Material | 38CrMoAlA |
| Treatment | Nitriding heat-treatment |
| Barrel |
|
| Material | 38CrMoAlA |
| Treatment | Nitriding |
| Heating control zones | 4 Zones |
| Heating power | 3.7KW×4 |
| Cooling system | By blower fan |
| Cooling power | 0.25KW×4 |
| Gearbox |
|
| Material of the body | QT225 |
| Gear type | Helical gears |
| Material of the gear | 20CrMnTi |
| Heat treatment of the gear surface | Quenching |
| Bearings Chinese | famous bearing |
| Lubricating system | Press system |
| Cooling System | Equipped with separated Cooling System |
| Feeding block |
|
| Water circled cooling system |
| Material | Q235 |
|
|
| Driving motor | AC motor MADE IN CHINA |
| Power | 37KW |
| Control System | ABB inverter |
| Auto loader300Kg/h |
|
|
|
|

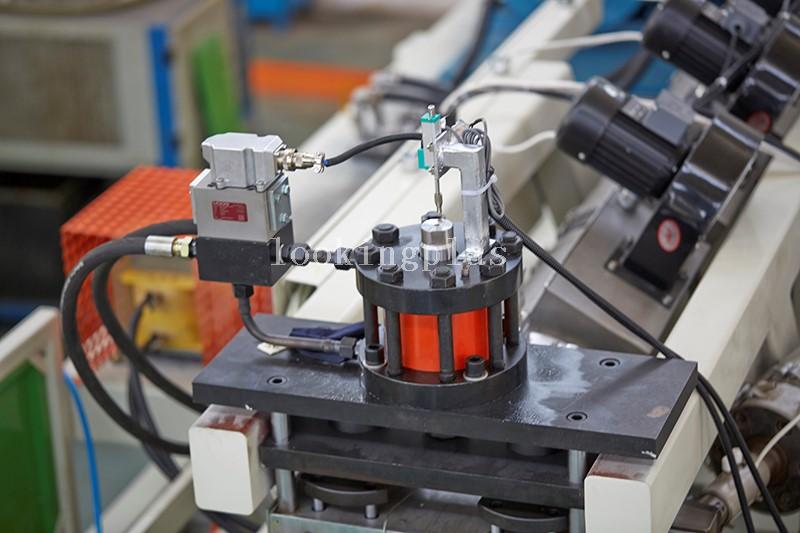

| Die Heard | Continous type Die head
(Including Heating Ring ) |
| Heating Control Zone | 4 zones |
| Heating Power | MAX 9KW |
| Material of the die | 38CrMoAlA |
|
|

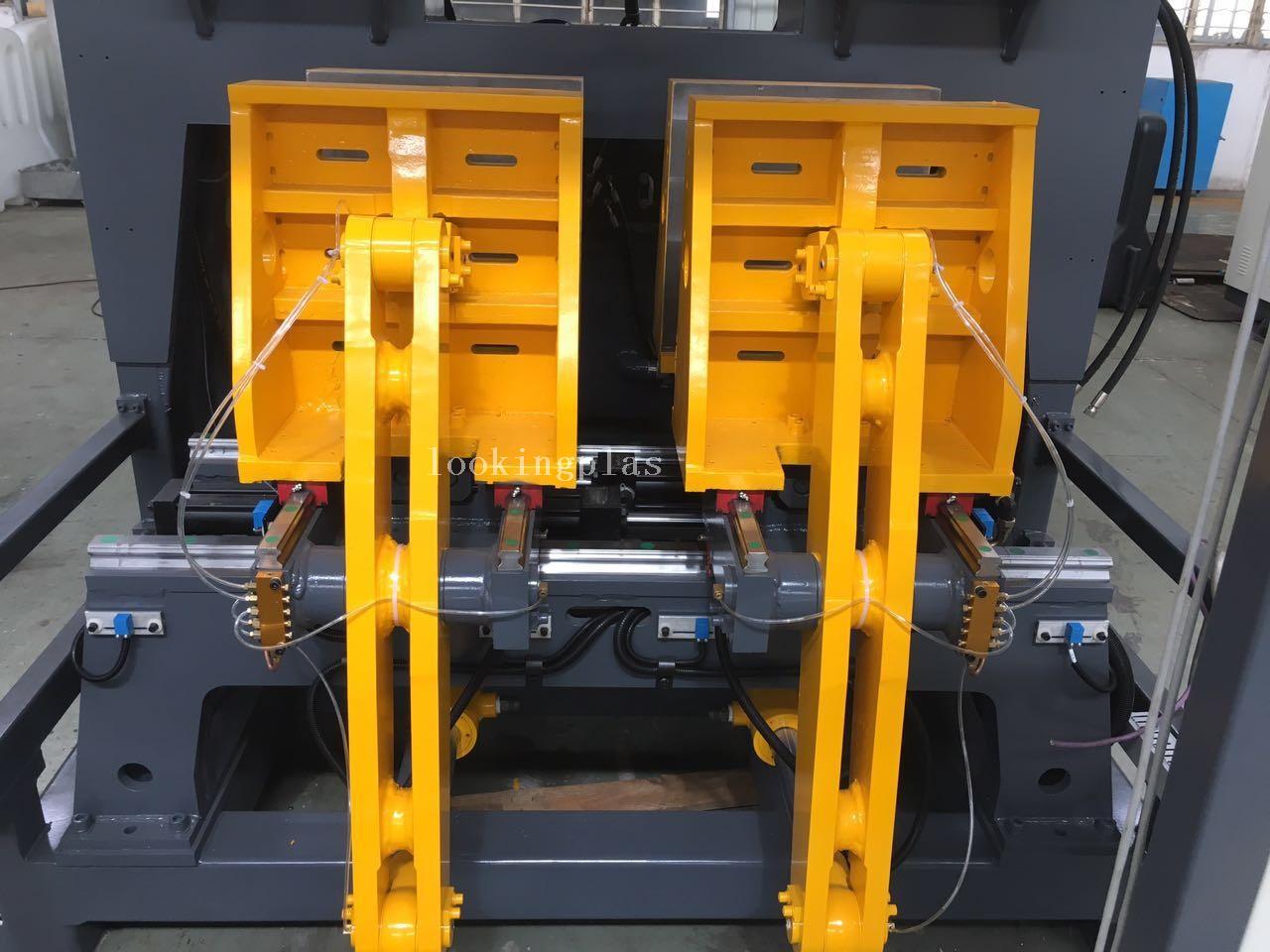

| Mold Opening and Clamping Device |
|
| Platen size | 350mm×400mm |
| Max. mould size | 360mm×400mm |
| Max. die pin diameter | 145 mm |
| Spaces between platens | 150mm×510mm |
| Platen moving stroke | 450mm |
| Clamping force | 70 KN |
| Clamping way driven | by hydraulic |
