| SJSZ65 conical twin-screw extruder |
Material of screw and barrel | 38CrMoALA |
Brand of screw and barrel | Made by Zhejiang Guangyou |
Heat treatment hardness | Nitriding treatment depth of barrel: 0.5-0.7mm, hardness (HV) 740-1100. Inner surface roughness Ra≤0.8um |
Screw diameter (mm) | 65/132 |
Rotating speed of screw | 1-36 rpm |
Power of main motor/feeder motor | 37KW/0.75KW |
Manufacturer of main motor/feeder motor | Siemens / Shanghai Honest |
Vacuum pump power | 2.2KW |
Extrusion capacity | 80-250kg/h (according to material fomulation) |
Cooling mode of screw | Distilled water cooling inside the screw |
Number of electric heating zone | 4 heating zones for barrel, 1 heating zone for conflence part |
Connecting mode of extruder and die | Flange connecting |
Main motor /feeder motor inverter | Made by INVT |
Temperature controller | Made by OMRON |
Electric contactor | Made by Siemens |
Gearbox | horizontal type gearbox, made in Jiangyin. Hard surface helical teeth, material: 20CrMoTi, with carburization and grind treatment; Material of gear in distribution box: 38CrMoALA, nitrogen treated. Material of shaft: 40Cr |
Cooling mode of electric heating zone | Air blast cooling, blower motor: 0.55KW×2, 0.25KW×1 |
Electric heater of extruder barrel | cast aluminum heater with stainless steel shell, heating power: 24KW |
Power of automatic loader | 0.75KW, screw loader |
| Both synchronized and separated adjustment are available for main motor speed and feeder speed. Auto emergency stop is equipped against over current. |

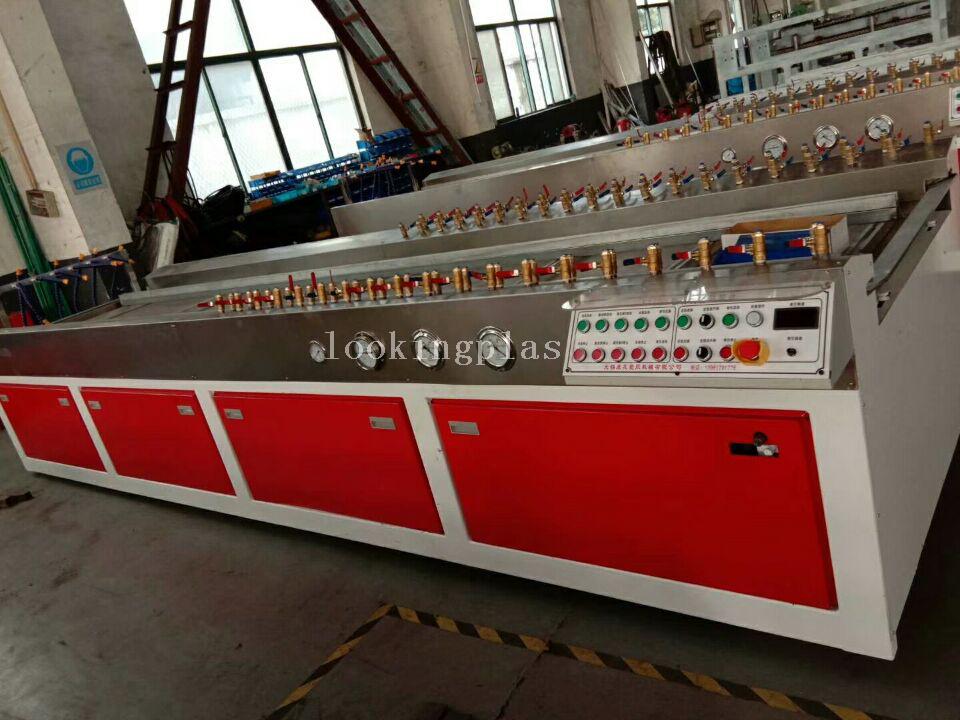

| ZDM600 vacuum calibration table |
Number of vacuum pump | 2 |
Power of vacuum pump | 5.5KW x 1, 7.5KW x 1 |
Air suction capacity of vacuum pump | 165m3/h |
Max vacuum degree | - 0.09 Mpa |
Effective length of calibration table | 5900mm |
Number of vacuum hose connectors | 80 pcs (40 pcs red, 40 pcs yellow) |
Power of water pump | 2.2KW x 1 |
Material of flow channel | 1Cr18Ni9Ti stainless steel |
Adjusting mode of calibration table | forward-backward movement by motor, up-down, left-right movement by manual. |

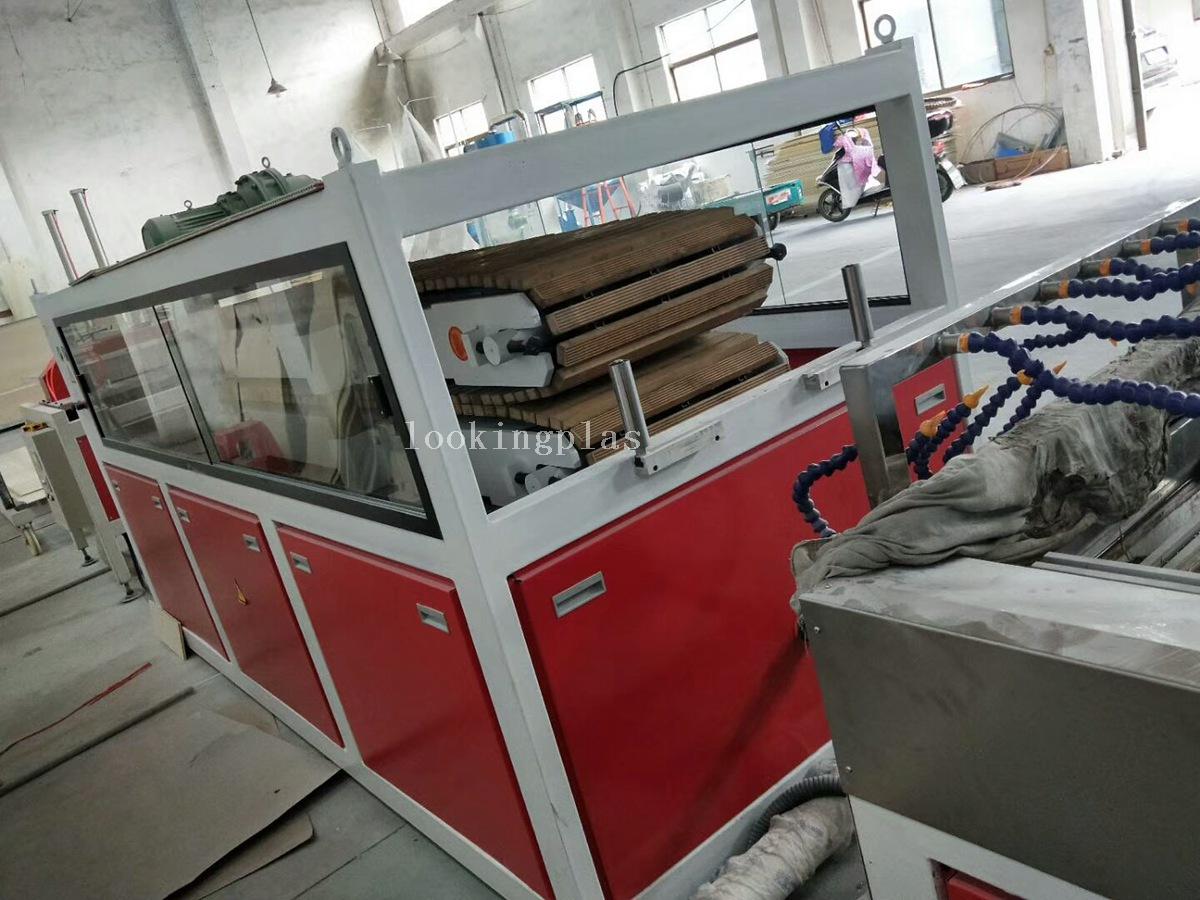

| QYM600 haul-off machine |
Max hauling power | 40000N |
Max hauling speed | 0.1-2 m/min |
Width of rubber pad | 600 mm |
Effective length of caterpillar | 2800mm |
Motor power | 3KW x 2 |
Motor inverter | Made by INVT |
Central height | 1010±50mm |
|
|

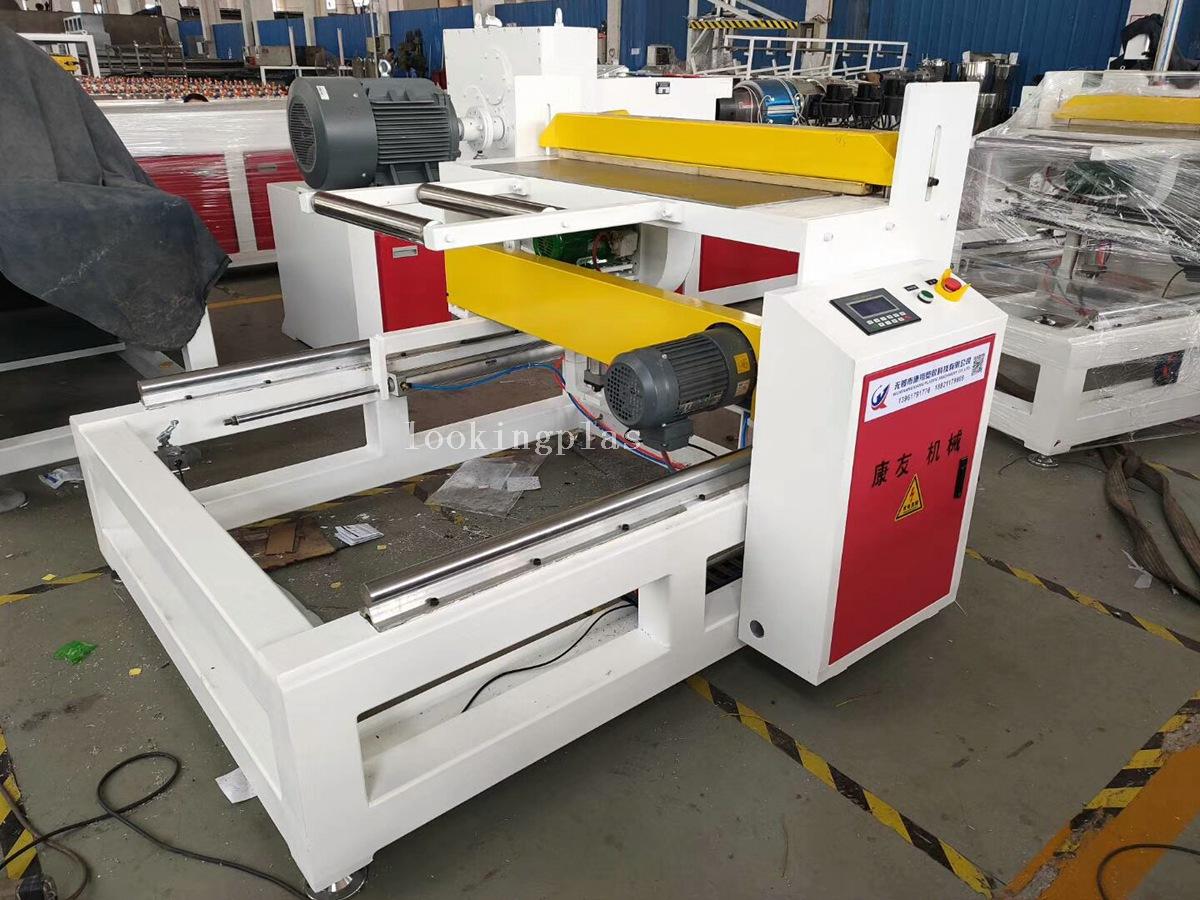

| QGM600 cutting machine |
Cutting mode | By saw blade |
Direction of cutting | horizontal cutting from left to right |
Cutter motor power | 2.2KW |
Motor power for horizontal moving | 0.55KW |
Dust suction unit | Bag type |
Max size of cutting | 600x65 mm |
|
|
| Automatic stacker |
Power source of stacker | Cylinder |
Material of tilting plate | 1Cr18Ni9Ti stainless steel |
Control part | PLC programming control, using photoelectric sensor for auto stacking |
Air pressure required | 0.5 Mpa |
|
|
Other information |
Power supply | 380V, 3 phaze, 50Hz |
