Typical Features of 1 to 6 Color Automatic Soft Tube Rotary Table UV Screen Printing Machine HY-R320

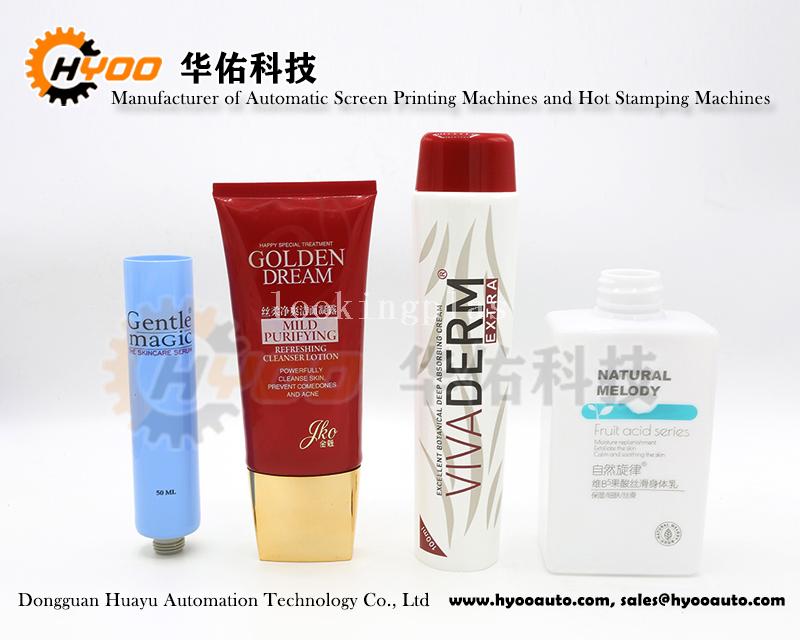

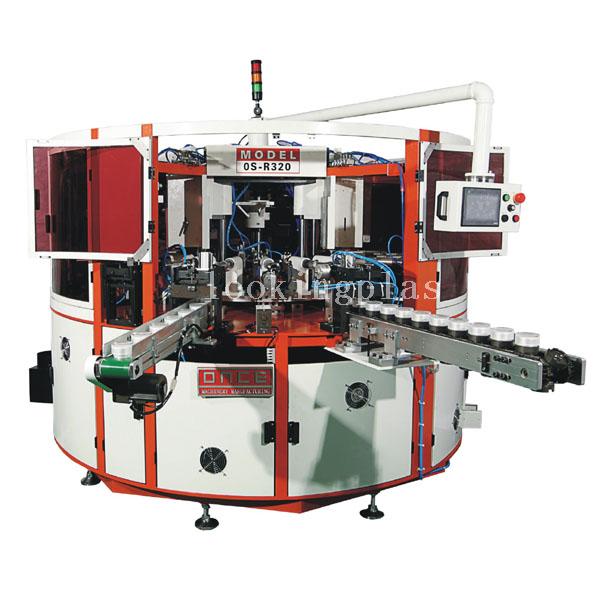

HY-R320 is a fully automatic UV cosmetic tube, small glass container, plastic jar and air/oil filter screen printing machine that offers increased productivity and unrivalled value for the money.The HY-R320 is driven by a SANKYO rotary positioning drive system and features a SITI main drive motor with a barrel cam.
The UV screen printing inks are automatically cured with high powered UV lamps positioned after each printing station. After loading of the flexible or rigid tubes there is a pre-flame treating station and de-ionizing / cleaning station (optional) to ensure quality printing results with fewer defects.
The HY-R320 system is equipped with intelligent UV curing units which are outfitted with high intensity mercury UV bulbs.
Main Specifications of 1 to 6 Color Automatic Soft Tube Rotary Table UV Screen Printing Machine HY-R320
| Model NO.: | HY-R320 |
| Print product size: | dia10-60, L30-250mm |
| Max. print area: | (10-80mm) x (20-200mm) |
| Max. printing speed: | 60 pcs/min |
| Registration tolerance: | +/- 0.2 (except product tolerance) |
| Screen Drive: | Servo motor driven |
| Print Station Drive: | Servo motor driven |
| Flame treating system: | 1 unit |
| Print head: | 3 units |
| Stations: | 20 stations |
| UV system: | 3 unit Fusion UV system |
| UV lamp power: | 1.8 KW/UNIT |
| Deionizing device: | 1 unit CIMCOR Brand |
| Motor: | ITALY SITI |
| Control system: | OMRON PLC & Touch Screen |
| Pneumatic parts: | Japan SMC |
| Electrical supply: | 380V/480V 3phase 50Hz/60Hz |
| Air requirement: | 6-8bar |
| Power consumption: | 15 KW |
| Machine dimension (LxWxH): | 5000 x 2800 x 2350 mm (including electric cabinet) |
| Crated size(LxWxH): | 2300 x 2300 x 2350 mm |
| Weight: | 3500 KG |
| Crated weight: | 3800 KG |
Notes: Specifications are subject to change without further notification, please contact with Huayu Automation before ordering.
