Single-plate hydraulic screen changer
Features
Pressure control system
Filtration area diameter ranges from ø70-ø320
Can work at high temperature≤300℃
Can work at high pressure 25MPa-30MPa
Having safety cover
Introduce

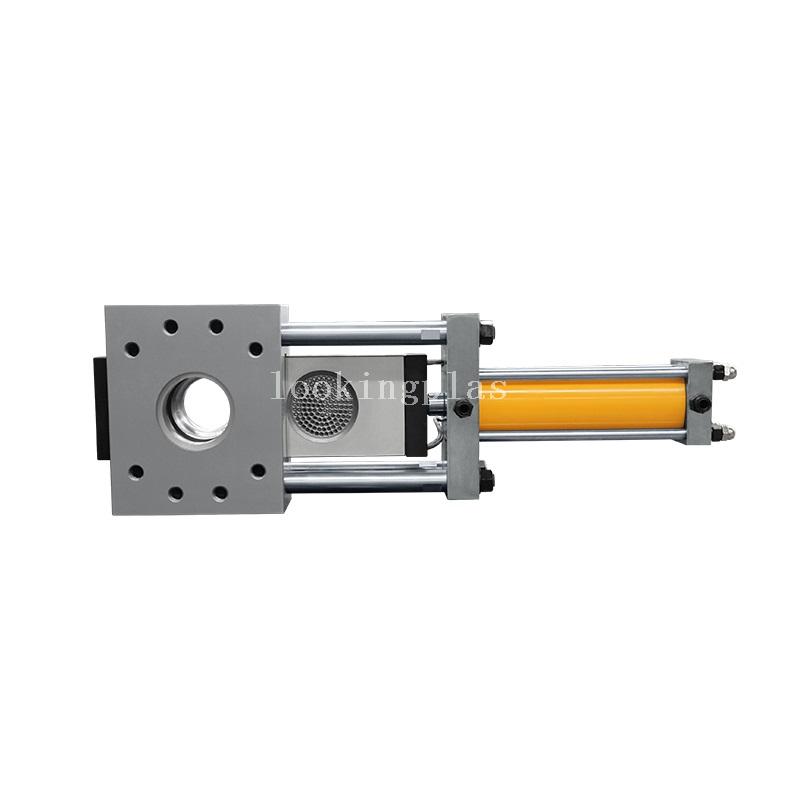

Single-plate hydraulic screen changer
It is composed by one plate with 2 pieces filter screen, which can move in one second to achieve screen changing process quickly and smoothly. It is a highly cost effective and widely used quick and non-stop screen changer.
Features
1. adopt overall structure, having small size and short flow channel, can be suitable for different standards of extruders.
2. pressure driven sealing technology, the seal gap can be compensated automatically to meet high extrusion production of any polymer material without stopping and leakage.
3. the double-station fast network changing time is lower than 2 seconds.
4. at high temperature and pressure condition, no effect with its performance.
Application
1.Granulation production
2. Pipe production (PE/PP/PPR, ETC. all kinds of plastic pipes, such as drain pipes, gas pipes, bellows, carbon bellows, steel strip wound pipes, drip irrigation belts…)
3. Film blowing production
4. Production of plates and sheets
5. Production of hollow products
6. Production of cast film and cast film
Technical parameter
Type | Screen size | Heat power (kw) | Capacity (kg/h) |
Dia(mm) | Area (cm2 ) |
GY-SP-70 | 70 | 38 | 3.5-5.8 | 75-120 |
GY-SP-100 | 100 | 78 | 4.5-6.8 | 130-350 |
GY-SP-120 | 120 | 113 | 5.2-7.2 | 200-550 |
GY-SP-150 | 150 | 176 | 6.5-8.5 | 350-800 |
GY-SP-180 | 180 | 254 | 7.6-9.5 | 450-1250 |
GY-SP-200 | 200 | 314 | 8.5-11 | 550-1500 |
GY-SP-250 | 250 | 490 | 9.5-12 | 800-2500 |
GY-SP-300 | 300 | 706 | 11.5-15.5 | 1200-3500 |
GY-SP-320 | 320 | 803 | 13-17.5 | 1500-4000 |
